>>>>>型号:IS200JPDMG1A PCB组件 控制模块内的三重冗余控制配置
【功能描述】
该IS200JPDMG1A是通用电气制造的PCB组件，用于Mark VI系统。 Mark VI 是 Speedtronic 燃气轮机和蒸汽轮机管理系列的一部分，该系列已使用数十年。MKVI 是该系列中最先进的产品之一，包括以太网通信、控制模块内的三重冗余控制配置和 HMI 操作员界面等功能，所有这些都围绕在 Windows 平台上运行的 PC 构建。

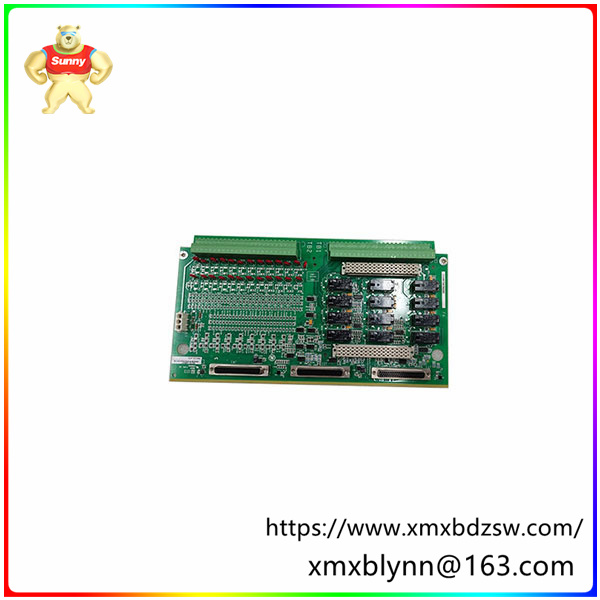

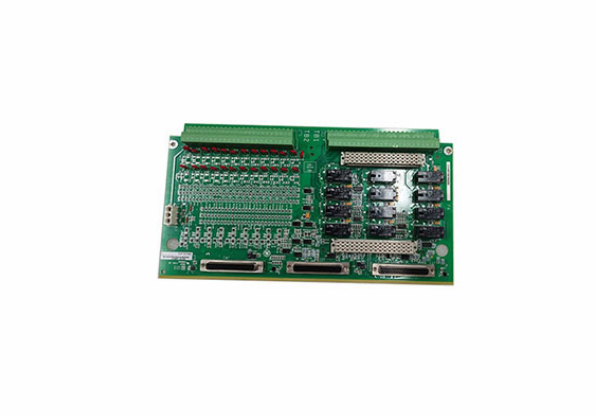

正如其行业昵称JPDM所揭示的那样，IS200JPDMG1A是一个配电板。 该板由两个 50 针连接器 （P1/P2.） 和 12 个保险丝组成，这些保险丝分布在三条线路中。该板具有一个 DC62 母连接器 （JA1），可与 PPDA I/O 包结合使用。IS200JPDMG1A板有两个接线端子，它们分别放置在PCB上彼此相对的两侧。这些接线端子可接入三条独立的电源总线。位于接线端子上的每个螺钉的最大输入为 35 安培。IS200JPDMG1A共有13个插头，包括3个9位插头、7个2位插头和3个6位插头。该板还包括：
四个压敏电阻
三个电感线圈
晶体管
各种电阻器
和众多电容器
该IS200JPDMG1A采用DIN导轨安装。在安装尺寸方面，这款配电板相对较小，为 6.5 英寸 x 7 英寸。GE出版物GEI-100613将提供有关JPDM板的规格、诊断、操作和安装的更多信息。
【英文介绍】
The IS200JPDMG1A is a PCB component manufactured by General Electric for use in Mark VI systems. The Mark VI is part of the Speedtronic gas turbine and steam turbine management series, which has been in use for decades. The MKVI is one of the most advanced products in the family and includes features such as Ethernet communication, triple redundant control configuration within the control module and an HMI operator interface, all built around a PC running on the Windows platform.
As its industry nickname JPDM reveals, the IS200JPDMG1A is a switchboard. The board consists of two 50-pin connectors (P1/P2.) and 12 fuses, which are distributed in three lines. The board has a DC62 female connector (JA1) that can be used in combination with PPDA I/O packages. The IS200JPDMG1A board has two terminals, which are placed on opposite sides of the PCB. These terminals can be connected to three separate power buses. The maximum input for each screw located on the terminal is 35 amps. The IS200JPDMG1A has a total of 13 plugs, including 3 9-bit plugs, 7 2-bit plugs and 3 6-bit plugs. The board also includes:
Four varistors
Three inductors
transistor
Various resistors
And numerous capacitors
The IS200JPDMG1A is mounted with DIN rail. In terms of mounting size, this switchboard is relatively small at 6.5 inches x 7 inches. The GE publication GEI-100613 will provide more information on the specification, diagnosis, operation, and installation of JPDM boards.
