☆型号：VMIVME-7750-734 CPU 主板 支持 512K 高速缓存
【产品详情】
产品编号：VMIVME-7750-734
型号：VMIVME-7750-734

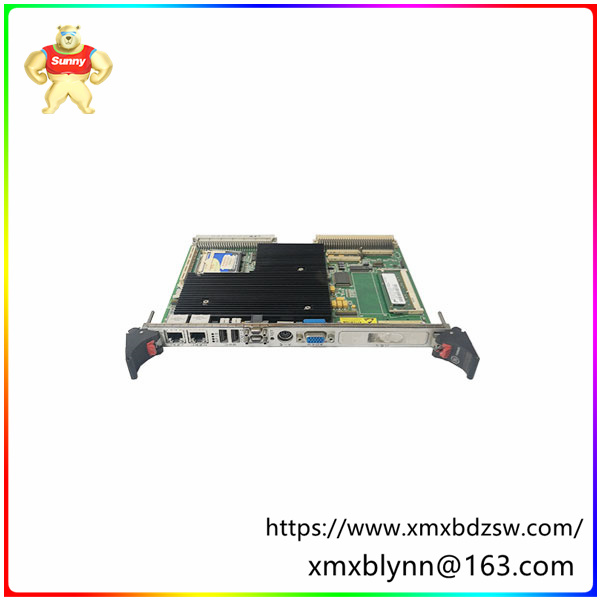

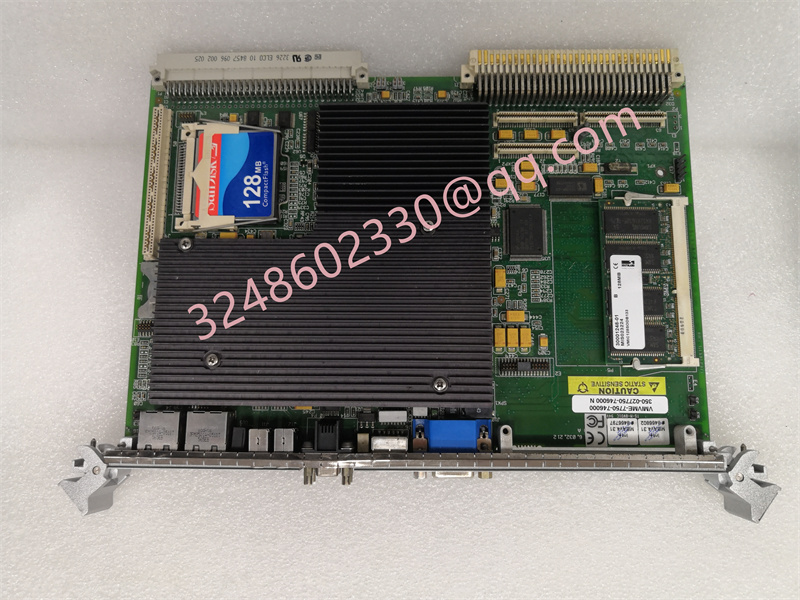

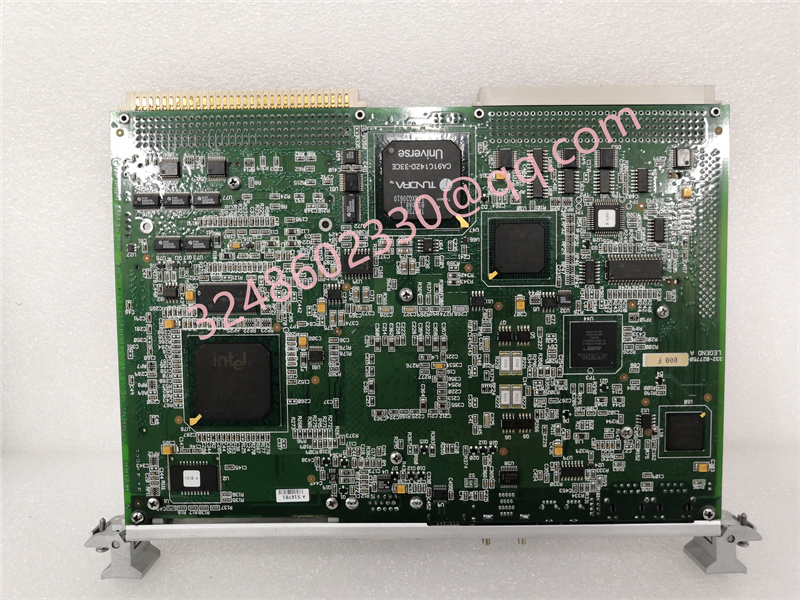

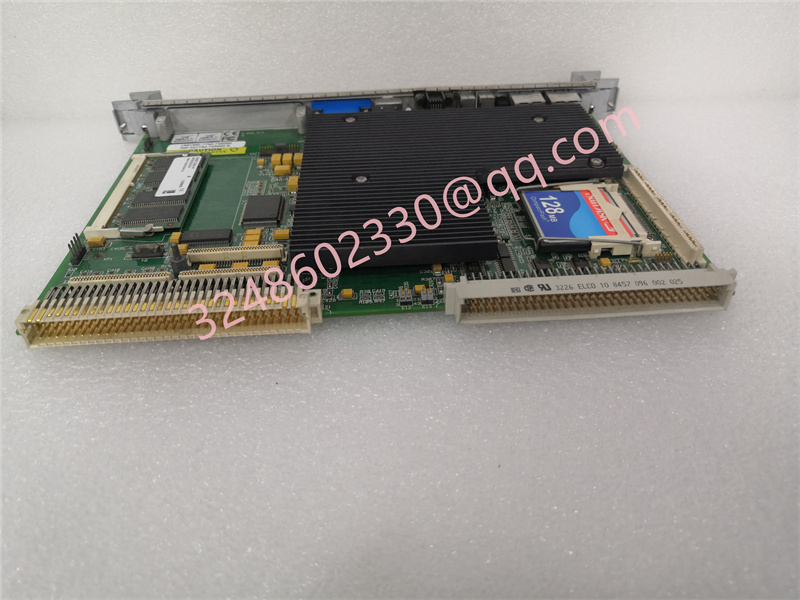

VMIC VMIVME-7750-734 CPU 主板。基于英特尔奔腾 III 处理器的 VMEbus |1.26 GHz Pentium III 支持 512K 高速缓存 |SDRAM 内存 - 64 MB |CompactFlash - 64 MB 简单类型：CPU 板
VMIVME-7750 将 Intel Pentium III 处理器引入 VMEbus，提供高达 1.26 GHz 的处理器速度。奔腾 III 处理器具有 32 位寻址和 64 位数据总线。其超标量架构允许每个时钟周期执行三条指令。动态分支预测单元、独立的指令和数据缓存以及 MMX 技术也提高了处理器的性能。VMIVME-7750 通过内置的 815E 芯片组 AGP 图形适配器支持高分辨率图形和多媒体质量视频。
特征
BIOS：系统和视频 BIOS 在可重新编程的闪存中提供。
DRAM 内存：VMIVME-7750 接受一个 144 针 SDRAM SODIMM，最大内存容量为 512 MB。板载 DRAM 通过双端口连接到 VMEbus。
闪存：VMIVME-7750 提供高达 1 GB 的 IDE CompactFlash 内存，可通过辅助 IDE 端口访问。
定时器：VMIVME-7750 为用户提供两个 16 位定时器和两个 32 位定时器（除系统定时器外）。这些定时器映射在 I/O 空间中，并且完全由软件编程。
看门狗定时器：VMIVME-7750 提供软件可编程看门狗定时器。
【英文介绍】
Product Number: VMIVME-7750-734
Model: VMIVME-7750-734
VMIC VMIVME-7750-734 CPU mainboard. The VMEbus | 1.26GHz Pentium III based on Intel Pentium III processors supports 512K cache |SDRAM memory - 64 MB |CompactFlash - 64 MB Simple type: CPU board
The VMIVME-7750 brings Intel Pentium III processors to VMEbus, offering processor speeds of up to 1.26 GHz. The Pentium III processor has 32-bit addressing and a 64-bit data bus. Its superscalar architecture allows three instructions to be executed per clock cycle. Dynamic branch prediction units, independent instruction and data caches, and MMX technology also improve processor performance. The VMIVME-7750 supports high-resolution graphics and multimedia quality video through the built-in 815E chipset AGP graphics adapter.
trait
BIOS: The system and video BIOS are provided in reprogrammable flash memory.
DRAM memory: The VMIVME-7750 accepts a 144-pin SDRAM SODIMM with a maximum memory capacity of 512 MB. The onboard DRAM is connected to the VMEbus via dual ports.
Flash memory: The VMIVME-7750 offers up to 1 GB of IDE CompactFlash memory, accessible via a secondary IDE port.
Timers: The VMIVME-7750 provides users with two 16-bit timers and two 32-bit timers (in addition to system timers). These timers are mapped in the I/O space and are fully programmed by software.
Watchdog Timer: The VMIVME-7750 offers software programmable watchdog timers.
