IS200STAIH2ACB 紧凑型模拟输入端子板 采用高密度欧式接线端子

☆型号：IS200STAIH2ACB   紧凑型模拟输入端子板    采用高密度欧式接线端子

【产品详情】

零件编号：IS200STAIH2ACB

制造商：通用电气

制造国：美国（美国）

尺寸：15.9 厘米高 x 10.2 厘米宽

温度：-30 至 +65oC

技术：表面贴装

产品类型：紧凑型模拟输入端子板

可用性：现货

系列：Mark VIe

该IS200STAIH2ACB由通用电气或通用电气创建，是Mark VI系列的组件。Mark VI 与之前的其他系列一样，是通用电气 Mark 系列的一部分。标记系统用于管理和自动化工业燃气轮机和蒸汽轮机的许多功能。IS200STAIH2ACB是一种称为DINrail板的设备。

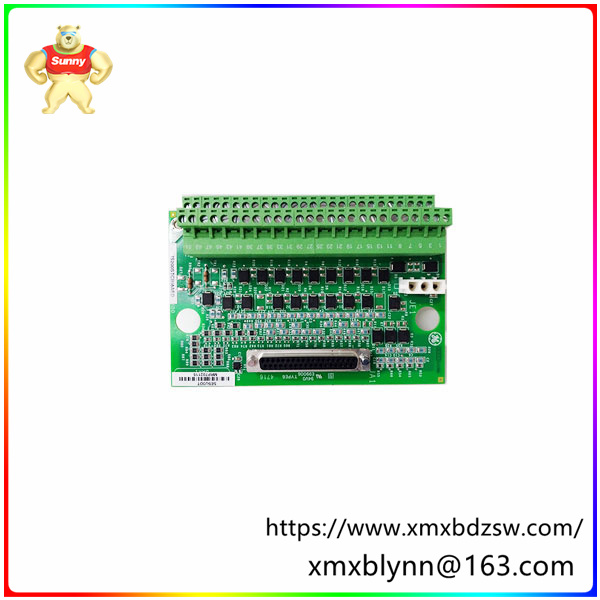

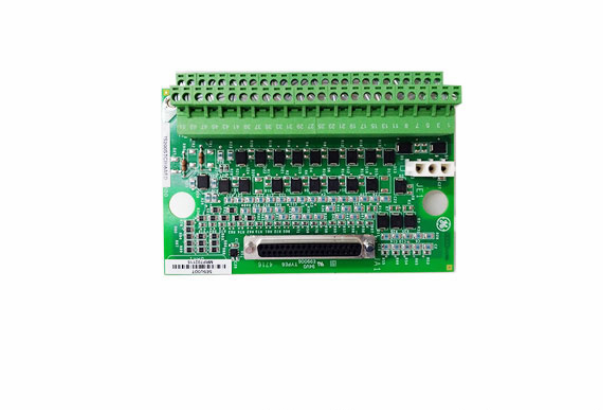

IS200STAIH2ACB是一种小型印刷电路卡或电路板 （PCB），具有许多不同的电子元件。一 （1） 个绿色常亮的大型接线端子已沿IS200STAIH2ACB底部边缘放置。该接线端子可以具有至少二十四 （24） 个称为端子的小金属部件。这些端子是银色的，形状像立方体。在这个接线端子的正上方，一长排二极管已经排成一排。这些二极管是矩形和黑色的。每个都用初始 D 标识，在IS200STAIH2ACB上可以看到十四 （14） 个黑色电位器或可变电阻器。其中十 （10） 个被排列成一条水平线，延伸到IS200STAIH2ACB的中心。（4）的其余部分在PCB的右上角组合成一条垂直线。紧挨着这四 （4） 个电位器的是一个黑白组件，带有称为跳线端口的金属引脚。至少一 （1） 个集成电路（具有独立组件网络的设备）连接到顶部的IS200STAIH2ACB。一 （1） 个长的连接器端口平行于IS200STAIH2ACB的上边框。

【英文介绍】

Part number: IS200STAIH2ACB

Manufacturer: General Electric

Country of Manufacture: USA (USA)

Dimensions: 15.9 cm high x 10.2 cm wide

Temperature: -30 to +65oC

Technology: Surface mount

Product Type: Compact analog input terminal board

Availability: In stock

Series: Mark VIe

The IS200STAIH2ACB was created by General Electric or GE and is a component of the Mark VI series. The Mark VI, like other series before it, is part of the GE Mark family. Marking systems are used to manage and automate many functions of industrial gas and steam turbines. IS200STAIH2ACB is a device called DINrail board.

The IS200STAIH2ACB is a small printed circuit card or circuit board (PCB) with many different electronic components. One (1) large green, steady on terminal has been placed along the bottom edge of IS200STAIH2ACB. The terminal may have at least twenty-four (24) small metal parts called terminals. The terminals are silver and shaped like cubes. Right above this terminal, a long row of diodes has been lined up. These diodes are rectangular and black. Each is identified with an initial D, and fourteen (14) black potentiometers or variable resistors can be seen on the IS200STAIH2ACB. Ten (10) of them are arranged in a horizontal line extending to the center of the IS200STAIH2ACB. (4) The rest of the PCB is combined into a vertical line at the top right corner. Right next to these four (4) potentiometers is a black and white assembly with a metal pin called a jumper port. At least one (1) integrated circuit (device with independent component network) connected to the top IS200STAIH2ACB. One (1) long connector port is parallel to the top bezel of the IS200STAIH2ACB.
