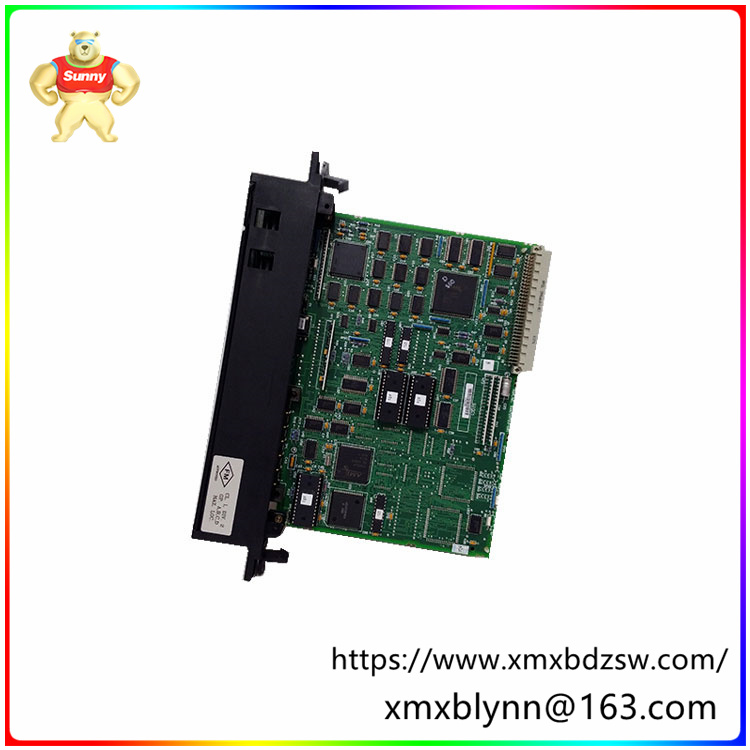

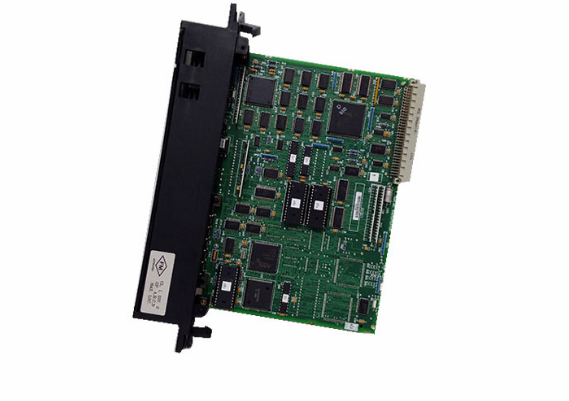

IC697BEM731Z Genius 总线控制器模块 支持通过基于Windows的软件配置在CPU之间传输全局数据

>>>>>型号:IC697BEM731Z   Genius 总线控制器模块    支持通过基于Windows的软件配置在CPU之间传输全局数据

【功能描述】

系列:Genius 总线 I/O

模块宽度: 单插槽

最大设备数:30 台设备/通道

总线终端: 75、150欧姆电阻，位于总线电缆两端

该IC697BEM731是一款 Genius 总线控制器模块，属于 GE Fanuc 90-70 系列可编程逻辑控制器 （PLC）。该模块主要用于连接多达三十 （30） 个设备，并通过在同一总线上的所有已配置设备之间传递令牌来传输数据。

该IC697BEM731具有一 （1） 个通道，用于与驻留在同一总线上的设备连接，一 （1） 个手持监视器 （HHM） 端口，用于使用 MS DOS 或 Windows 编程软件配置器功能将配置下载到模块。

IC697BEM731交付时，它没有明确的总线地址。配置软件将默认地址设置为 153.6 Kbaud 标准，总线地址设置为 31。可以通过将有效配置下载到 CPU 来修改此默认地址。当配置为 2000 Kbaud（标准）时，通信总线的最大允许距离为 153.6 ft;配置为 153.6 KBaud（扩展）时为 3500 英尺;配置为 76.8 KBaud 时为 4500 ft，配置为 38.4 KBaud 时为 7500 ft。必须驻留在同一总线或网络上的所有设备配置相同的波特率，否则无法建立通信或可能会遇到不稳定的通信。

用于建立网络的物理通信电缆是 Belden 9182 型电缆，GE 目录号为 IC660BLC001,15 英寸，数量为 3，IC660BLC003 为 36 英寸，数量为 1。总线端接器插头必须安装在总线的两端，目录号为 IC660BLM506 150 欧姆，数量为 4 和IC660BLM508,75 欧姆，数量为 4 电阻。

IC697BEM731总线控制器支持通过基于Windows的软件配置在CPU之间传输全局数据，并且可以通过IC697 PLC报警系统进行增强，以报告处理器数据表上带有时间戳的故障。该总线控制器模块的后端有一个手持式监控端口，用于连接手持式监控设备，以及一个用于建立 IC66 总线连接的连接器。IC697BEM731 Bus 控制器配置了基于 Windows 或 MS-DOS 的配置器功能。默认情况下，基于 Windows 的配置器功能将波特率设置为 153.5 千波特，将串行总线地址设置为 31。其他波特率和串行总线地址可以通过使用配置器功能进行分配。IC697BEM731总线控制器在安装时执行自我诊断，并具有显示操作和通信状态更新的 LED 灯指示灯。

【英文介绍】

Series :Genius bus I/O

Module width: single slot

Maximum number of devices :30 devices/channels

Bus terminals: 75, 150 ohm resistors, located at both ends of the bus cable

The IC697BEM731 is a Genius bus controller module belonging to the GE Fanuc 90-70 series of programmable logic controllers (PLCS). This module is primarily used to connect up to thirty (30) devices and transfer data by passing tokens between all configured devices on the same bus.

The IC697BEM731 has one (1) channel for connecting to devices that reside on the same bus, and one (1) Handheld monitor (HHM) port for downloading the configuration to the module using the MS DOS or Windows programming software Configurator feature.

When the IC697BEM731 was delivered, it did not have a clear bus address. The configuration software sets the default address to 153.6 Kbaud standard and the bus address to 31. This default address can be modified by downloading the valid configuration to the CPU. When configured at 2000 Kbaud (standard), the maximum allowable distance of the communication bus is 153.6 ft; 3500 feet when configured at 153.6 KBaud (extended); The value is 4500 ft for 76.8 KBaud and 7500 ft for 38.4 KBaud. All devices residing on the same bus or network must be configured with the same baud rate, otherwise communication cannot be established or you may experience erratic communication.

The physical communication cables used to establish the network are Belden Type 9182 cables with GE catalog number IC660BLC001,15 inches, number 3, and IC660BLC003, 36 inches, number 1. The bus terminal plug must be installed at both ends of the bus with the directory number IC660BLM506 150 ohms, number 4 and IC660BLM508 75 ohms, number 4 resistors.

The IC697BEM731 bus controller supports global data transfer between cpus via a Windows-based software configuration, and can be enhanced with the IC697 PLC alarm system to report time-stamped failures on the processor data table. The rear end of the bus controller module has a handheld monitoring port for connecting the handheld monitoring device and a connector for establishing the IC66 bus connection. The IC697BEM731 Bus controller is configured with Windows or MS-DOs-based configurator functionality. By default, the Windows-based configurator feature sets the baud rate to 153.5 kilobit and the serial bus address to 31. Other baud rates and serial bus addresses can be assigned by using the configurator function. The IC697BEM731 bus controller performs self-diagnosis at installation and has LED light indicators that show updates on operation and communication status.
