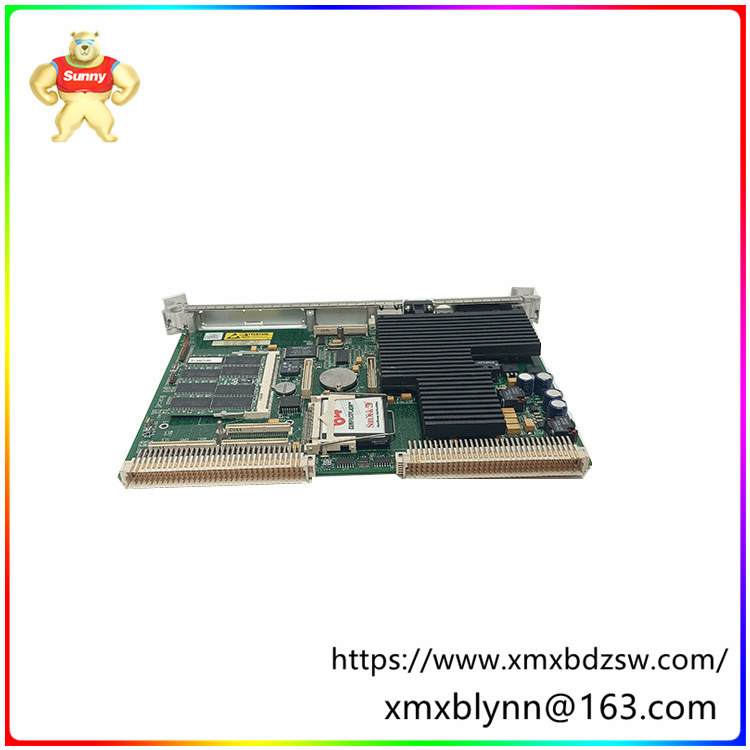

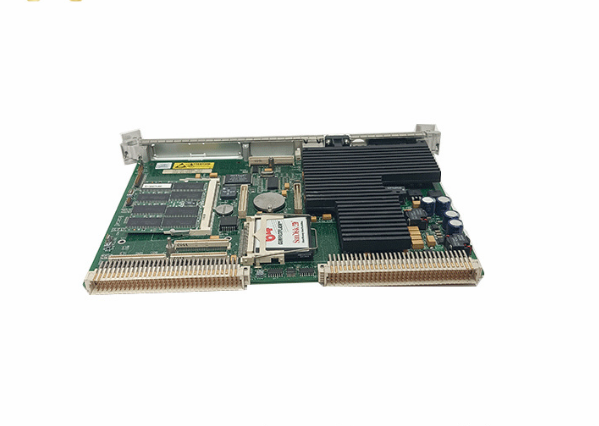

VMIVME7698 VME总线单板计算机 实现与其他VME设备的无缝连接

>>>>>型号:VMIVME7698  VME总线单板计算机   实现与其他VME设备的无缝连接

【功能描述】

VMIVME-7698是一款由GE（通用电气）生产的VME总线单板计算机，具有高性能、高可靠性以及易于集成的特点。

VMIVME-7698基于VMEBUS总线，具有标准的VME总线接口，可以方便地集成到已有的VME系统中，实现与其他VME设备的无缝连接。该模块采用单射赛扬模型套接字370处理器，具有多种特殊功能，例如最多512兆字节的可选择格式的内存，以及最多3个可编程的16比特定时器模块。

此外，VMIVME-7698的设计还考虑了宽温工作范围，以满足军事和航空航天等领域的需求，能够在极端温度条件下正常工作。同时，为了抵抗振动和冲击，确保在动态或恶劣环境下系统的稳定性和可靠性，该模块可能采用特殊的设计和材料。

特征:

●Celeron Socket 370处理器

●64位英特尔@ AGP SVGA控制器，带2 MB SGRAM

板载快速以太网控制器，支持10BaseT和100BaseTX接口

●板载Ultra DMA/33硬盘和Foppy驱动器控制器，带VMEbus P2 /0

●两个高性能16550兼容串行端口

●PS/2型键盘和鼠标端口位于前面板

， VME64连接器

纡VMIC VMIVME-7698单插槽赛扬插槽370处理器的VME 1 VME64单板计算机具有带MMX"的英特尔赛扬处理器。赛扬处理器具有32位寻址和64位数据总线。板载DRAM通过双端口连接到

VMEbus。系统和视频BIOS在可重新编程的闪存中提供。VMIVME 7698为用户提供了三个兼容82C54的16位定时器(除系统定时器外)。这些定时器映射在I/O空间中，并且完全由软件编程。

【英文介绍】

The VMIVME-7698 is a VME bus single-board computer produced by GE (General Electric) with high performance, high reliability, and easy integration.

The VMIVME-7698 is based on the VMEBUS and has a standard VME bus interface, which can be easily integrated into the existing VME system to achieve seamless connection with other VME devices. The module uses a single-shot Ceion model socket 370 processor with a variety of special features, such as up to 512 megabytes of memory in selectable formats, and up to three programmable 16-bit timer modules.

In addition, the VMIVME-7698 has been designed with a wide temperature operating range in mind to meet the needs of areas such as military and aerospace, and is capable of operating under extreme temperature conditions. At the same time, in order to resist vibration and shock and ensure the stability and reliability of the system in dynamic or harsh environments, the module may be made of special designs and materials.

Features:

●Celeron Socket 370 processor

● 64-bit Intel @AGP SVGA controller with 2 MB SGRAM

Onboard fast Ethernet controller with 10BaseT and 100BaseTX interfaces

● Onboard Ultra DMA/33 hard disk and Foppy drive controller with VMEbus P2/0

● Two high-performance 16550 compatible serial ports

●PS/2 keyboard and mouse ports are located on the front panel

, VME64 connector

VMIC VMIVME-7698 Single slot Celeron 370 processor VME 1 VME64 single board computer with MMX" Intel Celeron processor. Celeron processors have 32-bit addressing and 64-bit data buses. The onboard DRAM is connected via dual ports

VMEbus. The system and video BIOS are provided in reprogrammable flash memory. The VMIVME 7698 provides users with three 82C54-compatible 16-bit timers (in addition to the system timer). These timers are mapped in the I/O space and are fully programmed by software.
