VMIVME4150 模拟输出模块 多达12个完全隔离的模拟输出

>>>>>型号:VMIVME4150模拟输出模块多达12个完全隔离的模拟输出【功能描述】VMIVME-4150是一款由美国通用电气

联系人:Sunny

手机:18059884797

QQ:3095989363

邮箱:xiongbagk@gmail.com

产品详情

>>>>>型号:VMIVME4150  模拟输出模块   多达12个完全隔离的模拟输出



【功能描述】



VMIVME-4150是一款由美国通用电气(GE)生产的模拟输出模块。它广泛应用于各种工业控制系统和自动化设备中,用于实现精确的模拟信号输出和控制。


VMIVME-4150模块具有多个关键特性和规格。首先,它提供多达16路隔离模拟输出通道,每个通道与其他通道和VME电气隔离,这有助于确保信号传输的稳定性和准确性。其次,该模块具有16位的分辨率,能够提供高精度的模拟输出。用户还可以选择多种满量程范围,如±10V、±5V、±2.5V、+2.5V、+5V、+10V以及电流范围如0-20mA、4-20mA、5-25mA等,以满足不同的应用需求。


此外,VMIVME-4150模块还具备一系列保护和回读功能。它提供电压输出精度为0.05,电流输出精度为0.08,保证了输出的准确性。同时,模块具有电压输出无限期保护至±20V和瞬态保护至±50V的能力,确保在异常情况下也能保护设备免受损坏。此外,光学数据耦合提供完全电隔离,静态回读数据寄存器简化了程序控制,输出的连接/断开操作可由程序控制,这些特性都增强了模块的可靠性和易用性。




特征:

●多达12个完全隔离的模拟输出

●12位分辨率

●电压输出范围可选+2.5、t5 或+10 v

●10mA 负载能力,在整个t10V范围内提供电压输出

提供4至20mA电流环路输出

●电压输出精度为0.05%, 电流环路输出精度为0.08%

●4通道、8通道和12通道配置

●光学数据耦合提供完全电流隔离

●静态回读数据寄存器简化程序控制

前面板检修

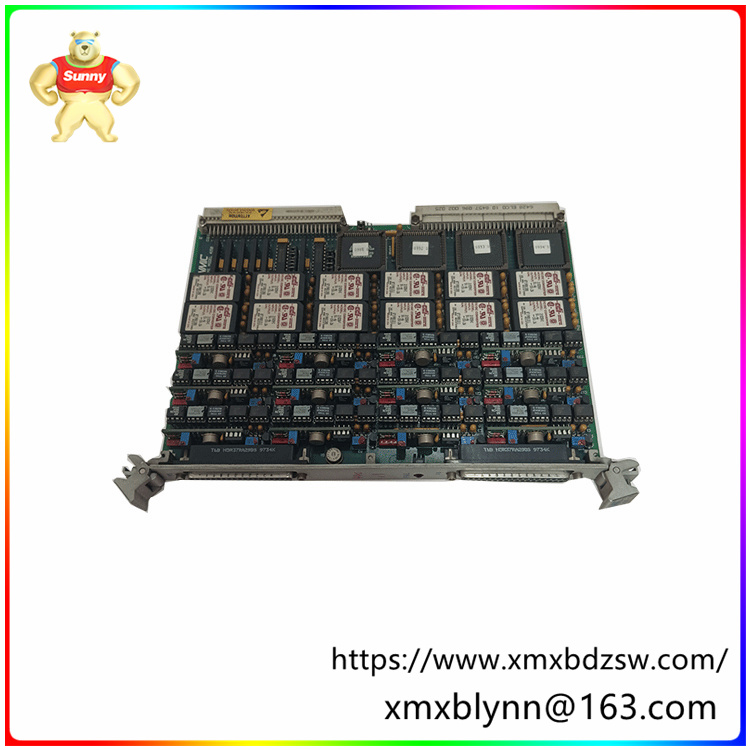

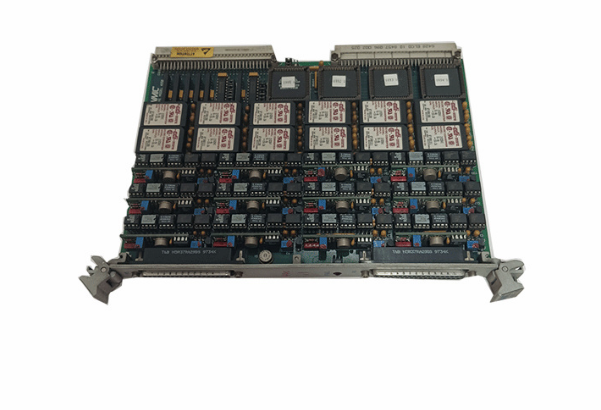

VMIC 1 GE Fanuc VMIVME 4150隔离式模拟输出板在单个6U外形尺寸VMEbus板上提供多达12个隔离式高质量12位模拟输出通道。每个通道都与所有其他通道和VMEbus电气隔离,并将在高达

1,000 V的持续隔离电压下工作。输出电压范围可选择为 +2.5、+5和+10V,或0至+2.5V、5V、10V, 并且在这些范围内支持完整的10 mA负载。提供4通道、8通道和12通道配置。

在系统测试期间,输出可以在程序控制下断开连接或置于最小状态,并在复位时自动断开或置于最小状态。提供前面板故障LED。LED灯在系统复位期间打开,可以在用户软件控制下关闭。



英文介绍





The VMIVME-4150 is an analog output module produced by General Electric (GE). It is widely used in various industrial control systems and automation equipment to achieve accurate analog signal output and control.


The VMIVME-4150 module has several key features and specifications. First, it provides up to 16 isolated analog output channels, each electrically isolated from the other channels and the VME, which helps ensure the stability and accuracy of signal transmission. Second, the module has a 16-bit resolution, which is able to provide high-precision analog output. Users can also choose from a variety of full scale ranges, such as ±10V, ±5V, ±2.5V, +2.5V, +10V, and current ranges such as 0-20mA, 4-20mA, 5-25mA, etc., to meet different application requirements.


In addition, the VMIVME-4150 module has a range of protection and read-back functions. It provides voltage output accuracy of 0.05, current output accuracy of 0.08, to ensure the accuracy of the output. At the same time, the module has the capability of voltage output protection up to ±20V indefinitely and transient protection up to ±50V, ensuring that the equipment is protected from damage even in abnormal conditions. In addition, optical data coupling provides complete electrical isolation, static read-back data registers simplify program control, and the output connect/disconnect operation can be programmed, all of which enhance the reliability and ease of use of the module.




Features:

● Up to 12 fully isolated analog outputs

● 12-bit resolution

● Voltage output range is available at +2.5, t5 or +10 v

●10mA load capacity to provide voltage output over the entire t10V range

Provides 4 to 20mA current loop output

● Voltage output accuracy is 0.05%, current loop output accuracy is 0.08%

●4 channel, 8 channel and 12 channel configurations

● Optical data coupling provides complete current isolation

● Static read back data register simplified program control

Front panel repair

The VMIC 1 GE Fanuc VMIVME 4150 Isolated Analog Output Board provides up to 12 isolated high quality 12-bit analog output channels on a single 6U contour VMEbus board. Each channel is electrically isolated from all other channels and VMEbus and will be in high

Operates at a continuous isolation voltage of 1,000 V. Output voltage ranges can be selected from +2.5, +5 and +10V, or from 0 to +2.5V, 5V, 10V, and a full 10 mA load is supported in these ranges. Available in 4 -, 8 -, and 12-channel configurations.

During system testing, the output can be disconnected or minimized under program control and automatically disconnected or minimized upon reset. Front panel fault LED available. The LED lights turn on during the system reset and can be turned off under the control of the user's software.
