8521-LC-MT 以太网总线接口模块 有效地传递到控制器

>>>>>型号:8521-LC-MT   以太网总线接口模块    有效地传递到控制器

【功能描述】

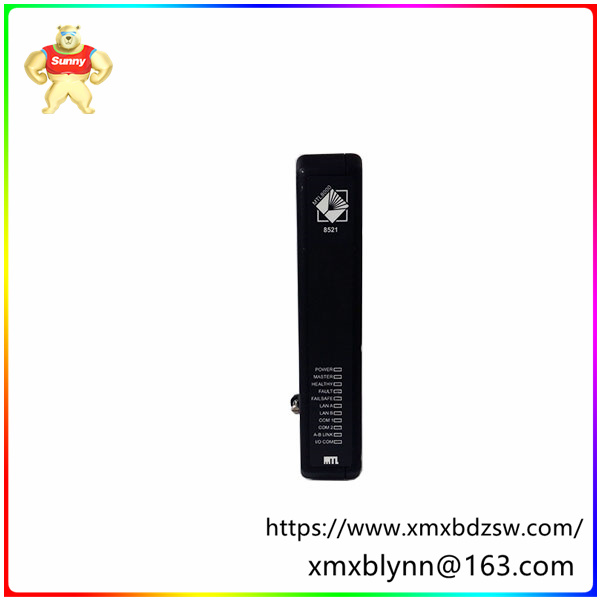

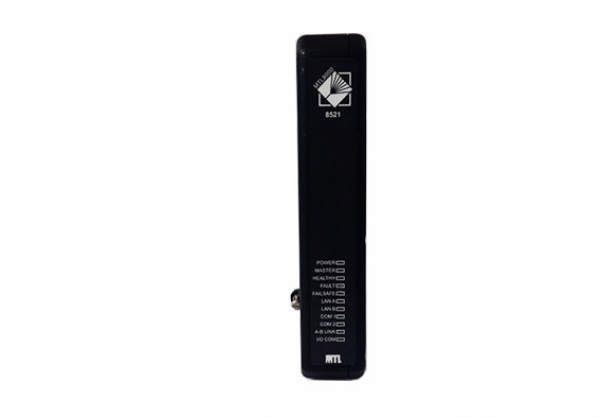

8521-LC-MT MOST以太网TM BIM MTL

品牌: MTL

型号: 8521-LC-MT

附加信息: MOST EthernetTM BIM

预计运输尺寸

尺寸: 263x 58 x 28mm

重量:4.3kg原

产地: United States of America

MOST以太网总线接口模块(EBIM) 是一个坚固耐用的现场安装平台， 适用于恶劣和危险过程应用中的远程I/0安装。

以太网BIM支持完全冗余操作,并提供了冗余通信，并在需要时自动切换到备用EBIM。EBIM支持HART直通功能，可用于HART现场设备的远程维护。

概述.

EBIM可用于两种通信模式:将MODBUS TCP用作另-个主机系统的远程I/O,或将高速点对点通信用作MOST控制系统中的远程/O。使用MODBUS TCP时，EBIM充

当从站，以RTU模式通过以太网以10/100MB的速度进行通信。结给MTL 8000 Process I/OTM系统组件,它比安装在控制室的系统节省了成本，犋有灵活的系统设

计和高系统可用性。EBIM 可以使用现成的HMI软件包，包括Wonderware、Intellution 和Cimplicity。在MOST控制系统中，EBIM系统可用作MOST系统控制器的远程

I/O节点。在MOST控制系统中使用时,所有远程EBIM节点都配置为本地/O系统的一部分，为系统中的所有I/O节点(无论是本地还是远程)提供单一的集成配置。使用

高速点对点通信将数据从EBIM有效地传递到控制器。

应用

远程安装的EBIM节点是所有类型工艺应用的理想解决方案，包括以下行业:化工、石化、水和废水、石油和天然气(尤其是海上应用)、管道、发电、电、食品和

饮料、水泥和纸浆和造纸。

优势降低电缆成本

仪表电缆对在本地端接，而不是过工厂连接到控制室。笨重、昂贵的传感器电缆被LAN电缆取代

【英文介绍】

8521-LC-MT MOST Ethernet TM BIM MTL

Brand: MTL

Model: 8521-LC-MT

Additional information: MOST EthernetTM BIM

Estimated shipping size

Size: 263x 58 x 28mm

Weight :4.3kg original

Origin: United States of America

The MOST Ethernet Bus Interface Module (EBIM) is a rugged field installation platform for remote I/0 installations in harsh and hazardous process applications.

Ethernet BIM supports fully redundant operation and provides redundant communication and automatically switches to a standby EBIM when needed. EBIM supports HART pass-through and can be used for remote maintenance of HART field equipment.

Overview.

EBIM can be used in two communication modes: using MODBUS TCP as remote I/O for another host system, or using high-speed point-to-point communication as remote /O in MOST control systems. Charge the EBIM when MODBUS TCP is used

When the slave station, it communicates at 10/100MB over Ethernet in RTU mode. Integrated into the MTL 8000 Process I/OTM system components, it is cost-effective compared to the system installed in the control room, 犋 has a flexible system configuration

Measure and high system availability. EBIM can use off-the-shelf HMI packages, including Wonderware, Intellution, and Cimplicity. In the MOST control system, the EBIM system can be used as a remote for the MOST system controller

I/O node. When used in MOST control systems, all remote EBIM nodes are configured as part of the local /O system, providing a single integrated configuration for all I/O nodes in the system, whether local or remote. Use

High-speed point-to-point communication efficiently transfers data from the EBIM to the controller.

Apply

Remotely installed EBIM nodes are the ideal solution for all types of process applications, including the following industries: chemical, petrochemical, water and wastewater, oil and gas (especially offshore applications), pipeline, power generation, electricity, food, and more

Beverages, cement and pulp and paper.

Advantages Reduce cable costs

Instrument cable pairs are terminated locally rather than through the factory to the control room. Bulky, expensive sensor cables were replaced by LAN cables
