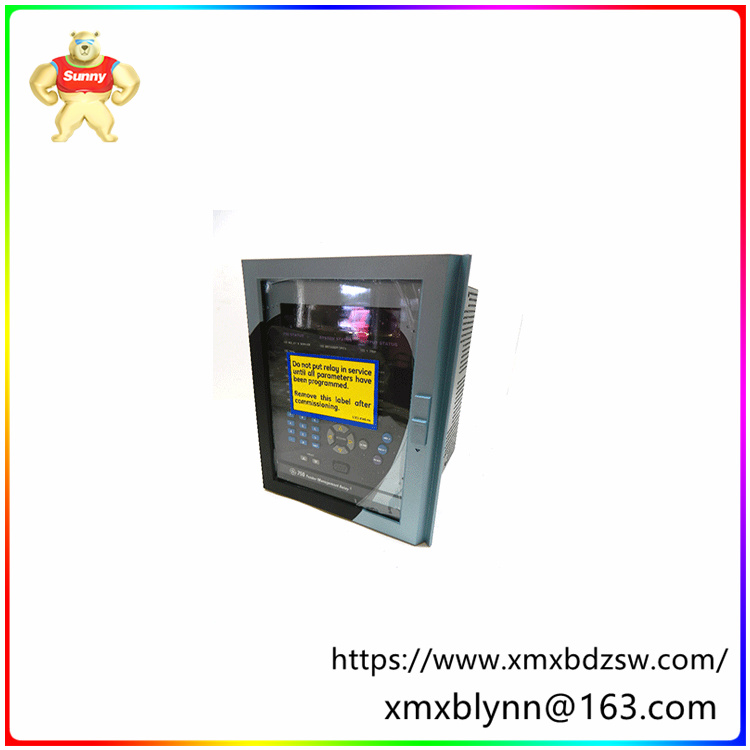

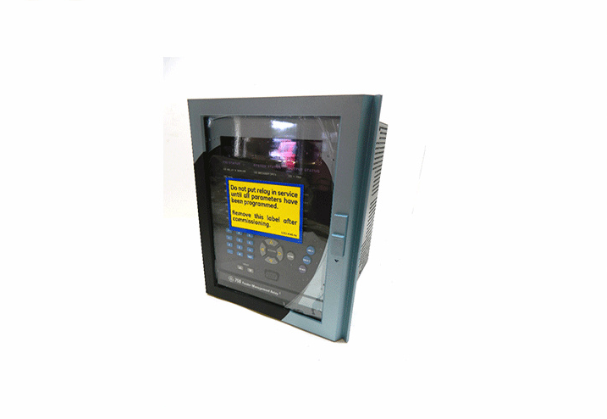

>>>>>型号:SR750-P5-G1-S1-HI-A20-R 馈线管理继电器 流向接地的泄漏电流
【功能描述】
描述
SR750P5G1S1HIA20RE
制造商停用
馈线管理继电器
SR750系列
5 . a相电流输入
1 a零序电流输入
88 - 300伏直流
70 - 265年休假
48 - 62赫兹
8个4-20 ma模拟输出
红色断路器闭合
增强显示
大液晶
工厂保修可能不适用。包括雷德威尔2年保修
SR750-P5-G1-S1-HI-A20-R 的功能：
馈线保护：该继电器的主要功能是保护馈线（电缆或线路）免受各种故障和异常情况的影响。这些可能包括：
过流：流过馈线的电流过大。
过/欠压tage：电压电平超出馈线可接受的范围。
接地故障：流向接地的泄漏电流。
相位不平衡：在三相系统的三相中流动的不相等电流。
监测：继电器监控馈线上的各种电气参数，例如电压、电流、功率因数和频率。
控制：根据监控的参数和预编程的设置，继电器可以采取控制措施来保护馈线。这些操作可能包括跳闸断路器、发送警报或控制其他设备。
计量：SR-750 系列中的某些型号可能提供计量功能，提供有关电能消耗和其他参数的数据。
应用：
SR750-P5-G1-S1-HI-A20-R 馈线管理继电器用于需要保护和监控电气馈线的各种应用：
配电系统：保护工厂、商业建筑和公用变电站中的馈线。
电机控制中心：保护为电动机供电的馈线。
可再生能源系统：保护太阳能、风能和其他可再生能源发电设施中的馈线。
【英文介绍】
Description
SR750P5G1S1HIA20RE
DISCONTINUED BY MANUFACTURER
FEEDER MANAGEMENT RELAY
SR750 SERIES
5 A PHASE CURRENT INPUTS
1 A ZERO SEQUENCE CURRENT INPUTS
88-300 VDC
70-265 VAC
48-62 HZ
EIGHT 4-20 MA ANALOG OUTPUTS
RED BREAKER CLOSED LED
ENHANCED DISPLAY
LARGER LCD
FACTORY WARRANTY MAY NOT APPLY. RADWELL 2-YEAR WARRANTY INCLUDED
Functions of SR750-P5-G1-S1-HI-A20-R:
Feeder protection: The main function of this relay is to protect the feeder (cable or line) from various faults and abnormal conditions. These may include:
Overcurrent: Excessive current flows through the feeder.
Over/Under voltage tage: Voltage levels beyond the acceptable range of the feeder.
Ground fault: Leakage current to ground.
Phase imbalance: Unequal currents flowing in the three phases of a three-phase system.
Monitoring: Relays monitor various electrical parameters on the feeder, such as voltage, current, power factor, and frequency.
Control: Depending on the monitored parameters and pre-programmed Settings, the relay can take control measures to protect the feeder. These operations may include tripping circuit breakers, sending alarms, or taking control of other devices.
Metering: Some models in the SR-750 series may offer metering features that provide data on power consumption and other parameters.
Applications:
The SR750-P5-G1-S1-HI-A20-R feeder management relay is used in a variety of applications where electrical feeders need to be protected and monitored:
Distribution systems: Protect feeders in factories, commercial buildings, and utility substations.
Motor control center: Protects the feeders that supply power to the motor.
Renewable energy systems: Protect feeders in solar, wind and other renewable energy generation facilities.
