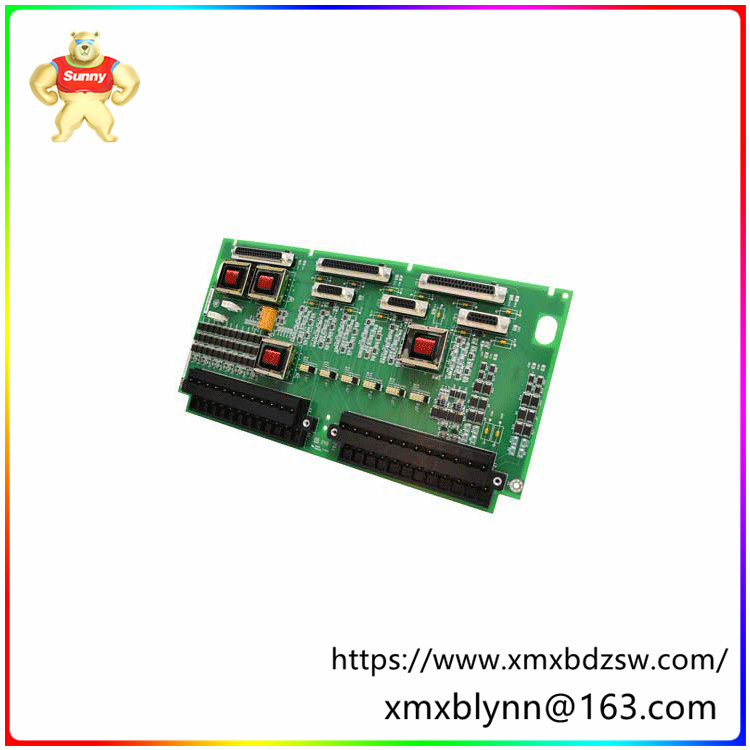

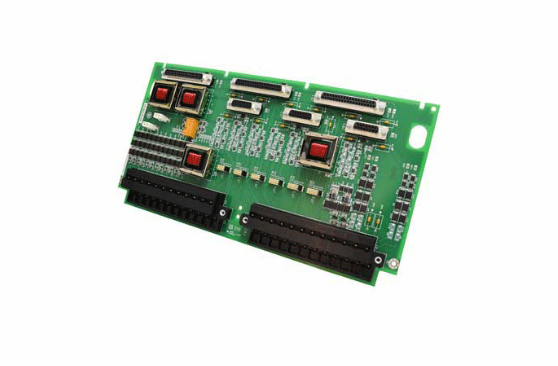

IS200SDIIH1ADBMRP683026 涡轮控制板 具有自动感应功能

>>>>>型号:IS200SDIIH1ADBMRP683026  涡轮控制板  具有自动感应功能

【功能描述】

它是马克六世系列的一部分。这个模块作为一个钥匙

组件，提供基本信号，如速度，温度，

发电机电压，以及VPRO的母线电压。这种协作形成了独立的应急超速和同步保护系统，确保安全稳定。这种全面的安排证明了TPRO和VPRO在紧急超速和同步保护系统中的关键相互作用。集成的功能和控制机制确保了对紧急情况的及时和协调响应，优先考虑涡轮机运行的安全性和系统稳定性。

IS200SDIIH1ADBMRP683026是GE公司生产的一款工业控制产品，是一款涡轮控制板，为Mark VI系统制造的单工继电器输出端子板。它支持多种通信协议，如使用服务请求传输协议(SRTP)的TCP/IP通信服务、SRTP客户端、MODBUS TCP服务器和MODBUS TCP客户端等。

该控制板具有两个以太网端口，能够以10/100 Mbps的通信速度传输数据，并具有自动感应功能。这些端口支持菊花链，允许形成线性、星形和环形拓扑，并支持唯一或冗余的IP寻址。此外，它还有一个串行通信端口，支持1200 - 115200 bps的传输速度。

IS200SDIIH1ADBMRP683026的工作温度范围为-40°C至+70°C，工作电压为24V DC，功率为10W。其重量为1.2kg，尺寸为12cm x 8cm x 5cm。这款控制板是通用电气公司发布的最后一批燃气或蒸汽涡轮机Speedtronic管理系统中的一部分。

【英文介绍】

It is part of the Mark VI series. This module serves as a key

component, providing basic signals such as speed, temperature,

generator voltage, and bus voltage to the VPRO. This collaboration has formed an independent emergency overspeed and synchronous protection system to ensure safety and stability. This comprehensive arrangement demonstrates the key interaction between TPRO and VPRO in emergency overspeed  and synchronous protection systems. The integrated functions and control mechanisms ensure timely and coordinated  responses to emergency situations, with priority given to the  safety and system stability of turbine operation.

IS200SDIIH1ADBMRP683026 is an industrial control product produced by GE Corporation. It is a turbine control board and a simplex relay output terminal board manufactured for the Mark VI system. It supports a variety of communication protocols, such as TCP/IP communication services using Service Request Transport Protocol (SRTP), SRTP clients, MODBUS TCP servers, and MODBUS TCP clients.

The control board features two Ethernet ports, is capable of transmitting data at 10/100 Mbps communication speeds, and has automatic sensing. These ports support Daisy chains, allowing linear, star, and ring topologies, and support unique or redundant IP addressing. In addition, it has a serial communication port that supports transfer speeds of 1200-115200 bps.

The IS200SDIIH1ADBMRP683026 has an operating temperature range of -40°C to +70°C, an operating voltage of 24V DC and a power of 10W. It weighs 1.2kg and measures 12cm x 8cm x 5cm. The panel is part of the Speedtronic management system, one of the last gas or steam turbines released by GE.
