531X305NTBAPG1 驱动控制端子板 实现光电隔离的电路连接

>>>>>型号:531X305NTBAPG1  驱动控制端子板  实现光电隔离的电路连接

【功能描述】

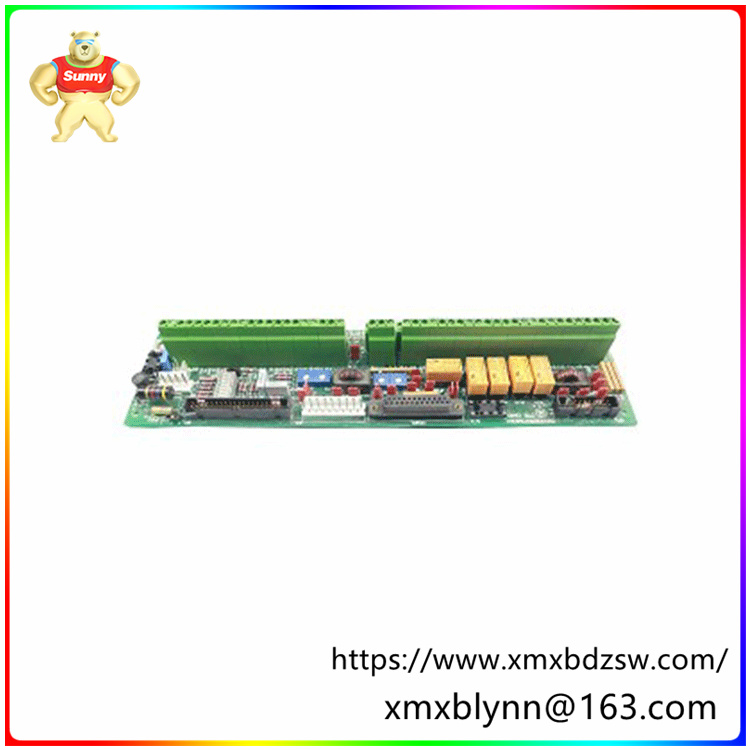

531X305NTBAPG1是一种由通用电气（GE）生产的驱动控制端子板，常用于工业自动化和控制系统中。该端子板特别设计用于GE的EX2000励磁系统，主要应用在驱动器（或励磁机）柜内。

其主要功能和特点包括：

信号连接：大多数外部信号级I/O的驱动器（或激励器）连接端子以及无源接口电路都位于电路板上，使得信号传输更为便捷。

电源输出：提供多种电源输出选项，包括+5 V dc和15 V dc稳压电压，以及非稳压直流24 V和120 V交流电，以满足不同设备的电源需求。

编码器接口：包含带有标记通道的差分A-quad-B编码器接口，可用于连接到驱动器，实现光电隔离的电路连接。

数字控制输入：能够将各种控制输入传输到驱动器控制板，实现精准的控制操作。

此外，531X305NTBAPG1端子板还具备内置的以太网用户支持通信功能，支持SRTP和Modbus TCP/IP应用协议，为连接的系统提供实时链路。它还具有可扩展的处理能力，允许用户根据需求创建理想的系统，并在不更改软件的情况下升级系统性能。同时，它还支持多种现场总线接口，为用户提供分布式控制和/或I/O的灵活选择。

总的来说，531X305NTBAPG1驱动控制端子板是一款功能强大、灵活多变的工业自动化组件，适用于多种应用场景，能够满足不同系统的控制需求。

【英文介绍】

The 531X305NTBAPG1 is a drive control terminal board manufactured by General Electric (GE) and commonly used in industrial automation and control systems. The terminal board is specifically designed for use in GE's EX2000 excitation system, primarily in the driver (or exciter) cabinet.

Its main functions and features include:

Signal connections: Most external signal level I/O driver (or exciter) connection terminals and passive interface circuits are located on the circuit board, making signal transmission more convenient.

Power output: Multiple power output options are available, including +5 V dc and 15 V dc regulated voltages, as well as unregulated DC 24 V and 120 V AC to meet the power needs of different devices.

Encoder interface: Includes A differential A-QUAD-B encoder interface with a marked channel that can be used to connect to a driver for a circuit connection that achieves photoelectric isolation.

Digital control input: It can transmit various control inputs to the driver control board to achieve accurate control operation.

In addition, the 531X305NTBAPG1 terminal board has built-in Ethernet user support communication and supports SRTP and Modbus TCP/IP application protocols to provide a real-time link to connected systems. It also has scalable processing capabilities that allow users to create ideal systems based on requirements and upgrade system performance without changing the software. At the same time, it also supports a variety of fieldbus interfaces, giving users the flexibility to choose distributed control and/or I/O.

Overall, the 531X305NTBAPG1 drive control terminal board is a powerful and flexible industrial automation component that is suitable for a variety of application scenarios and can meet the control needs of different systems.
