IS215UCVGM06A IS215UCVGH1A 单插槽CPU模块 为后续的故障分析和性能优化提供依据

☆型号：IS215UCVGM06A IS215UCVGH1A  单插槽CPU模块   为后续的故障分析和性能优化提供依据

【产品详情】

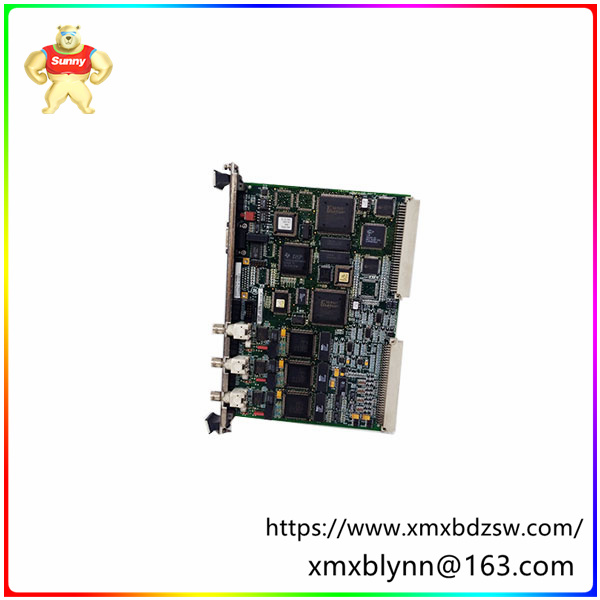

IS215UCVGM06A和IS215UCVGH1A是GE公司生产的用于Mark VI系统的PCB元件，特别是作为UCV（通用控制器）控制器使用。这些控制器在燃气/蒸汽涡轮机管理平台中起着关键作用，是GE长期运行的Speedtronic产品线的一部分。

以下是关于这两款产品的一些详细信息：

硬件设计：

IS215UCVGM06A和IS215UCVGH1A都是单插槽CPU模块，它们带有CPU基板和多个扩展或远程基板。

这些模块使用80386EX处理器类型，其运行速度可达25MHz，并能在0至60摄氏度（32至140华氏度）的环境温度下稳定运行。

这些CPU模块的典型扫描速率为0.22毫秒/K，最大用户程序内存为32K字节。

通信与接口：

这些控制器配备了多种通信接口，如以太网、Modbus、Profibus等，以便与其他控制系统和监测设备进行数据交换。

它们还具有支持SNP/SNP-X从机协议的内置串行端口和LAN端口，用于支持多点、以太网、FIP、Profibus、GBC、GCM和GCM+选项模块。

功能特性：

这些模块具有广泛的数据采集功能，用于监测燃机或涡轮机的性能参数，如温度、压力、振动等。

它们包括控制逻辑和算法，用于管理燃机或涡轮机的启停、负荷调整和性能优化。

这些控制器还具备自诊断功能，能够检测故障并发出警报，有助于减少停机时间。

它们能够记录历史数据，为后续的故障分析和性能优化提供依据。

操作系统与结构：

IS215UCVGM06A在QNX操作系统上运行，这是一个实时、多任务的操作系统。

这些控制器的前面板带有多种连接器，包括显示器、键盘/鼠标端口、以太网/LAN端口和USB端口。

前面板还包含复位开关、LED组件以及连接到以太网端口的LED。

综上所述，IS215UCVGM06A和IS215UCVGH1A是GE Mark VI系统中重要的UCV控制器，它们在燃气/蒸汽涡轮机的管理和控制中扮演着至关重要的角色，通过数据采集、控制逻辑、通信接口以及自诊断功能，确保涡轮机的稳定运行和优化性能。

【英文介绍】

The IS215UCVGM06A and IS215UCVGH1A are PCB components manufactured by GE for use in Mark VI systems, specifically as UCV (Universal Controller) controllers. These controllers play a key role in gas/steam turbine management platforms and are part of GE's long-running Speedtronic product line.

Here are some details about the two products:

Hardware design:

The IS215UCVGM06A and IS215UCVGH1A are single-socket CPU modules with CPU substrates and multiple extension or remote substrates.

These modules use the 80386EX processor type, which can run at speeds up to 25MHz and operate stably at ambient temperatures ranging from 0 to 60 degrees Celsius (32 to 140 degrees Fahrenheit).

The typical scan rate of these CPU modules is 0.22 ms /K and the maximum user program memory is 32K bytes.

Communication and interface:

These controllers are equipped with a variety of communication interfaces such as Ethernet, Modbus, Profibus, etc., in order to exchange data with other control systems and monitoring devices.

They also have built-in serial ports and LAN ports supporting SNP/SNP-X slave protocols for support of multipoint, Ethernet, FIP, Profibus, GBC, GCM, and GCM+ option modules.

Functional features:

These modules have a wide range of data acquisition capabilities for monitoring gas turbine or turbine performance parameters such as temperature, pressure, vibration, etc.

They include control logic and algorithms to manage the start and stop of a gas turbine or turbine, load adjustment, and performance optimization.

These controllers also have self-diagnostic capabilities to detect faults and issue alerts, helping to reduce downtime.

They can record historical data and provide a basis for subsequent fault analysis and performance optimization.

Operating system and structure:

The IS215UCVGM06A runs on the QNX operating system, which is a real-time, multi-tasking operating system.

The front panel of these controllers comes with a variety of connectors, including a display, keyboard/mouse port, Ethernet /LAN port, and USB port.

The front panel also contains a reset switch, an LED assembly, and an LED connected to an Ethernet port.

To sum up, the IS215UCVGM06A and IS215UCVGH1A are important UCV controllers in GE Mark VI systems. They play a vital role in the management and control of gas/steam turbines through data acquisition, control logic, communication interfaces, and self-diagnostics. Ensure stable operation and optimized performance of turbines.
