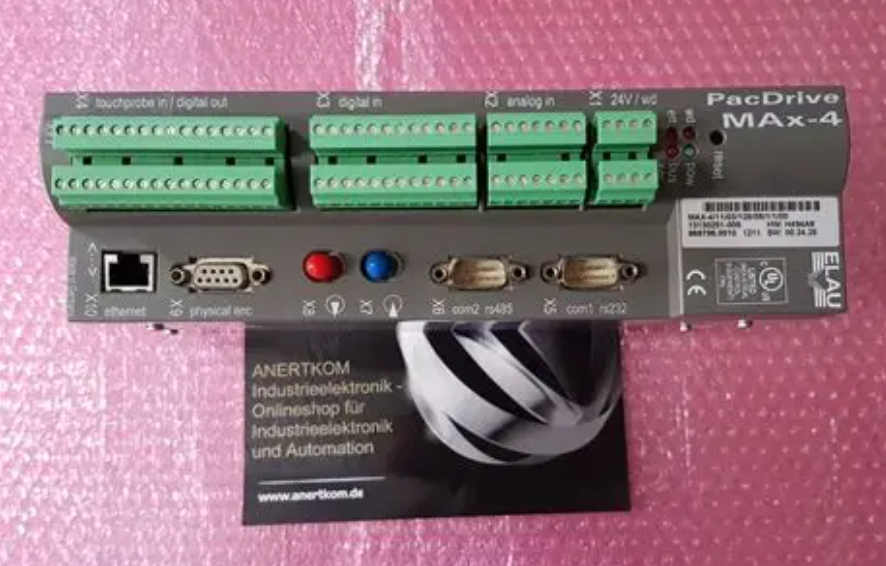

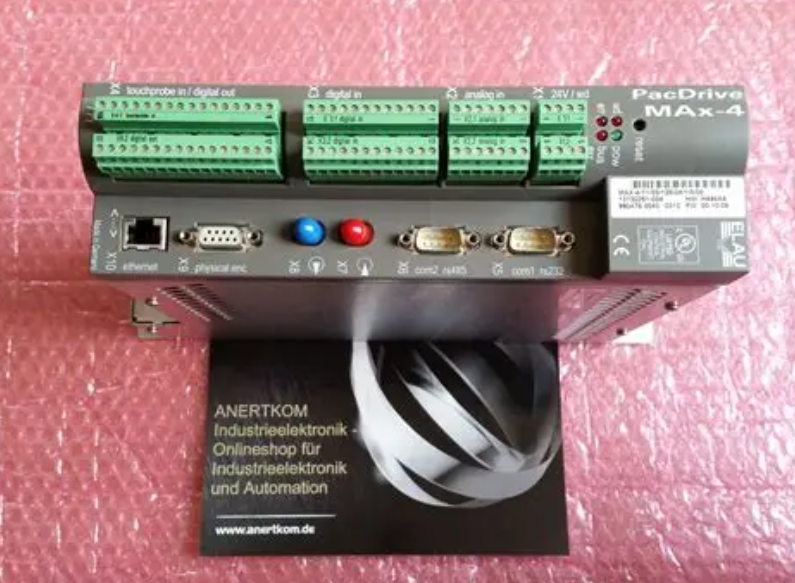

MAX-4/11/03/128/08/1/1/00 输入输出控制器 可以连接多种传感器和执行器

☆型号：MAX-4/11/03/128/08/1/1/00 输入输出控制器  可以连接多种传感器和执行器

【产品详情】

PacDrive控制器MAx-4是系统的智能头，基于工业PC。PacDrive控制器MAx-4同步和协调包装机的运动功能。使用IEC 1131-3软PLC，它冒险进入以前为标准PLC保留的应用。

单个PLC或定位任务可以分解为几个并行任务，这些任务根据IEC 1131-3标准使用EPAS-4编程环境实现。多达40个伺服轴可以连接到PacDrive控制器MAx-4，并提供定位数据。圆形数字SERCOS实时总线实现了与MC-4电机控制器的安全数据交换。由于使用光纤技术，数据总线对电磁干扰不敏感，并以4MBaud的数据速率周期性地为分散的MC-4电机控制器提供新的设定值。

所有轴的内部状态都可以通过实时总线检查，并在PacDrive控制器MAx-4中进行处理。除了数字和模拟输入和输出，PacDrive控制器MAx-4有两个串行接口和一个以太网接口。各种过程可视化和控制系统可以通过集成的OPC接口连接到PacDrive™M。其他外围组件可以通过现场总线接口模块连接。PacDrive控制器MAx-4可以作为现场总线的主站或从站。

MAX-4/1 1/03/128/08/1/1/00输入输出控制器是一种专 为电子包装机设计的控制器，具有以下特点和功能:

1.效控制:控制器采用基于PC的控制技术，使得控制更加高效和精确。它集成了PacDrive控制器MAx- 4和数字MC-4电机控制器,能够实现快速、

稳定的控制效果。

2.多种输入输出端口:该控制器具备多种输入输出端口，可以连接多种传感器和执行器，实现信号的快速传输和处理。这有助于提高电子包装机的自动

化水平和工作效率。

【英文介绍】

The PacDrive Controller MAx-4 is the intelligent head of the system, and is based on an industrial PC. The PacDrive Controller MAx-4 synchronizes and coordinates the motion functions of the packaging machine. Using an IEC 1131-3 soft PLC, it ventures into applications previously reserved for standard PLCs.

The individual PLC or positioning tasks can be broken down into several parallel tasks, which are implemented with the EPAS-4 programming environment according to the IEC 1131-3 standard. Up to 40 servo axes can be connected to a PacDrive Controller MAx-4 and supplied with positioning data. The circular digital SERCOS real-time bus realizes the safe data exchange with the MC-4 MotorControllers. Due to the use of optical fiber technology, the data bus is insensitive to electromagnetic disturbance and cyclically supplies the decentralized MC-4 MotorControllers with new set values at a data rate of 4MBaud.

All internal states of the axes can be checked via the real-time bus and processed in the PacDrive Controller MAx-4. In addition to digital and analog inputs and outputs, the PacDrive Controller MAx-4 has two serial interfaces and one Ethernet interface. A variety of process visualization and control systems can be connected to the PacDrive™ M via the integrated OPC interface. Further peripheral components can be connected via field bus interface modules. The PacDrive Controller MAx-4 can act as a field bus master or slave.

MAX-4/1 1/03/128/08/1/1/00 Input/Output controller is a controller designed for electronic packaging machines with the following features and functions:

1. Effective control: The controller adopts PC-based control technology, which makes the control more efficient and accurate. It integrates PacDrive controller MAx-4 and digital MC-4 motor controller, enabling fast,

Stable control effect.

2. A variety of input and output ports: The controller has a variety of input and output ports, can be connected to a variety of sensors and actuators, to achieve rapid signal transmission and processing. This helps to improve the automatism of the electronic packaging machine

Level and efficiency of work.
