>>>>>型号:IS200BPVCG1BR1 PCB组件 包括14个插接连接器和6个电阻网络阵列
【功能描述】
IS200BPVCG1BR1是通用电气公司Mark VI系列中使用的PCB组件。Mark VI系列是后来的Speedtronic系统之一。通用电气30年来研究和开发了Speedtronic系统，为重型蒸汽和燃气的管理创造了一个可靠、可扩展、完整的解决方案。
涡轮系统。MarkVI使用了最新的技术和集成的专有软件来创建一个最佳的涡轮管理系统。这包括一台电脑-基于HMI(操作员接口)，运行软件，如通用电气的CIMPLICITY图形。

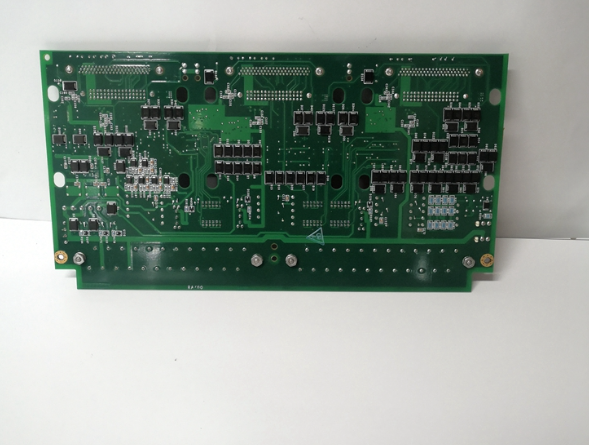

IS200BPVCG1BR1是一个背板，被设计成适合于接受和支持多个板的机架系统。后半部这个板上有21个女性背板连接器.当放置在机架系统中时，板的这一部分将被高高的墙壁包围。支撑和锁定连接板就位。板的另一部分，它容纳输入/输出连接器，被设计成暴露在机架外面。系统。这样操作人员就可以轻松地将带状连接器及其电缆连接到电路板上。有39个i0连接器，它们允许数据。从和连接在背板上的板的转移。IS200BPVCG1BR1还包括14个插接连接器和6个电阻网络阵列。在板的底部有一个额外的Thity组件。这些标记是L1到L30。
【英文介绍】
The IS200BPVCG1BR1 is a PCB component used in the General Electric Company Mark VI series. The Mark VI series is one of the later Speedtronic systems. Ge has researched and developed the Speedtronic system for 30 years to create a reliable, scalable and complete solution for the management of heavy duty steam and gas.
The turbine system. MarkVI uses the latest technology and integrated proprietary software to create an optimal turbine management system. This includes a computer - based on an HMI(operator interface), running software such as GE's CIMPLICITY graphics.
The IS200BPVCG1BR1 is a backplane designed to be suitable for rack systems that accept and support multiple boards. The back half of this board has 21 female backplane connectors. When placed in a rack system, this section of the board will be surrounded by high walls. Support and lock connecting plates in place. The other part of the board, which houses the input/output connectors, is designed to be exposed to the outside of the rack. System. This allows the operator to easily connect the ribbon connector and its cables to the circuit board. There are 39 i0 connectors and they allow data. Transfer from and attached to a plate on a backplane. The IS200BPVCG1BR1 also includes 14 plug connectors and 6 resistance network arrays. There is an additional Thity component at the bottom of the board. These markers are L1 through L30. The board is marked with the manufacturer's logo and has the board number.
