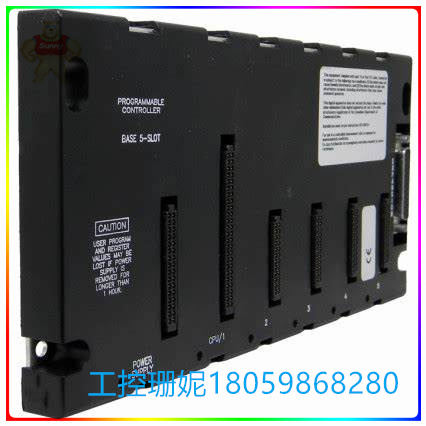

IC693CHS397E 可编程逻辑控制器 5 插槽基板

☆型号：IC693CHS397E 可编程逻辑控制器 5 插槽基板

【产品详情】

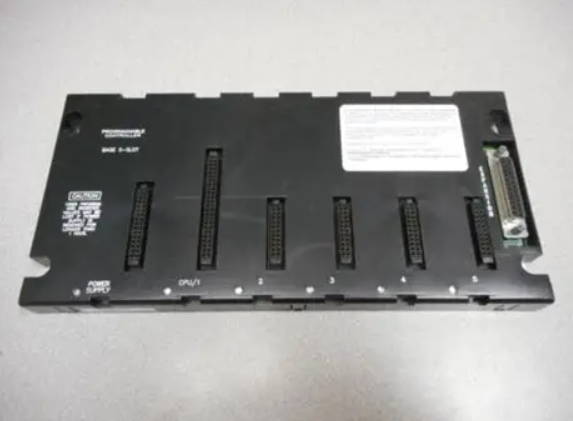

IC693CHS397是 90-30 系列可编程逻辑控制器 （PLC） 系列的 5 插槽基板。在产品系列有效生命周期中，该硬件是 GE Fanuc Automation 的一部分，但 PLC 系列和其他产品最近被艾默生自动化收购。IC693CHS397共有五 （5） 个插槽和另一个专用于电源模块的未计数插槽。此底板具有一 （1） 个专用于中央处理器 （CPU） 或专用模块的插槽、四 （4） 个分配给 I/O 的插槽和选件模块。它还在硬件的最右侧提供了一个扩展槽，可用于机架扩展。此底板上只允许安装一 （1） 个 CPU。此外，CPU 的相同插槽（插槽 1）也设计为与通信模块兼容，例如 FIP 远程 I/O 扫描仪和类似模块。插槽 2 和其他 I/O 插槽具有独特的尺寸，不适合任何其他模块。这提供了连接安全性，并防止在安装过程中损坏其他模块。提供的底板扩展端口是一个 25 针 D 壳母连接器，安装在硬件的最右侧。连接一根扩展电缆或实施多个扩展底板时，请确保电缆的总长度不得超过 50 英尺或 15 米。该IC693CHS397设计用于通过提供的安装片进行面板安装。该硬件尺寸为 10.43 x 5.12 x 5.59 英寸。（宽 x 高 x 深），5 VDC 时内部功耗为 270 mA。

GE Fanuc IC693CHS397 GE Fanuc 90-30 系列的 5 插槽底板，用于托管模块化 CPU 或中央处理器、I/O 和专用模块。IC693CHS397底板有 5 个插槽，用于安装各种 CPU 和其他设备，这些设备构成了一个完整的 PLC 或可编程逻辑控制器。从技术上讲，GE Fanuc IC693CHS397基板总共有 6 个插槽，而不仅仅是 5 个，但左侧的第一个插槽没有编号，因为它始终且仅用于托管电源模块。这个电源插槽的尺寸和形状与编号的 5 个插槽不同，其尺寸和形状只能容纳一个电源，其他不能容纳。

GE Fanuc 系列 90-30 IC693CHS397 5 插槽 CPU 基板中的 5 个主插槽包括 1 个 CPU 插槽（基板得名）和 4 个可承载 I/O 模块的非 CPU 插槽。IC693CHS397基板的最右边缘还有一个 I/O 扩展总线连接器，可用于扩展基板的 I/O 通信功能，超出 4 个 I/O 插槽的处理能力。扩展底板和远程底板可以作为大型 PLC 系统的一部分连接到 IC693CHS397 CPU 底板，但 PLC 中只能有 1 个 CPU 基板。CPU 底板始终安装在 PLC 系统的 0 号机架中。由于IC693CHS397 CPU基板支持模块化CPU，因此在必要时可以轻松更换或升级CPU模块。

☆型号：IC693CHS397E 可编程逻辑控制器 5 插槽基板

【英文介绍】

The IC693CHS397 is a 5-slot substrate for the 90-30 series Programmable Logic Controller (PLC) series. The hardware is part of GE Fanuc Automation during the product family active life cycle, but the PLC family and other products were recently acquired by Emerson Automation. The IC693CHS397 has a total of five (5) slots and another uncounted slot dedicated to the power module. This backboard has one (1) slot dedicated to a central processing unit (CPU) or dedicated module, four (4) slots allocated to I/O, and option modules. It also provides an expansion slot on the far right side of the hardware for rack expansion. Only one (1) CPU is allowed to be installed on this backboard. In addition, the same slot (slot 1) of the CPU is also designed to be compatible with communication modules, such as FIP remote I/O scanners and similar modules. Slot 2 and other I/O slots have a unique size and do not fit into any other module. This provides connection security and prevents damage to other modules during installation. The mainboard expansion port provided is a 25-pin D-shell female connector that is installed on the far right side of the hardware. When connecting a single expansion cable or implementing multiple expansion plates, ensure that the total length of the cable does not exceed 50 feet or 15 meters. The IC693CHS397 is designed for panel mounting via the provided mounting strip. The hardware measures 10.43 x 5.12 x 5.59 inches. (W x H x D), the internal power consumption is 270 mA at 5 VDC.

GE Fanuc IC693CHS397 5-slot baseboard of the GE Fanuc 90-30 series for hosting modular cpus or cpus, I/O, and dedicated modules. The IC693CHS397 baseboard has five slots for mounting various cpus and other devices that make up a complete PLC or programmable logic controller. Technically, the GE Fanuc IC693CHS397 substrate has a total of six slots, not just five, but the first slot on the left side is not numbered as it is always and only used to host the PSU. The size and shape of this power socket is different from the numbered five slots, and its size and shape can only accommodate one power supply, and the others cannot.

GE Fanuc Series 90-30 IC693CHS397 5 Slot The five primary slots on the CPU base board include one CPU slot (the name of the base board) and four non-CPU slots for I/O modules. The IC693CHS397 substrate also has an I/O expansion bus connector on its rightmost edge, which can be used to extend the I/O communication capabilities of the substrate beyond the processing capacity of four I/O slots. Expansion and remote backboards can be connected to IC693CHS397 CPU backboards as part of a large PLC system, but only one CPU baseboard can be included in the PLC. The CPU baseboard is always installed in Rack 0 of the PLC system. Since the IC693CHS397 CPU baseboard supports modular cpus, CPU modules can be easily replaced or upgraded if necessary.
