IC693CHS392J 平台兼容扩展底板 实现特殊功能

☆型号：IC693CHS392J 平台兼容扩展底板  实现特殊功能

【产品详情】

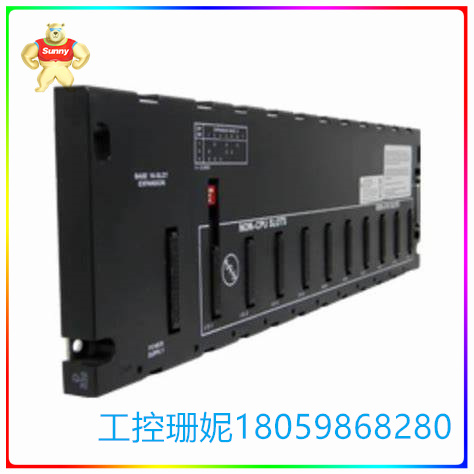

IC693CHS392是 90-30 系列平台兼容扩展底板。该硬件允许对承载 90-30 系列模块的附加底板进行互连，以最大限度地提高中央控制器的功能并符合系统的控制要求，特别是为了容纳更多数量的 I/O 点并实现特殊功能。该IC693CHS392以前由 GE Fanuc Automation 制造，现在被 Emerson Automation 收购。该底板提供十 （10） 个安装插槽，最多可安装 10 个 90-30 系列标准 I/O 模块和选件模块。该底板与 CPU 331、340 和 341 兼容，其中最多可以互连四 （4） 个底板，CPU 350 及更高版本最多可以安装七 （7） 个。将底板与 CPU 底板互连时，最大电缆长度不得超过 50 英尺或 15 米，否则 CPU 无法识别扩展底板或整个配置无效。此外，PCM、ADC、BEM330 和 CMM 模块等智能模块与安装到扩展基板不兼容。这些模块安装在 CPU 基板上。除了 I/O 插槽外，该基板还提供了一个电源插槽，用于通电和配电的电源模块安装在那里。还提供扩展端口，允许其他扩展基板互连。该底板仅设计用于面板安装，通过位于硬线最左侧和右侧的安装卡舌固定。还必须遵守适当的接地，以保护模块并最大限度地降低电气噪声。

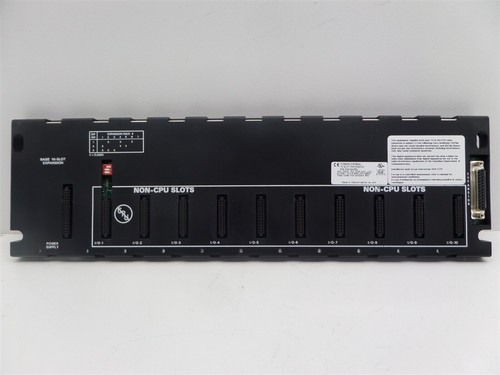

IC693CHS392底板是GE Fanuc的扩展底板。它与 90-30 系列 GE PLC 系统兼容。它是一个 PLC 机箱，但它也可以用作位于不同位置的其他 I/O 的扩展。底板与PLC系统一起使用，或将其与使用PCI卡的个人计算机连接。根据CPU型号的不同，它一次最多可以连接7个CPU。底板的额定电压为 5 伏直流电。它的额定电流为 150 毫安。底板长443毫米，宽142毫米，高130毫米。IC693CHS392底板右侧配有 25 针母 D 型 I/O 扩展连接器，可与其他基板高效连接。

IC693CHS392底板有一个电源端口、一个 CPU 插槽和非 CPU 插槽。它可以很容易地安装在 90-30 系列 PLC 系统中。底板中还有一个 DIP 开关以及所有插槽。IC693CHS392底板采用开放式架构，在安装和更换过程中可以轻松访问。它只能用于室内应用，并且应彻底防止水溅。底板应远离所有灰尘和热源。扩展插槽支持许多设备，但不支持 PCM、ADC 和 CMM 等智能选件模块。在安装过程中，互连扩展底板与CPU底板之间的距离不应超过15米。

☆型号：IC693CHS392J 平台兼容扩展底板  实现特殊功能

【英文介绍】

The IC693CHS392 is a compatible expansion baseboard for the 90-30 series platform. The hardware allows the interconnection of additional baseboards carrying the 90-30 series modules to maximize the functionality of the central controller and comply with the control requirements of the system, in particular to accommodate a greater number of I/O points and to enable special functions. The IC693CHS392 was previously manufactured by GE Fanuc Automation and is now being acquired by Emerson Automation. The baseplate provides ten (10) mounting slots for up to ten 90-30 Series standard I/O modules and optional modules. This backboard is compatible with cpus 331, 340, and 341, where up to four (4) backboards can be interconnected, and up to seven (7) can be installed with cpus 350 and later. When interconnecting the backboard to the CPU backboard, the maximum cable length must not exceed 50 feet or 15 meters, otherwise the CPU will not recognize the extended backboard or the entire configuration is invalid. In addition, smart modules such as PCM, ADC, BEM330 and CMM modules are not compatible with installation to the expansion substrate. These modules are installed on the CPU baseboard. In addition to the I/O slot, the substrate also provides a power slot where the power modules for powering and distributing power are installed. Expansion ports are also provided to allow interconnection of other expansion substrates. The base plate is designed for panel mounting only and is secured by mounting latches located to the far left and right of the hard wire. Proper grounding must also be observed to protect the module and minimize electrical noise.

The IC693CHS392 baseboard is an extension baseboard of GE Fanuc. It is compatible with the 90-30 series GE PLC systems. It is a PLC chassis, but it can also be used as an extension for other I/ OS located in different locations. The backboard is used with a PLC system or connected to a personal computer using a PCI card. Depending on the CPU model, it can connect up to seven cpus at a time. The rated voltage of the base plate is 5 volts DC. It has a rated current of 150 mA. The base plate is 443 mm long, 142 mm wide and 130 mm high. The IC693CHS392 is equipped with a 25-pin female D-type I/O expansion connector on the right side of the base plate for efficient connection with other substrates.

The IC693CHS392 baseboard has one power port, one CPU slot, and one non-CPU slot. It can be easily installed in the 90-30 series PLC system. There is also a DIP switch and all the slots in the base plate. The IC693CHS392 backboard has an open architecture that allows easy access during installation and replacement. It should only be used in indoor applications and should be thoroughly protected against water splashing. The bottom plate should be free from all dust and heat sources. Expansion slots support many devices, but not smart option modules such as PCM, ADC, and CMM. During installation, the distance between the interconnect expansion backboard and the CPU backboard should not exceed 15 meters.
