☆型号：IC693CHS391E/G 模块化 CPU 底板  包含连接端口

【产品详情】

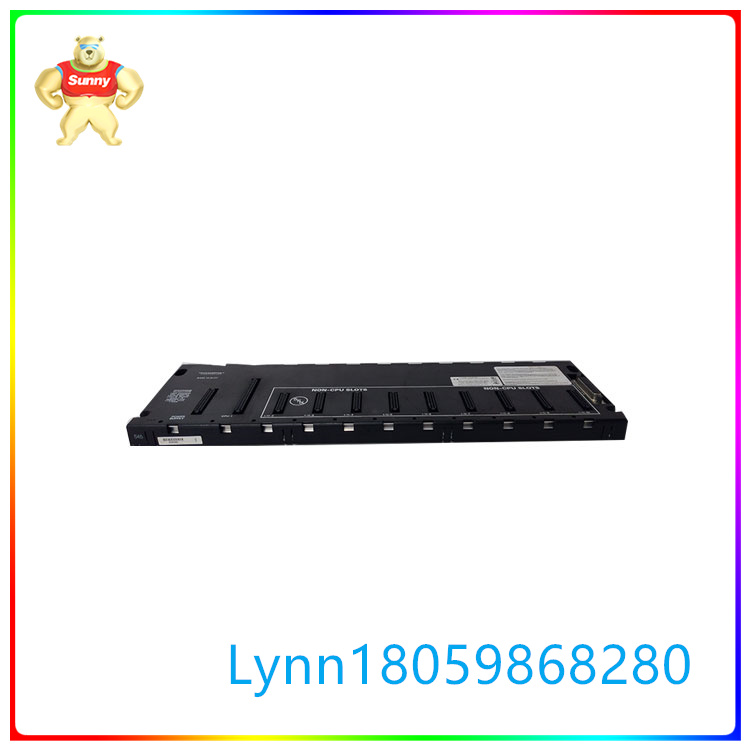

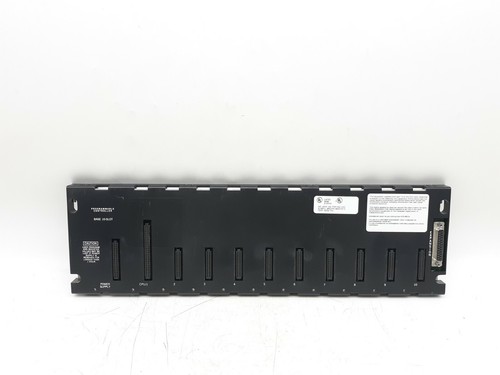

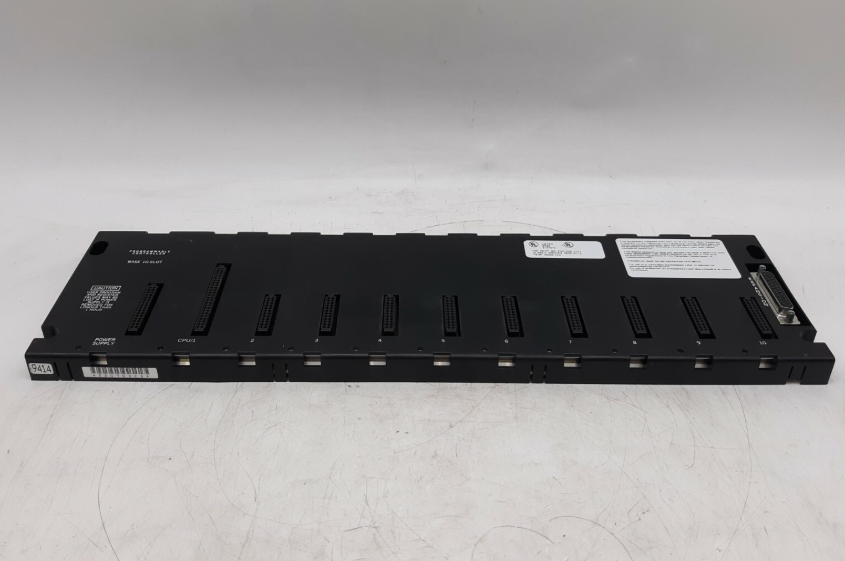

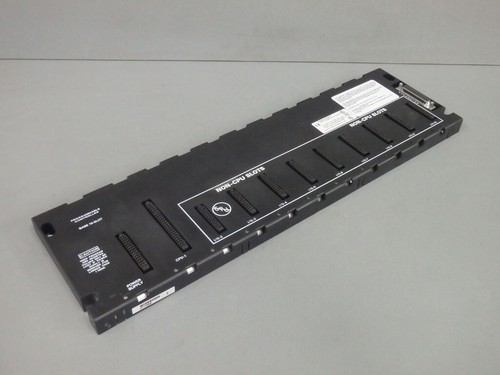

IC693CHS391是模块化 CPU 底板。该底板是 GE Fanuc 制造的 90-30 系列的一部分。该设备包含连接端口，允许模块化 CPU、I/O 模块和电源模块安装。它总共有十 （10） 个插槽，其中一 （1） 个插槽分配给 CPU，九 （9） 个插槽用于 I/O 模块。电源插槽和总线扩展端口不包括在插槽数中。

由于这是一个模块化的 CPU 插槽，因此默认情况下分配的节点地址为 0，可以通过编程软件进行修改。系统仅支持一 （1） 个模块化 CPU 插槽。系统中的其他插槽可以是扩展或远程 I/O 底板。

电源安装在最左边的插槽中，不包括在插槽计数中，允许该底板支持更多的 I/O。CPU 仅安装在插槽 1 上，因为此插槽特别适合 CPU 连接或特殊选项模块，例如 FIP 总线远程 I/O 扫描器。插槽编号 2 及更高，特别适合 I/O 或选件模块。扩展或远程 I/O 底板通过底板最右侧的扩展端口连接。根据IC693CHS391托管的 CPU，IC693CHS391 模块化 CPU 基板最多支持四 （4） 或七 （7） 个扩展基板。该底板仅支持面板安装，通过提供的安装孔通过螺钉和垫圈固定。

IC693CHS391底板是GE Fanuc制造的膨胀底板，配有10个插槽。它的额定电流为 420 mA，额定电压为 5 伏直流电。它配备了一个拨码开关。扩展底板与其他模块一起连接到 90-30 系列 PLC。电源模块插入基板的左侧插槽。IC693CHS391底板是模块化的，并有一个开放式的外壳。如果需要额外的功能，它可以轻松安装和更换或更改为不同的类型。板的左侧有一个电源端口，以及用于 CPU 和非 CPU 插槽的连接插槽。它的右侧还有一个 25 针母连接器，用于连接扩展和远程底板。

☆型号：IC693CHS391E/G 模块化 CPU 底板  包含连接端口

【英文介绍】

IC693CHS391 is a modular CPU mainboard. The baseplate is part of the 90-30 series manufactured by GE Fanuc. The device includes connection ports that allow modular CPU, I/O modules, and power modules to be installed. It has a total of ten (10) slots, of which one (1) slot is allocated for the CPU and nine (9) slots for the I/O module. Power sockets and bus expansion ports are not included in the number of slots.

Since this is a modular CPU slot, the node address assigned by default is 0, which can be modified by programming software. The system supports only one (1) modular CPU slot. Other slots in the system can be expansion or remote I/O backboards.

The power supply is installed in the leftmost slot and is not included in the slot count, allowing this baseboard to support more I/O. The CPU is only installed on slot 1, as this slot is particularly suitable for CPU connections or special option modules, such as FIP bus remote I/O scanners. Slot numbers 2 and higher, especially for I/O or option modules. The extension or remote I/O baseboard connects to the extension port on the far right of the baseboard. The IC693CHS391 modular CPU baseboard supports up to four (4) or seven (7) expansion baseboards depending on the CPU hosted by the IC693CHS391. The baseplate supports panel mounting only and is secured by screws and washers through the provided mounting holes.

The IC693CHS391 baseplate is an expansion baseplate manufactured by GE Fanuc with 10 slots. It has a rated current of 420 mA and a rated voltage of 5 volts DC. It is equipped with a dip switch. The expansion backboard is connected to the 90-30 series PLC along with other modules. Insert the power module into the left slot of the baseboard. The IC693CHS391 baseplate is modular and has an open housing. If additional features are needed, it can be easily installed and replaced or changed to a different type. The left side of the board has a power port, as well as connection slots for CPU and non-CPU slots. It also has a 25-pin female connector on the right side for connecting expansion and remote backboards.
