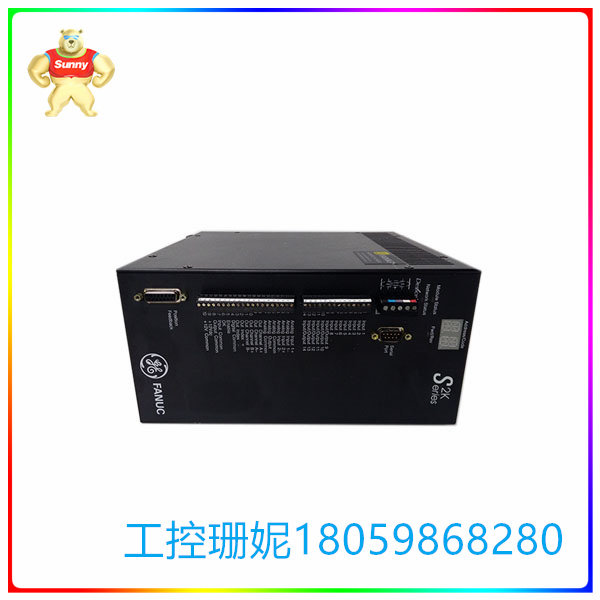

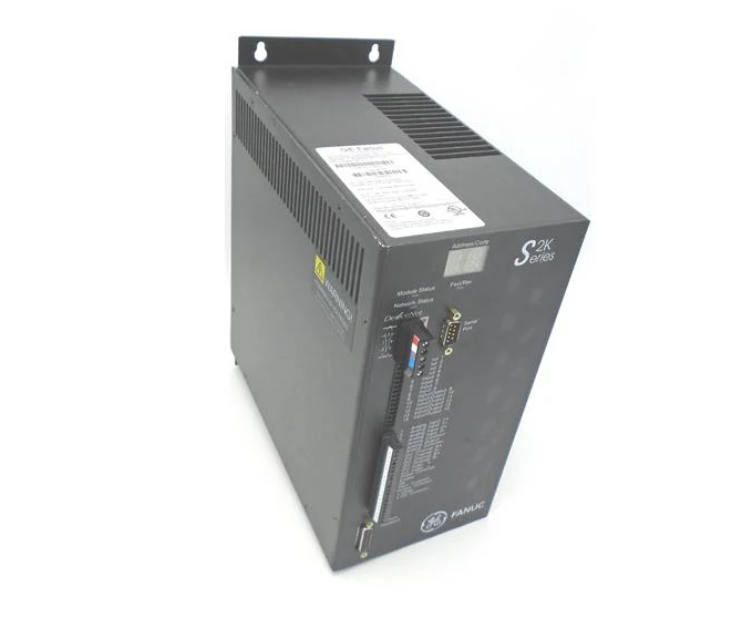

IC800SSI216RD2 伺服电机控制器 具有位置反馈

☆型号：IC800SSI216RD2 伺服电机控制器 具有位置反馈

【产品详情】

IC800SSI216RD2是GE FANUC VersaMotion伺服电机控制器。 该控制器是具有 3 相输入的 180-250 VAC 设备。它支持DeviceNet编程。该控制器具有位置反馈、串行端口以及 8 个离散输入和输出。该设备的前面板还显示模块状态、网络状态、地址/代码和前驱/反向。双字符 LED 显示屏允许使用助记符显示实时诊断更新，例如“OK”、“OV”（用于电机过压）、LE（用于丢失启用）等。

该IC800SSI216RD2设计用于特定系列的电机。这包括 MTR-3S45-H、MTR-3S46H、MTR-3S63-G、MTR-3S65-G、MTR-3S67-G、MTR-3T45-1、MTR-3T54-H 和 MTR-3T55-H。这些电机的连续失速扭矩范围为 32 至 150.3 in-lb，额定转速为 1,400 至 5,300 RPM。有关具体信息，请参阅GE数据表。

十多年前，GE Fanuc 将 Whedco Inc. 的 IMJ 型号整合到 S2K 系列中。如果您要更换这些控制器之一，请注意该IC800SSI216RD2与 IMJ-31GD-2-D 伺服电机控制器兼容，带有 DeviceNet 的 16A 旋转变压器反馈。

IC800SSI216RD2的工作温度为 0 至 50 摄氏度。它的储存和运输温度为 -40 至 80 摄氏度，湿度为 5% 至 95%，无冷凝。散热器方向必须是垂直的。请注意，该装置的额定运行高度为 3,300 英尺;在咨询 GE 之前，不应进行更高海拔的操作。 该模块设计用于安装，四面间隙为 3 英寸，以实现有效冷却。

☆型号：IC800SSI216RD2 伺服电机控制器 具有位置反馈

【英文介绍】

The IC800SSI216RD2 is a GE FANUC VersaMotion servo motor controller. The controller is a 180-250 VAC device with 3 phase inputs. It supports DeviceNet programming. The controller has position feedback, serial ports, and 8 discrete inputs and outputs. The front panel of the device also displays module status, network status, address/code, and front-end/reverse. The two-character LED display allows the use of mnemonics to display real-time diagnostic updates, such as "OK", "OV" (for motor overvoltage), LE (for lost enablement), etc.

The IC800SSI216RD2 is designed for use with a specific family of motors. This includes MTR-3S45-H, MTR-3S46H, MTR-3S63-G, MTR-3S65-G, MTR-3S67-G, MTR-3T45-1, MTR-3T54-H, and MTR-3T55-H. These motors have a continuous stall torque range of 32 to 150.3 in-lb and are rated at 1,400 to 5,300 RPM. Refer to the GE data sheet for specific information.

More than a decade ago, GE Fanuc integrated Whedco Inc. 's IMJ models into the S2K series. If you are replacing one of these controllers, note that the IC800SSI216RD2 is compatible with the IMJ-31GD-2-D servo motor controller with 16A rotary transformer feedback from DeviceNet.

The IC800SSI216RD2 operates from 0 to 50 degrees Celsius. It is stored and transported at a temperature of -40 to 80 degrees Celsius, with a humidity of 5 to 95 percent and no condensation. The direction of the radiator must be vertical. Please note that the unit is rated to operate at 3,300 feet; Operations at higher altitudes should not be performed without consulting GE. The module is designed for installation with a 3-inch clearance on all four sides for effective cooling.

☆型号：IC800SSI216RD2 伺服电机控制器 具有位置反馈
