IS215UCVGH1A GE Mark VI UCV控制器 电路板组件

☆型号：IS215UCVGH1A GE Mark VI UCV控制器 电路板组件

【产品详情】

IS215UCVGH1A是GE为Mark VI系统创建的带有面板的电路板组件。MKVI 是通用电气作为 Speedtronic 系列的一部分发布的蒸汽和燃气轮机管理系统。 Speedtronic 系列始于 1969 年，一直持续到 1990 年代 Mark VI/Mark VIe 的发布。

MKVI有五个版本的UCV控制器。IS215UCVGH1A是控制器的单插槽版本。任何以前的控制器都可以直接更换为IS215UCVGH1A。如果主板替换了早期版本的控制器，则不需要背板升级。IS215UCVGH1A安装到 VME 机架中。

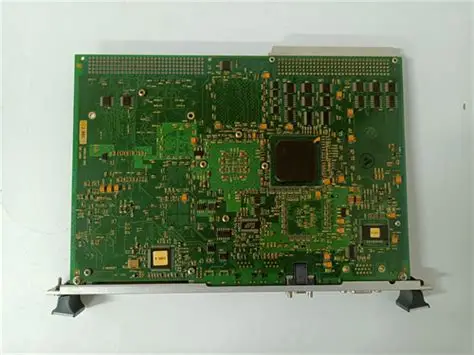

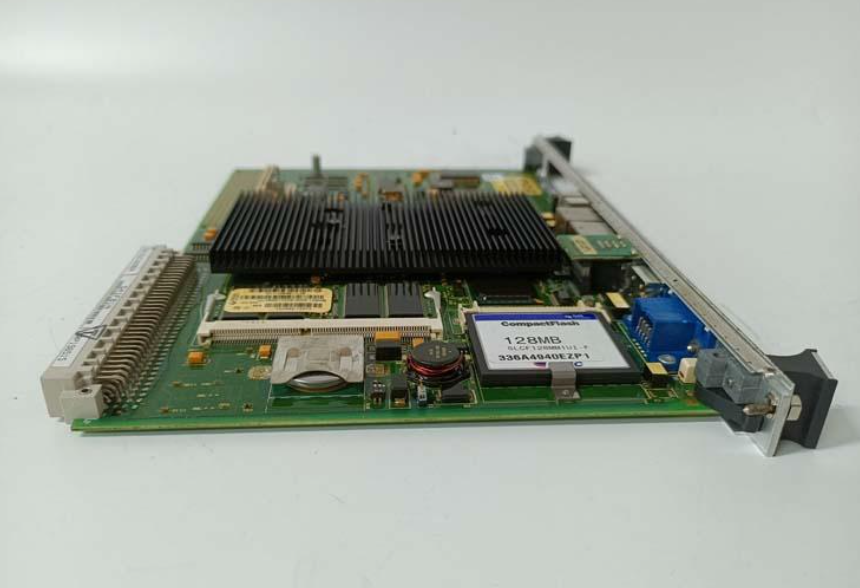

该IS215UCVGH1A采用英特尔的超低压赛扬 650 处理器芯片。该芯片具有 128MB 的 SDRAM 和 128 MB 的闪存。该板具有前面板。面板有一个复位开关，后跟一个 SVGA 监视器端口。有一个键盘/鼠标端口和两个 COM 端口（并排，标记为 1 和 2。该板有两个相互堆叠的以太网端口。它们被标记为 LAN1 和 LAN2。有两个独立的 USB 连接器、四个 LED 指示灯和一个面板开口。

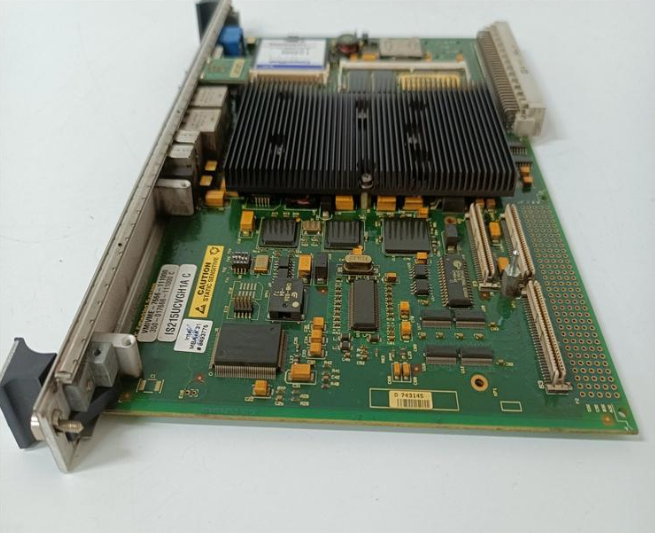

IS215UCVGH1A板由多个辅助板填充。在某些地方有支架，如果添加辅助设备，可以接受辅助设备。该板具有单个背板。电路板表面有电容器、电感线圈、晶体振荡器、振荡芯片、跳线开关和集成电路。

☆型号：IS215UCVGH1A GE Mark VI UCV控制器 电路板组件

【英文介绍】

The IS215UCVGH1A is a circuit board component with a panel created by GE for the Mark VI system. MKVI is a steam and gas turbine management system released by General Electric as part of the Speedtronic family. The Speedtronic series began in 1969 and continued until the release of Mark VI/Mark VIe in the 1990s.

The MKVI has five versions of the UCV controller. The IS215UCVGH1A is a single-slot version of the controller. Any previous controller can be replaced directly with the IS215UCVGH1A. If the motherboard replaces an earlier version of the controller, there is no need for a backplane upgrade. IS215UCVGH1A Installed in the VME rack.

The IS215UCVGH1A uses Intel's ultra-low voltage Celeron 650 processor chip. The chip has 128MB of SDRAM and 128MB of flash memory. The board has a front panel. The panel has a reset switch followed by an SVGA monitor port. There is a keyboard/mouse port and two COM ports (side by side, labeled 1 and 2. The board has two Ethernet ports stacked on top of each other. They are labeled LAN1 and LAN2. There are two separate USB connectors, four LED indicators, and a panel opening.

The IS215UCVGH1A board is filled with multiple auxiliary boards. There are brackets in some places, and auxiliary equipment can be accepted if added. The board has a single backplane. On the surface of the circuit board are capacitors, inductors, crystal oscillators, oscillating chips, jumper switches and integrated circuits.
