IC693NIU004 可编程逻辑控制器 以太网网络接口单元

☆型号：IC693NIU004 可编程逻辑控制器  以太网网络接口单元

【产品详情】

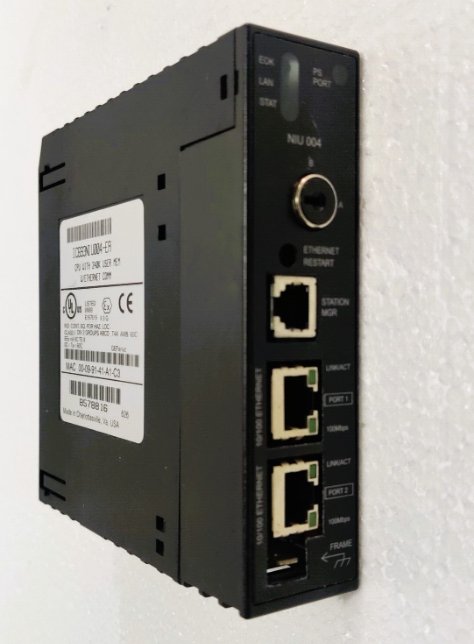

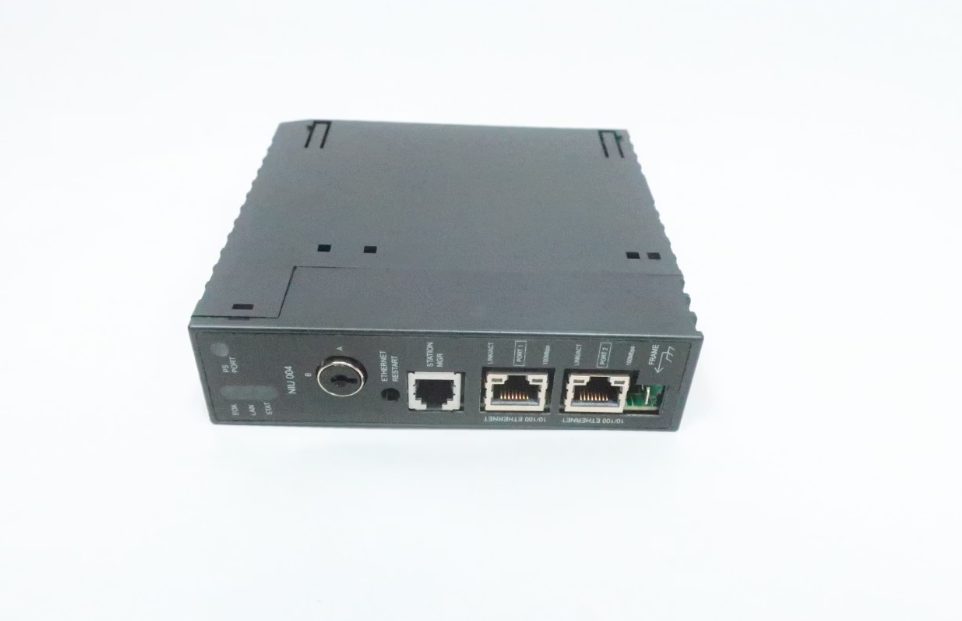

IC693NIU004是 90-30 系列可编程逻辑控制器 （PLC） 模块。这具体来说是一个以太网网络接口单元 （NIU），主要用于在以太网网络上实现分布式 I/O 架构，利用以太网全局数据 （EGD） 协议交换 I/O 数据，通过单工或容错以太网网络拓扑监视和控制远程系统。该IC693NIU004配备两 （2） 个以太网通信接口，具有自动感应、自动协商功能，支持 10/100 Mbps 的传输速率。这些端口使用一 （1） 个 IP 地址，因此用作内置以太网交换机，可用于线性、星形和环形拓扑。该模块具有处理和处理多达 2048 个离散输入 （%I） 的能力;2048 离散输出 （%Q）;1268 个模拟输入字 （%AI） 和 512 个模拟输出字 （%AQ）。除了这些用于物理 I/O 的寄存器外，IC693NIU004还内置了 4096 内部线圈存储器;256 位临时输出线圈和 9999 寄存器存储器。该模块支持多达 8 个基板的互连，包括一 （1） 个 CPU 基板和七 （7） 个扩展和远程基板。该IC693NIU004还支持安全实时传输协议 （SRTP） 服务器。IC693NIU004 带有状态 LED 指示灯，例如 EOK、LAN、STAT 和 PS PORT。它还配有一个以太网重启按钮，可用于重新初始化模块，而无需断开电源或使用编程软件。用于此模块的适当编程软件包是 CIMPLICITY Machine Edition Logic Developer 4.0 Service Pack 3，带有 Special 4 或更高版本。

GE Fanuc IC693NIU004以太网网络接口通过内置的10/100 Base-T/TX以太网交换机，为GE Fanuc系列90-30可编程逻辑控制器与工业以太网协议的连接提供了一个网关。该以太网接口模块配备了两个具有自动感应功能的 RJ45 端口。多达 2,048 个离散输入和 2,048 个离散输出可通过以太网协议连接、监控和控制。GE Fanuc IC693NIU004以太网网络接口还可以处理多达 1268 个模拟输入和多达 512 个模拟输出。凭借如此高速和准确的处理和数据传输能力，该以太网网络接口模块非常适合跨越大量现场设备的工业应用过程。

☆型号：IC693NIU004 可编程逻辑控制器  以太网网络接口单元

【英文介绍】

The IC693NIU004 is a 90-30 series programmable logic controller (PLC) module. This is specifically an Ethernet Network Interface Unit (NIU), which is mainly used to implement a distributed I/O architecture on an Ethernet network, exchange I/O data using the Ethernet Global Data (EGD) protocol, and monitor and control remote systems through a simplex or fault-tolerant Ethernet network topology. The IC693NIU004 is equipped with two (2) Ethernet communication interfaces, with automatic sensing, automatic negotiation functions, and supports 10/100 Mbps transmission rates. These ports use one (1) IP address and are therefore used as built-in Ethernet switches that can be used in linear, star, and ring topologies. The module has the ability to process and process up to 2048 discrete inputs (%I); 2048 Discrete output (%Q); 1268 analog input words (%AI) and 512 analog output words (%AQ). In addition to these registers for physical I/O, the IC693NIU004 has a built-in 4096 internal coil memory; 256-bit temporary output coil and 9999 register memory. The module supports interconnection of up to eight substrates, including one (1) CPU substrate and seven (7) extension and remote substrates. The IC693NIU004 also supports Secure Real-time Transport Protocol (SRTP) servers. The IC693NIU004 comes with status LED indicators such as EOK, LAN, STAT, and PS PORT. It also comes with an Ethernet restart button that can be used to re-initialize the module without disconnecting the power or using programming software. The appropriate programming package for this module is CIMPLICITY Machine Edition Logic Developer 4.0 Service Pack 3, with Special 4 or later.

GE Fanuc IC693NIU004 Ethernet network interface provides a gateway for GE Fanuc series 90-30 programmable logic controllers to connect to industrial Ethernet protocols through the built-in 10/100 Base-T/TX Ethernet switch. The Ethernet interface module is equipped with two RJ45 ports with automatic sensing. Up to 2,048 discrete inputs and 2,048 discrete outputs can be connected, monitored and controlled via Ethernet protocols. The GE Fanuc IC693NIU004 Ethernet network interface can also handle up to 1268 analog inputs and up to 512 analog outputs. With such high speed and accurate processing and data transfer capabilities, the Ethernet network interface module is ideal for industrial application processes spanning a large number of field devices.
