IC200MDL750G 高密度数字输出模块 激励电气负载

☆型号：IC200MDL750G  高密度数字输出模块  激励电气负载

【产品详情】

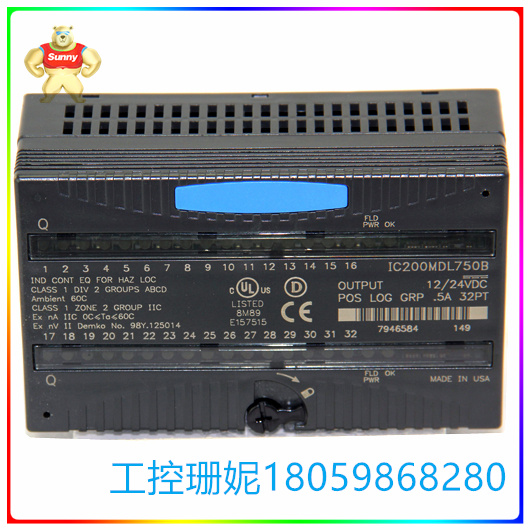

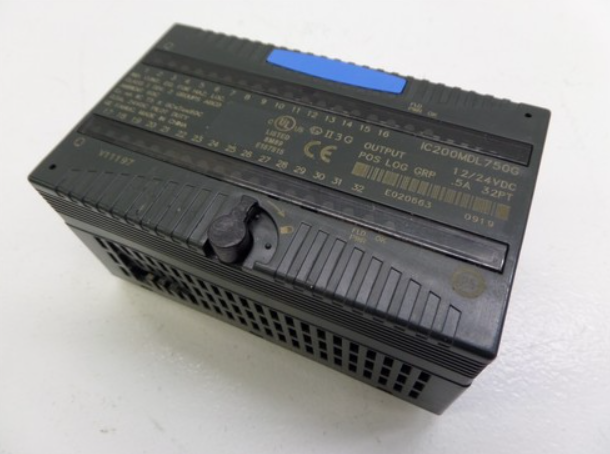

IC200MDL750是一个高密度数字输出模块，由艾默生自动化（前身为GE智能平台（GE IP））制造。该模块主要具有三十二 （32） 个输出通道，分为两 （2） 组，每组十六 （16） 个输出通道。该模块通常用于驱动或激励电气负载，例如螺线管驱动装置、继电器线圈、指示灯和其他仅具有双态操作的设备，特别是二进制或开和关。它与额定电压为 24 VDC 的设备兼容，因为IC200MDL750的标称电压输出为 12 / 24 VDC，输出电压范围为 10.2 - 30 VDC，每通道输出电流为 0.5 A。

该IC200MDL750是 VersaMax I/O 平台的一部分，旨在用作分布式 I/O 架构的组件模块。它需要使用承载模块接线端子的载波底座。通过托架底座，模块可以水平或垂直方向安装在标准的 35 mm DIN 导轨上。

IC200MDL750物理尺寸为 110 毫米（4.3 英寸）x 66.8 毫米（2.63 英寸）x 50 毫米（1.956 英寸），不包括托架底座的尺寸。与其他 I/O 模块类似，每个输出通道都配有一个单独的 LED 状态指示灯，用于本地监控每个通道模块的活动。此外，还提供一个 OK LED，用于显示来自背板的有源电源，最大电流为 90 mA。

IC200MDL750 模块是 Versamax 输出模块。它是一个 32 点输出模块，额定电压为 24 伏直流电。它每点的额定电流为 0.5 安培。它消耗的背板电流为 90 毫安。它尺寸紧凑，重量为 0.90 公斤。IC200MDL750模块是一个正逻辑输出模块，具有 2 组 16 路输出。总共 32 个输出有一个 DC+ 端子和一个 DC- 端子。当接线与感性负载连接时，输出模块使用外部抑制电路。该模块经认证可在 I 类 2 级额定危险场所运行。

这些模块具有通道 LED，当存在现场电源时会亮起。这些通道的最大导通响应时间为 0.2 毫秒，关断响应时间最大为 1 毫秒。IC200MDL750模块的输出泄漏电流为 0.5 毫安，直流电压为 30 毫安。输出模块可通过DIN导轨轻松安装。模块温度应保持在 0 到 30 摄氏度之间，以避免热降额。一次可以操作的点数取决于环境温度和模块的方向。

☆型号：IC200MDL750G  高密度数字输出模块  激励电气负载

【英文介绍】

The IC200MDL750 is a high-density digital output module manufactured by Emerson Automation (formerly GE Intelligent Platform (GE IP)). The module mainly has thirty-two (32) output channels divided into two (2) groups, each group of sixteen (16) output channels. The module is commonly used to drive or excite electrical loads, such as solenoid drives, relay coils, indicator lights, and other devices with only two-state operation, especially binary or on and off. It is compatible with devices with A rated voltage of 24 VDC, as the IC200MDL750 has a nominal voltage output of 12/24 VDC with an output voltage range of 10.2-30 VDC and an output current of 0.5 A per channel.

The IC200MDL750 is part of the VersaMax I/O platform and is designed to be used as a component module for distributed I/O architectures. It requires the use of a carrier base that carries the module terminal. Through the bracket base, the module can be mounted horizontally or vertically on standard 35 mm DIN rails.

The IC200MDL750 has physical dimensions of 110 mm (4.3 in) x 66.8 mm (2.63 in) x 50 mm (1.956 in), not including the dimensions of the carrier base. Similar to other I/O modules, each output channel is equipped with a separate LED status indicator for local monitoring of the activity of each channel module. In addition, an OK LED is provided to display the active power supply from the backplane with a maximum current of 90 mA.

The IC200MDL750 module is the Versamax output module. It is a 32-point output module with a rated voltage of 24 volts DC. It has a rated current of 0.5 amps per point. It consumes 90 milliamps of backplane current. It is compact in size and weighs 0.90 kg. The IC200MDL750 module is a positive logic output module with 2 groups of 16 outputs. A total of 32 outputs have one DC+ terminal and one DC-terminal. When the wiring is connected to an inductive load, the output module uses an external suppression circuit. The module is certified to operate in Class I, Level 2 rated hazardous sites.

These modules have channel leds that light up when field power is present. These channels have a maximum turn-on response time of 0.2 ms and a maximum turn-off response time of 1 ms. The output leakage current of the IC200MDL750 module is 0.5 MA and the DC voltage is 30 mA. The output module can be easily installed via DIN rail. The module temperature should be kept between 0 and 30 degrees Celsius to avoid heat derating. The number of points that can be operated at a time depends on the ambient temperature and the orientation of the module.
