☆型号：DS3815PAHB1A1A 印刷电路板 具有互连的微型计算机
【产品详情】
DS3815PABA1A1B是GE为Mark IV系统创建的较小的PCB（印刷电路板）。MKIV用于蒸汽/燃气轮机控制，具有互连的微型计算机，并在所有关键控制装置上都进行了有意的冗余备份。MKIV 设计用于控制启动、关断、控制时序、温度、电源和速度控制等应用。与 GE 的首款 Speedtronic 系统 MKI 和 MKII 相比，该系统具有改进的接口并降低了涡轮机停机率。

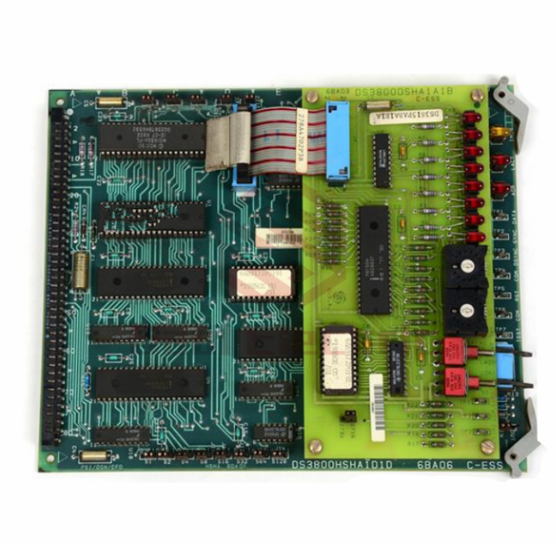

DS3815PABA1A1B是用于更大 PCB 的子板。它通过 278A4702P3B 带状连接器与较大的电路板进行通信和连接。该板在各个角落都经过工厂钻孔，以连接到更大的PCB。
该DS3815PABA1A1B由三个 TP 测试点构成。测试点标记为 SIM2、COM 和 SIM1。它们位于两个拨动开关旁边。这些开关中的第一个可以设置为 CONT 或 SS，第二个可以设置为 WR 或 LADR。该板还装有两个拇指轮开关 （1A213034GF），它们有 10 个图例位置。这些组件具有特殊的转子标记和止动销，使用户能够创建自定义接口。
DS3815PABA1A1B有八个 LED（发光二极管）。都是红色的。LED 的编号从 0 到 7。
DS3815PABA1A1B由四个电路组成。代码 9172 P0191 已添加到一个电路中。八通道缓冲器/线路驱动器包含在其他电路中。位于电路板上的单跳线开关可以设置为 2732 或 2716。
☆型号：DS3815PAHB1A1A 印刷电路板 具有互连的微型计算机
【英文介绍】
The DS3815PABA1A1B is a smaller PCB (printed circuit board) created by GE for the Mark IV system. The MKIV is used for steam/gas turbine control, has an interconnected microcomputer, and has intentional redundant backup on all critical control devices. The MKIV is designed for applications such as startup, shutdown, control timing, temperature, power, and speed control. Compared to GE's first Speedtronic systems, the MKI and MKII, the system features improved interfaces and reduced turbine downtime.
The DS3815PABA1A1B is a daughter board for larger PCBS. It communicates and connects to the larger circuit board via a 278A4702P3B ribbon connector. The board is factory drilled at all corners to connect to a larger PCB.
The DS3815PABA1A1B consists of three TP test points. The test points are labeled SIM2, COM, and SIM1. They are located next to two toggle switches. The first of these switches can be set to CONT or SS and the second can be set to WR or LADR. The board also houses two thumb wheel switches (1A213034GF), which have 10 legend positions. These components feature special rotor markers and stop pins that enable users to create custom interfaces.
The DS3815PABA1A1B has eight leds (light emitting diodes). They're all red. Leds are numbered from 0 to 7.
The DS3815PABA1A1B consists of four circuits. Code 9172 P0191 has been added to a circuit. Eight-channel buffers/line drivers are included in other circuits. The single jumper switch located on the board can be set to 2732 or 2716.
