IC693MDL930G 分立式输出模块 数字量输出模块

☆型号：IC693MDL930G   分立式输出模块  数字量输出模块

【产品详情】

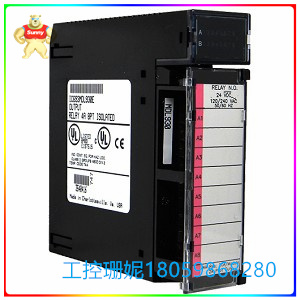

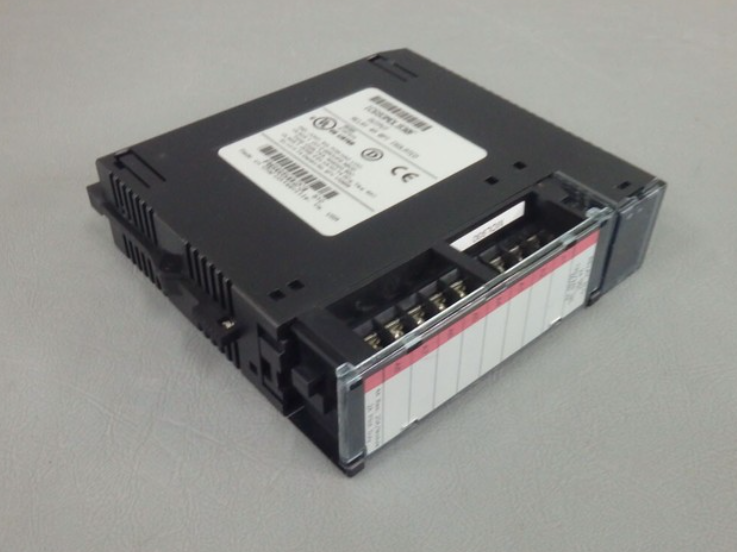

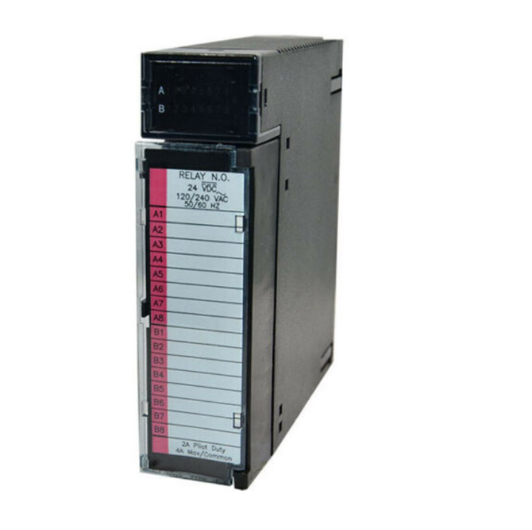

该IC693MDL930是一个分立式输出模块，是 90-30 系列可编程逻辑控制器 （PLC） 系列的一部分，该系列以前由 GE Fanuc 制造，现在隶属于艾默生自动化。该模块是一个单插槽宽度、八 （8） 个独立隔离的 A 型输出常开 （N.O.） 触点，兼容 90-30 系列模块化和嵌入式中央处理器 （CPU） 模块组件作为本地和分布式 I/O 组件使用。此外，该模块还支持现代 RX3i 和 RX7i 系统作为分布式输出模块。该模块与电机起动器、电磁驱动装置和指示灯兼容。IC693MDL930触点输出的额定电流为 4 安培，对于每个点的阻性负载最大值;每个点的先导工作负载为 2 安培，UL 安装的每个模块为 20 安培，而模块的最小负载为 10 mA。每个触点输出可在 24 VDC 和 120 / 240 VDC 的标称电压下工作，而工作电压范围为 5-30 VDC / 5-250 VAC，频率为 50/60 Hz。它还产生 5 安培的最大浪涌电流，而最大通道响应时间为 15 ms，用于开和关信号转换。该模块的内部功耗为 6 mA，所有输出均来自背板上的 5 V 总线，而所有输出均来自背板上的继电器 24V 总线，内部功耗为 70 mA。通过单独的隔离，每个输出通道都可以在不同的电压下工作，从而提供最大的操作灵活性。该模块的隔离额定值为现场侧和逻辑侧之间的 1500 伏，通道之间的隔离额定值为 500 伏。

GE IC693MDL930模块是数字量输出模块。IC693MDL930输出模块可以安装在GE Fanuc 90-30 PLC系统中5插槽或10插槽背板的任何插槽中。IC693MDL930模块有 8 个常开继电器电路，用于管理用户负载。单个模块输出的输出开关容量为 4 安培。每个模块输出与其他模块输出隔离，每个模块输出都有自己的公共端子。IC693MDL930模块不包括任何保险丝。连接到模块输出的用户现场设备的电源需要由用户提供。显示每个输出点状态的 LED 指示灯位于模块的顶部。

☆型号：IC693MDL930G   分立式输出模块  数字量输出模块

【英文介绍】

The IC693MDL930 is a discrete output module that is part of the 90-30 series Programmable Logic Controller (PLC) family, formerly manufactured by GE Fanuc and now owned by Emerson Automation. The module is A single slot width, eight (8) independently isolated Type A output normally open (N.O.) contacts, compatible with Series 90-30 modular and embedded central processing unit (CPU) module components for use as local and distributed I/O components. In addition, the module supports modern RX3i and RX7i systems as distributed output modules. The module is compatible with motor starters, electromagnetic drives and indicators. The rated current of the IC693MDL930 contact output is 4 amps, with a maximum resistive load for each point; The pilot workload at each point is 2 amps, each module installed by UL is 20 amps, and the minimum load for the module is 10 mA. Each contact output can operate at nominal voltages of 24 VDC and 120/240 VDC, while the operating voltage range is 5-30 VDC / 5-250 VAC and the frequency is 50/60 Hz. It also produces a maximum surge current of 5 amps, while the maximum channel response time is 15 ms for on and off signal conversion. The module has an internal power consumption of 6 mA with all output coming from the 5 V bus on the backplane, while all output comes from the relay 24V bus on the backplane with an internal power consumption of 70 mA. With separate isolation, each output channel can operate at different voltages, providing maximum operational flexibility. The module has an isolation rating of 1500 volts between the field side and the logical side, and an isolation rating of 500 volts between channels.

The GE IC693MDL930 module is a digital output module. The IC693MDL930 output module can be installed in any slot of the 5-slot or 10-slot backplane in the GE Fanuc 90-30 PLC system. The IC693MDL930 module has eight normally open relay circuits for managing user loads. The output switch capacity of a single module output is 4 amps. Each module output is isolated from the other module output, and each module output has its own common terminal. The IC693MDL930 module does not include any fuses. The power supply for the user field device connected to the module output needs to be provided by the user. An LED indicator indicating the status of each output point is located at the top of the module.

☆型号：IC693MDL930G   分立式输出模块  数字量输出模块
