DS200GDPAG1AKF
DS200GDPAG1AKF

DS200GDPAG1AKF 高频电源卡 励磁器兼容

型号:DS200GDPAG1AKF高频电源卡励磁器兼容【产品详情】通用电气的MarkV板DS200GDPAG1AKF是一种高频电源卡。该系列的电路板与一系列GE

联系人:Sunny

手机:18059884797

QQ:3095989363

邮箱:xiongbagk@gmail.com

产品详情

型号:DS200GDPAG1AKF 高频电源卡 励磁器兼容







【产品详情】

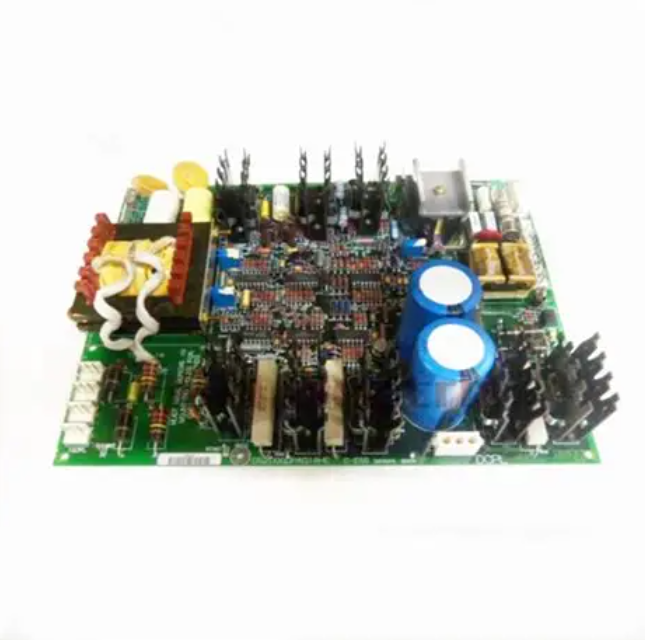

通用电气的Mark V板DS200GDPAG1AKF是一种高频电源卡。该系列的电路板与一系列GE品牌的驱动器和励磁器兼容。安装后,驱动系统可以接受交流和直流电源。该卡可以产生 600 到 700 W 的瓦数。馈向电路板的直流输入的额定电压可在 105 至 140 VDC 之间。板源交流输入可以安全地额定在 80 到 132 VAC 之间。


DS200GDPAG1AKF可以使用许多工作场所应用程序。集成功能包括一个 50 VAC 输出变压器、一个控制电源和一个 120 VDC 电源。保护级和控制级循环都可以在这张特定的卡上找到。许多板载功能允许安全准确地捕获和发送输入。其中包括 27 kHz 逆变器和稳压器,以及输入滤波器和输入整流器。该板上的每个输入都是隔离的,确保某些信号不会干扰板上的其他信号。板上有两个霓虹灯和四个 LED 指示灯,可直观地向用户显示电路板状态信息。


系统操作依赖于用户遵循所有提供的安装参数。这将降低任何用户受伤或驾驶事故的风险。正确接线对于确保驱动安全至关重要。系列手册和设备数据表中提供了有关接线和安装DS200GDPAG1AKF的完整说明手册。该板的制造商通用电气最初提供技术支持。






型号:DS200GDPAG1AKF 高频电源卡 励磁器兼容




英文介绍





Ge's Mark V board DS200GDPAG1AKF is a high-frequency power card. The circuit boards are compatible with a range of GE branded drivers and exciters. After installation, the drive system can accept AC and DC power supplies. The card can produce a wattage of 600 to 700 W. The rated voltage of the DC input fed to the board can range from 105 to 140 VDC. Board source AC inputs can be safely rated between 80 and 132 VAC.


The DS200GDPAG1AKF can use many workplace applications. Integrated features include a 50 VAC output transformer, a control power supply, and a 120 VDC power supply. Both protection level and control level loops can be found on this particular card. Many onboard features allow input to be captured and sent safely and accurately. These include a 27 kHz inverter and regulator, as well as an input filter and an input rectifier. Each input on the board is isolated, ensuring that certain signals do not interfere with other signals on the board. There are two neon lights and four LED indicators on the board, which can visually show the user the status of the board.


System operation depends on the user following all provided installation parameters. This will reduce the risk of any user injury or driving accident. Proper wiring is essential to ensure drive safety. Complete instructions for wiring and installing the DS200GDPAG1AKF are available in the series manuals and equipment data sheets. The board's manufacturer, General Electric, initially provided technical support.




型号:DS200GDPAG1AKF 高频电源卡 励磁器兼容
