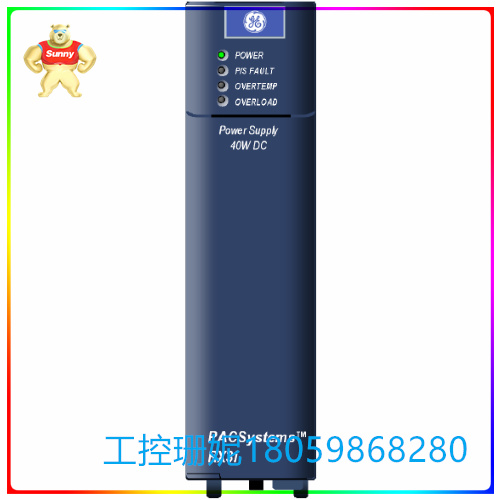

☆型号：IC695PSD140LT 电源模块 通用基础电源
【产品详情】
IC695PSD140是艾默生自动化制造的电源模块，是 PACsystem RX3i PAC 平台的一部分。该模块是通用基础电源，与任何 RX3i 中央处理器 （CPU） 兼容。此模块没有跳线或 DIP 开关来定义模块的操作。
IC695PSD140占用机箱的两 （2） 个插槽。它由 100-240 VAC 或 0-125 VDC 的外部电源供电，额定输出功率为 40 瓦，3.3 VDC 时为 30 瓦;5VDC 时为 30 瓦，24 VDC 继电器时为 40 瓦。RX3i 通用背板最多可安装四 （4） 个多用途电源，用于需要冗余和增加容量模式的应用。
在负载共享架构中配置时，不得无意中关闭安装在前面板上的IC695PSD140开/关开关。必须保持最小电源数量为“打开”才能使系统合格。此外，对于相同的配置，电源模块必须连接到同一电源。
该电源的输出纹波为150 mV，噪声测量值为150 mV，穿越时间为20 ms。功率穿越时间是指电源在供电线路中断的情况下提供足够电力的能力。端接电源端子的连接时，推荐的电线尺寸范围为 #14 - 22 AWG 电线。每个输入端子可以容纳的最大电流为 6 安培。
☆型号：IC695PSD140LT 电源模块 通用基础电源
【英文介绍】
The IC695PSD140 is a power module manufactured by Emerson Automation and is part of the PACsystem RX3i PAC platform. The module is a universal base power supply that is compatible with any RX3i central processing unit (CPU). This module does not have a jumper or DIP switch to define the module's operation.
The IC695PSD140 occupies two (2) slots in the chassis. It is powered by an external power supply of 100-240 VAC or 0-125 VDC and has a rated output of 40 watts, 30 watts at 3.3 VDC; 30 watts at 5VDC and 40 watts at 24 VDC relays. The RX3i Universal backplane can accommodate up to four (4) multi-purpose power supplies for applications requiring redundancy and increased capacity modes.
When configuring in a load sharing architecture, the IC695PSD140 on/off switch installed on the front panel must not be unintentionally turned off. The minimum amount of power must be kept "On" to qualify the system. In addition, for the same configuration, the power module must be connected to the same power supply.
The output ripple of this power supply is 150 mV, the noise measurement is 150 mV, and the crossing time is 20 ms. Power crossing time refers to the power supply's ability to provide sufficient power in the event of a power supply line interruption. When terminating a power terminal connection, the recommended wire size range is # 14-22 AWG wire. Each input terminal can hold a maximum current of 6 amps.
