☆型号:IC693MDL940H 继电器输出模块 控制负载设备
【产品详情】

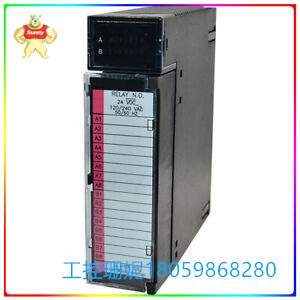

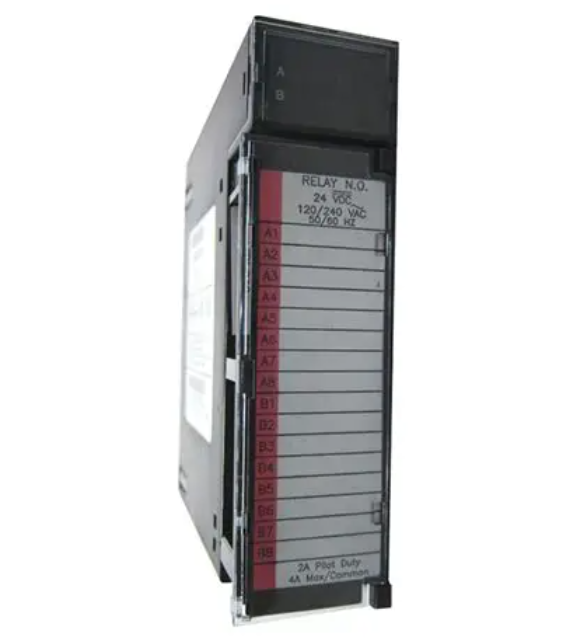

产品描述
GE Fanuc IC693MDL940是一个继电器输出模块。该模块的用途是控制负载设备,如指示器、螺线管和电机启动器。该模块需要 2A 的开关容量,需要 24V 直流电源。电源位于其背板上,通过总线为模块供电。当IC693MDL940涉及抑制电路时,继电器的触点寿命接近于电阻负载的触点寿命,同时切换到感性负载。直流和交流负载使用彼此不同的电路。直流负载使用包含 200V 二极管的 1A 电流容量的抑制电路。交流负载的抑制电路使用标准元件,即电容器和电阻器。
该IC693MDL940工作在 5V 至 30V 直流电源电压范围。在 50Hz 至 60Hz 的频率范围内,它的工作电压范围为 5V 至 250V。此外,该模块在四组中使用 16 个输出点,每组包含四个输出点。该模块的最大负载为每路输出 2A,每路公共端 4A。遇到的最小负载为10mA。模块IC693MDL940顶部有一个 LED 指示灯,用于指示输出点的状态。模块的内表面提供电路的接线信息。直流或交流电源中的任何一个都操作现场设备。该模块不使用保险丝。打开/关闭的响应时间为 15 毫秒。在 90-30 系列 PLC 系统中,用户还可以在底板的任何插槽中使用IC693MDL940。
技术规格
额定电压: 24 伏直流电或 120/240 伏交流电
# 输出: 16
频率: 50/60 Hz,带交流电
输出电流: 每个电路 2 安培,每个公共电路 4 安培
输出电压范围: 5 至 30 伏直流电,5 至 250 伏交流电
直流电源: 是的
☆型号:IC693MDL940H 继电器输出模块 控制负载设备
【英文介绍】
Product description
The GE Fanuc IC693MDL940 is a relay output module. The purpose of this module is to control load devices such as indicators, solenoids and motor starters. The module requires a switching capacity of 2A and requires 24V DC power supply. The power supply is located on its backplane and supplies power to the module through the bus. When the IC693MDL940 involves a suppression circuit, the contact life of the relay is close to the contact life of the resistive load, while switching to the inductive load. Dc and AC loads use different circuits from each other. The DC load uses a 1A current capacity suppression circuit containing a 200V diode. The AC load suppression circuit uses standard components, namely capacitors and resistors.
The IC693MDL940 operates in the DC supply voltage range of 5V to 30V. In the frequency range of 50Hz to 60Hz, it operates from 5V to 250V. In addition, the module uses 16 output points in four groups, each containing four output points. The maximum load of this module is 2A per output and 4A per common end. The minimum load encountered is 10mA. The module IC693MDL940 has an LED indicator at the top to indicate the status of the output point. The inner surface of the module provides wiring information for the circuit. Either DC or AC power supply operates the field equipment. This module does not use fuses. The response time on/off is 15 milliseconds. In the 90-30 series PLC system, the user can also use the IC693MDL940 in any slot in the backboard.
Technical specification
Rated voltage: 24 volts DC or 120/240 volts AC
# Output: 16
Frequency: 50/60 Hz with AC
Output current: 2 amps per circuit, 4 amps per common circuit
Output voltage range: 5 to 30 volts DC, 5 to 250 volts AC
Dc power supply: Yes
