IC693MDL741 分立输出模块 支持负逻辑接线配置

☆型号：IC693MDL741 分立输出模块 支持负逻辑接线配置

【产品详情】

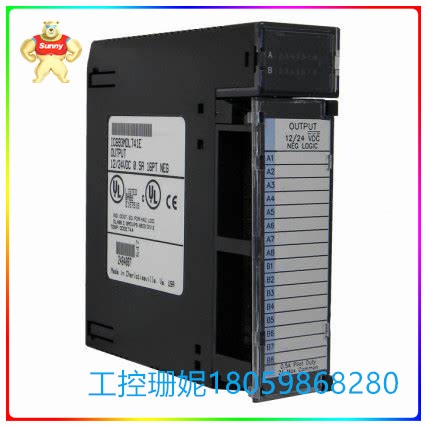

该IC693MDL741是艾默生自动化 90-30 系列可编程逻辑控制器 （PLC） 平台的一部分，该平台以前来自 GE Fanuc。该模块为分立输出模块，支持负逻辑接线配置。该模块配有十六 （16） 个输出 LED 指示灯，用于描述模块每个通道的运行状态。该IC693MDL741提供 12 至 24 V DC、+20% 和 –15% 的输出电压范围。它的输出电流额定值为每点 0.5 安培，每公共端 2.0 安培，而输出分组为每组八 （8） 个通道。该模块不附带单独的通道隔离，但提供组隔离。组间隔离的额定电压为500 V，在磁场侧和逻辑侧或光隔离之间为1500 V。该模块还提供了一个模块插页，用户可以在其中提供分配输出的简短书面描述。IC693MDL741安装在 90-30 系列底板上，占用一个插槽。它可以充当本地输出组件，与 CPU 基板一起安装，也可以作为分布式 I/O 模块组件。该模块的输出特性包括 0.5 V 的压降、1 mA 的关断状态泄漏、最大 2 ms 的信号开和关响应时间。当所有输出通电时，IC693MDL741的电流消耗为 110 mA，源自 5VDC 背板。该IC693MDL741能够为电机启动器、螺线管、指示灯和信号器等电气负载供电。它也可以与交流负载一起使用，前提是在两者之间安装了一个插入继电器。

16点IC693MDL741模块是GE Fanuc 90-30系列PLC的I/O模块。该模块可以安装在具有 5 插槽或 10 插槽底板的 GE Series 90-30 PLC 的任何插槽中。底板构成了 PLC 的基础，所有其他组件都安装在其上。当IC693MDL741模块上的所有点都打开时，模块从底板汲取的电流为 110 毫安。模块的电压输入为 5 伏直流电。IC693MDL741模块不包含任何保险丝。

☆型号：IC693MDL741 分立输出模块 支持负逻辑接线配置

【英文介绍】

The IC693MDL741 is part of Emerson Automation's 90-30 series Programmable Logic controller (PLC) platform, which was previously from GE Fanuc. The module is a discrete output module and supports negative logic cables. The module is equipped with sixteen (16) output LED indicators that describe the operating status of each channel of the module. The IC693MDL741 offers output voltage ranges from 12 to 24 V DC, +20% and -15%. It has an output current rating of 0.5 amps per point and 2.0 amps per common end, while the output is grouped into eight (8) channels per group. This module does not ship with separate channel isolation, but provides group isolation. The rated voltage for inter-group isolation is 500 V and 1500 V between the magnetic field side and the logical side or optical isolation. The module also provides a module insert where users can provide a short written description of the assigned output. The IC693MDL741 is installed on the 90-30 series baseplate and occupies one slot. It can act as a local output component, installed with the CPU substrate, or as a distributed I/O module component. The module's output features include a 0.5V voltage drop, 1 mA off state leakage, and a maximum signal on and off response time of 2 ms. When all outputs are energized, the IC693MDL741 consumes 110 mA of current from the 5VDC backplane. The IC693MDL741 is capable of powering electrical loads such as motor starters, solenids, indicators and signalers. It can also be used with AC loads, provided that a plug-in relay is installed between the two.

The 16-point IC693MDL741 module is the I/O module of GE Fanuc 90-30 series PLC. The module can be installed in any slot of a GE Series 90-30 PLC with a 5-slot or 10-slot baseplate. The backboard forms the basis of the PLC on which all other components are mounted. When all points on the IC693MDL741 module are open, the current drawn by the module from the baseplate is 110 mA. The voltage input of the module is 5 volts DC. The IC693MDL741 module does not contain any fuses.
