☆型号:IC693MDL655E 直流正/负逻辑输入模块 高密度输入模块
【产品详情】

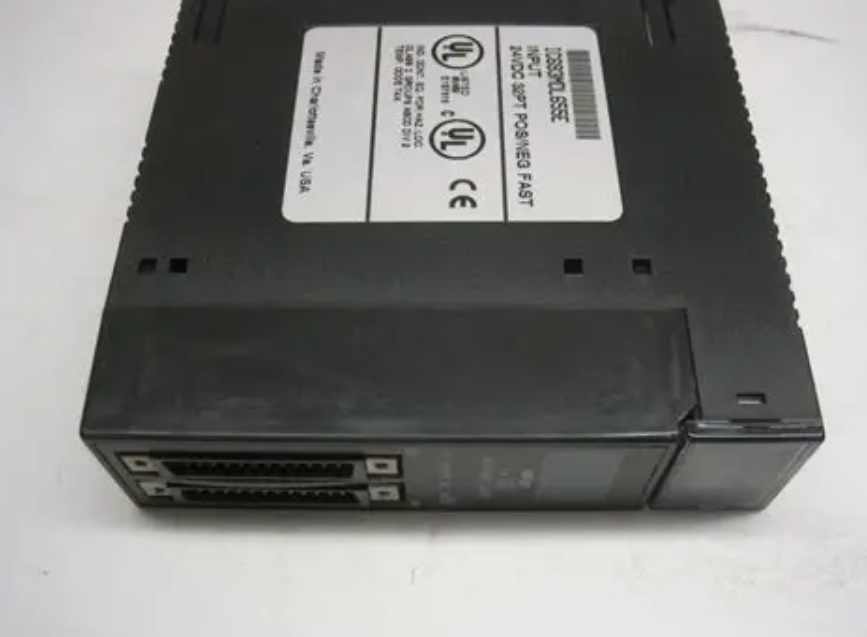

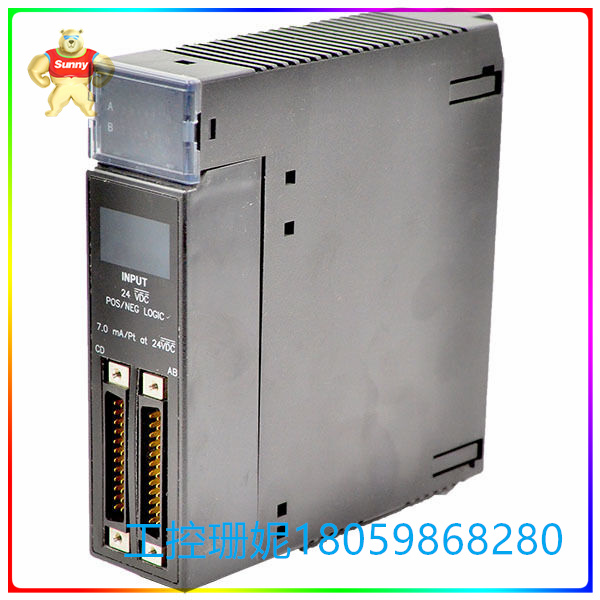

GE Fanuc IC693MDL655 是一款 24 伏直流正/负逻辑输入模块。该模块设计用于 90-30 系列可编程逻辑控制器。它有 32 个离散输入点,分为四组,每组 8 个。每个组都是孤立的,并且在八个点之间有一个共同的共同点。模块上的所有输入点均以 30V 的最大电平工作。它们能够以正逻辑或负逻辑运行。该模块上有光耦合器,可在现场侧和逻辑侧之间提供背板隔离。这是对与每组输入隔离的补充。在模块的顶部有一个 LED 块,该块对模块上的 32 个点中的每一个都有相应的 ON/OFF 状态指示灯。当将现场设备与IC693MDL655一起使用时,用户可以连接电源,也可以使用隔离式 +24 VDC 电源,该电源可在模块上的 I/O 连接器上使用。
该IC693MDL655是一个高密度数字输入模块,是艾默生自动化 90-30 系列可编程逻辑控制器 (PLC) 平台的一部分。该输入模块设计用于安装在任何 90-30 系列基板上,无论是 CPU 基板、I/O 扩展基板还是远程 I/O 基板。它直接安装在 5 插槽或 10 插槽基板的任何可用 I/O 插槽上,并且仅占用单个 SOT。此外,该模块还兼容嵌入式 90-30 CPU 和模块化 90-30 CPU。
作为一个高密度输入模块,它具有三十二 (32) 个输入点,分为四 (4) 个,每组八 (8) 个输入。每个通道都兼容与开/关类型的设备接线,这些设备在 0-30 VDC 的电压信号范围和 24 VDC 的标称电压范围内工作。该模块使用的典型开/关设备是限位开关、液位开关、接近开关、辅助触点、按钮设备和其他操作类似的设备。

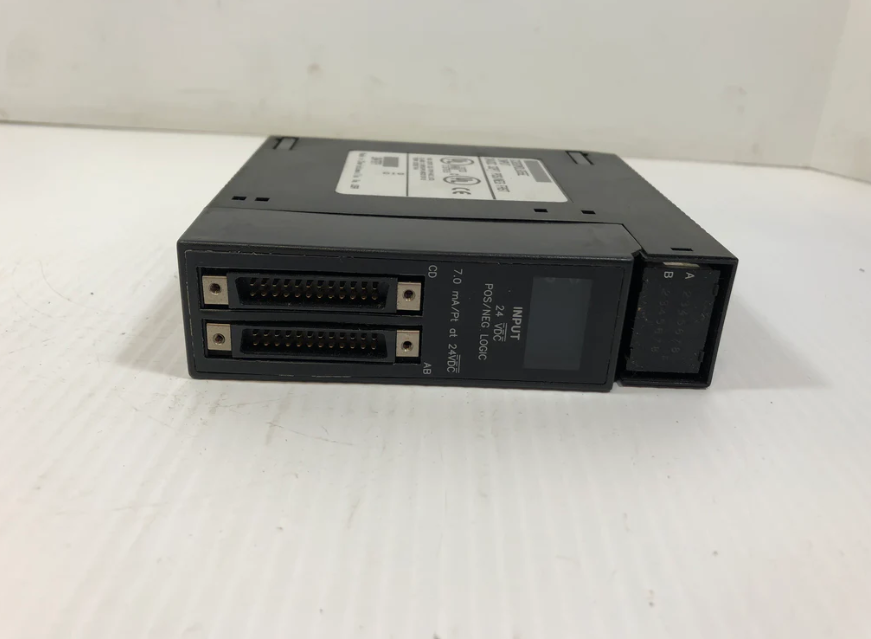

用户可以将输入模块安装在 90-30 系列 PLC 系统的底板中 - 它可以在任何 I/O 插槽中工作。在模块的正面,有两个 24 针公连接器。这些使用户输入设备能够连接到输入电路。右侧连接器为 A 组和 B 组提供接口,而左侧连接器为 C 组和 D 组提供接口。要从连接器连接到现场设备,必须获得一根一端带有镀锡线的电缆,另一端带有配对的母连接器。部件号 IC693CBL327 和 IC693CBL328 是用户可以在其应用中实施的预接线电缆。
技术规格
额定电压: 24 伏直流电
# 输入: 32
频率: 不适用
输入电流: 7.0毫安
输入电压范围: 0 至 -30 伏直流
直流电源: 是的
☆型号:IC693MDL655E 直流正/负逻辑输入模块 高密度输入模块
【英文介绍】
The GE Fanuc IC693MDL655 is a 24-volt DC positive/negative logic input module. This module is designed for use with series 90-30 programmable logic controllers. It has 32 discrete input points, divided into four groups of 8 each. Each group is isolated and has a common denominator between the eight points. All input points on the module operate at a maximum level of 30V. They can operate with either positive or negative logic. There are optical couplers on the module to provide backplane isolation between the field side and the logical side. This is in addition to isolation from each set of inputs. At the top of the module is an LED block that has a corresponding ON/OFF status indicator for each of the 32 points on the module. When using the field device with the IC693MDL655, the user can either connect the power supply or use the isolated +24 VDC power supply, which is available on the I/O connector on the module.
The input module can be installed in the backboard of the 90-30 series PLC system - it works in any I/O slot. On the front side of the module, there are two 24-pin male connectors. These enable the user input device to connect to the input circuit. The right connector provides interfaces for groups A and B, while the left connector provides interfaces for groups C and D. To connect from the connector to the field device, a cable with a tinned wire on one end and a paired female connector on the other end must be obtained. The part numbers IC693CBL327 and IC693CBL328 are pre-wired cables that users can implement in their applications.
Technical specification
Rated voltage: 24 volts DC
# Enter: 32
Frequency: Not applicable
Input current: 7.0 MA
Input voltage range: 0 to -30 V DC
Dc power supply: Yes
