DS200SIOCG1A 具有五个接线端子 电路板接收的信号

☆型号：DS200SIOCG1A 具有五个接线端子 电路板接收的信号

【产品详情】

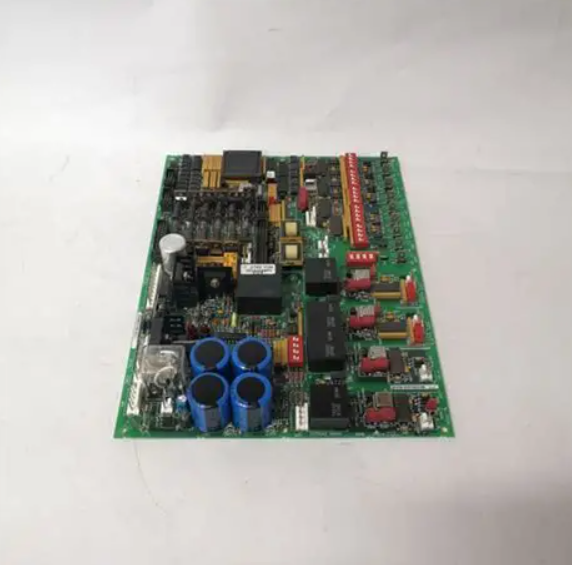

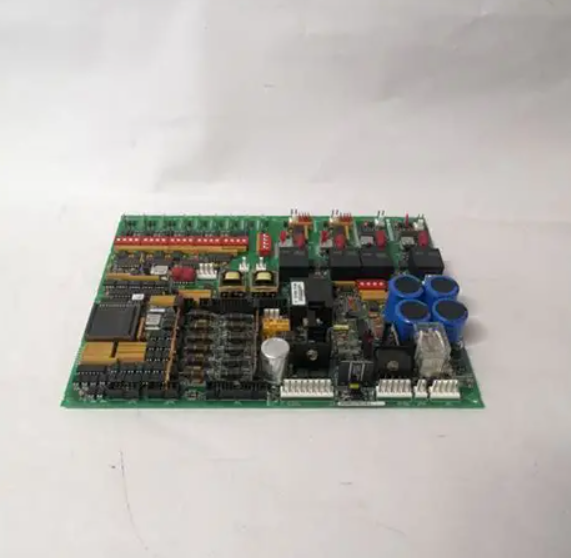

GE VersaModular Eurocard （VME） 支架 I/O 板DS200SIOCG1A具有五个接线端子，最多可连接 33 根信号线。它还装有 1 个保险丝和 4 个 2 针连接器。GE VME Stand I/O 板DS200SIOCG1A上的接线端子在板上标记为 TB-1、TB-2、TB-3、TB-4 和 TB-5。导线承载由电路板传输或在处理过程中由电路板接收的信号。电线用螺钉固定到位，将电线固定在端子中。每个终端还印有板上印有标识符。

更换电路板时，必须首先使用分配给其所连接端子的 ID 标记连接到端子的每根电线。然后，当电路板上的所有电源都断开时，您可以松开将电线固定在端子中的螺钉。检查以确保标签已连接到电线上，并且上面写有正确的端子 ID。将信号线弯曲开来，以便卸下旧板并安装替换板。

☆型号：DS200SIOCG1A 具有五个接线端子 电路板接收的信号

【英文介绍】

The GE VersaModular Eurocard (VME) stand I/O board DS200SIOCG1A has five terminals and can connect up to 33 signal cables. It also has a fuse and four 2-pin connectors. The wiring terminals on the GE VME Stand I/O board DS200SIOCG1A are labeled TB-1, TB-2, TB-3, TB-4, and TB-5. The wire carries the signals transmitted by the board or received by the board during processing. The wires are secured in place with screws to secure the wires in the terminals. Each terminal is also printed with an identifier printed on the board.

When replacing a board, you must first use each wire connected to the terminal using the ID tag assigned to the terminal to which it is connected. Then, when all power on the board is disconnected, you can loosen the screws holding the wires to the terminals. Check to make sure the label is connected to the wire and has the correct terminal ID written on it. Bend the signal wire to remove the old plate and install a replacement plate.
