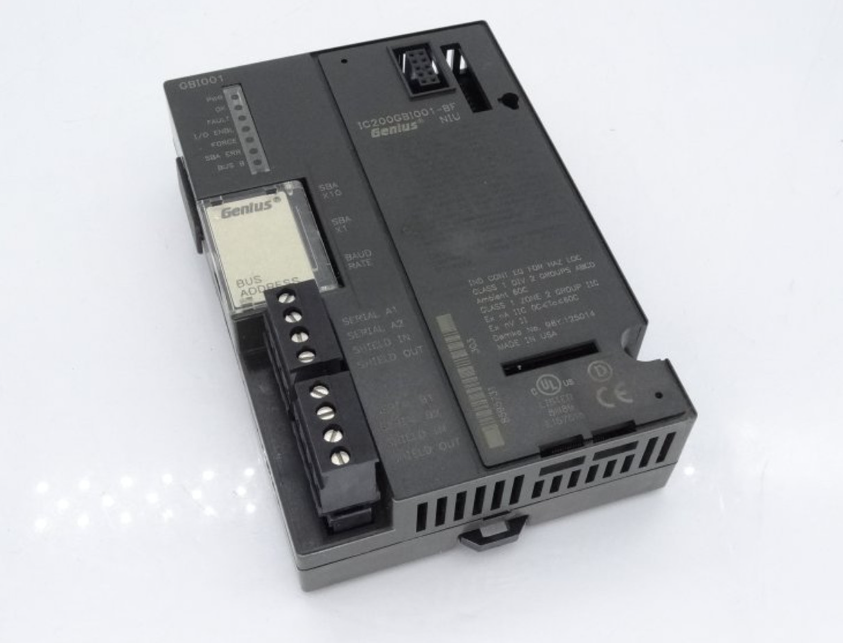

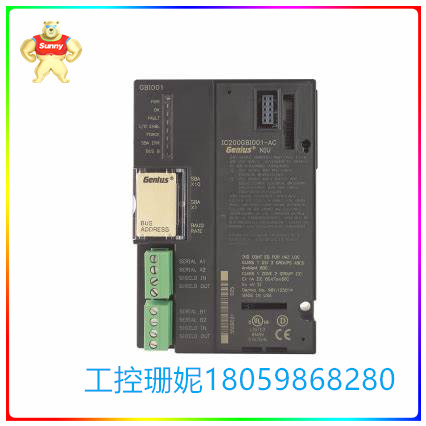

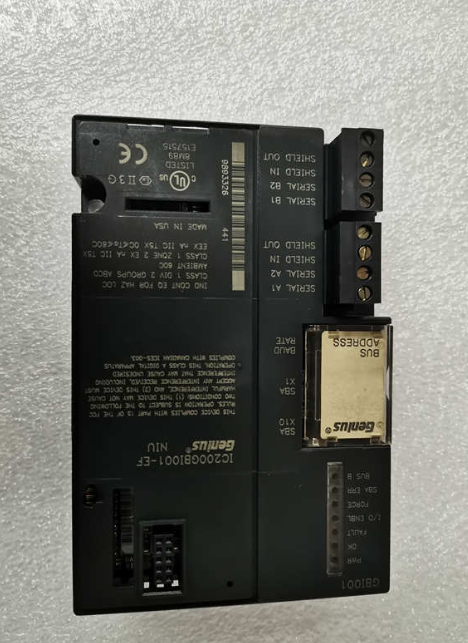

☆型号:IC200GBI001-EF 网络接口单元 通信模块
【产品详情】
IC200GBI001是 VersaMax 通信模块。该模块是一个 Genius 网络接口单元,允许将 VersaMax I/O 模块安装在分布式 I/O 架构中。该模块设计为每个机架最多可容纳八 (8) 个 I/O 模块,并支持安装多达八 (8) 个机架,最多支持 64 个 I/O 模块。它支持 153.6 kbaud 的传输速度,用于扩展网络配置;标准配置为 153.6 kbaud、76.8 kbaud 和 38.4 kbaud,IC200GBI001可以容纳大量 I/O 点,
特别是用于离散输入的多达 1024 个点;1024 个离散输出;128 字节模拟输入存储器和 128 字节模拟输出存储器。该模块可以管理每次扫描 128 字节的网络输入和每次扫描 128 位输出的扫描。它的功耗为 250 mA @ 4VDC 和 10 mA @ 3.3 mA。
该IC200GBI001兼容各种控制器系统,因为以前和现代的控制器平台都支持 Genius 协议。兼容的控制系统包括 90-70 系列和 PACSystem RX7i 和 PACSystem RX3i。必须将适当的固件版本加载到控制器和 IC200GBI001 Genius 网络接口模块。
IC200GBI001配有双 Genius 连接端子。上端子用作主 Genius 连接点,而下端子用作冗余端口。这些端口设计用于菊花链拓扑连接,在通信电缆的两端安装有终端电阻器。串行 1 和 2 端子的适当电阻值为 75、100、120 或 150 欧姆。
☆型号:IC200GBI001-EF 网络接口单元 通信模块
【英文介绍】
IC200GBI001 is the VersaMax communication module. The module is a Genius network interface unit that allows VersaMax I/O modules to be installed in a distributed I/O architecture. The module is designed to accommodate up to eight (8) I/O modules per rack and supports the installation of up to eight (8) racks for up to 64 I/O modules. It supports a transmission speed of 153.6 kbaud for extended network configuration; With standard configurations of 153.6 kbaud, 76.8 kbaud and 38.4 kbaud, the IC200GBI001 can accommodate a large number of I/O points.
In particular, up to 1024 points for discrete inputs; 1024 discrete outputs; 128 bytes analog input memory and 128 bytes analog output memory. The module can manage scans of 128 bytes of network input per scan and 128 bits of output per scan. Its power consumption is 250 mA @ 4VDC and 10 mA @ 3.3mA.
The IC200GBI001 is compatible with a variety of controller systems, as both previous and modern controller platforms support the Genius protocol. Compatible control systems include the 90-70 series and PACSystem RX7i and PACSystem RX3i. The appropriate firmware version must be loaded into the controller and the IC200GBI001 Genius network interface module.
The IC200GBI001 is equipped with dual Genius connection terminals. The upper terminal is used as the primary Genius connection point, while the lower terminal is used as a redundant port. These ports are designed for daisy-chain topology connections, with terminal resistors installed at both ends of the communication cable. Appropriate resistance values for serial 1 and 2 terminals are 75, 100, 120 or 150 ohms.
