IC200MDL240B
IC200MDL240B

IC200MDL240B 分立式输入模块 信号电压范围

型号:IC200MDL240B分立式输入模块信号电压范围【产品详情】IC200MDL240是VersaMaxI/O平台的分立式输入模块,以前由GE智能平台生产,

联系人:Sunny

手机:18059884797

QQ:3095989363

邮箱:xiongbagk@gmail.com

产品详情

型号:IC200MDL240B 分立式输入模块 信号电压范围







【产品详情】

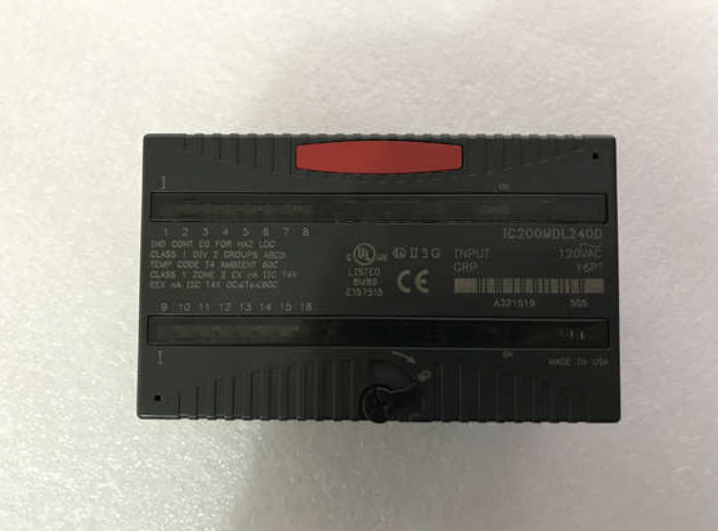

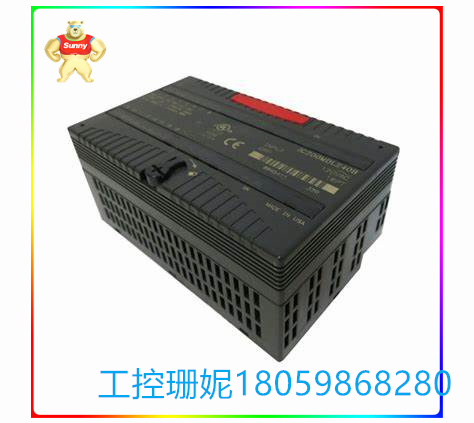

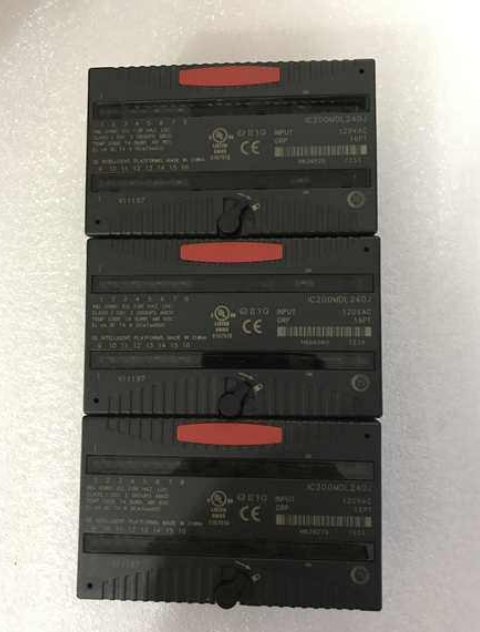

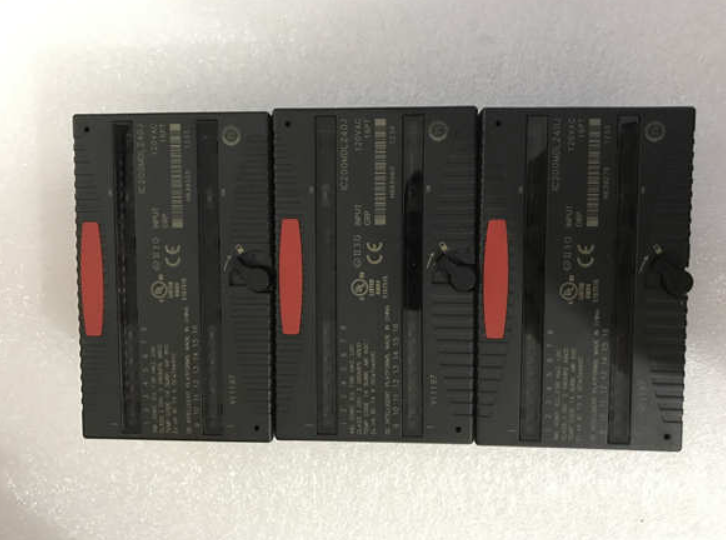

IC200MDL240是VersaMax I/O平台的分立式输入模块,以前由GE智能平台生产,现在由艾默生自动化制造。该模块是一个十六 (16) 点分立输入模块,支持正逻辑或源接线配置。它可用于连接提供二进制或开/关信号状态的现场和电气设备,例如辅助触点、接近传感器、按钮设备、限位开关和类似设备。


该 16 点模块接受 0-132 VAC、47-63 Hz 的输入信号电压范围,标称信号电压为 120 VAC,最小导通状态电流为 7 mA。输入通道分为两 (2) 个,每组有一个专用的公共通道,每个通道由八 (8) 个通道组成。它的组间隔离额定值为 250 VAC,连续和 1500 VAC,持续时间为 1 分钟。同样,模块的光隔离(用户输入到逻辑隔离)以及框架接地隔离均为 1500 VAC 持续 1 分钟和 250 VAC(连续)。


每个通道的导通响应时间最小为 1 个周期,而关响应时间最小为 2 毫秒。导通状态电压为 70-132 VAC,关断状态电压范围为 0-40 VAC。此外,导通电流最小为7 mA,关断电流最大为1.5 mA。


IC200MDL240安装在DIN导轨上,支持水平和垂直方向。当模块垂直安装时,不会遇到性能降额,但在 132 VAC 时会出现降额。






型号:IC200MDL240B 分立式输入模块 信号电压范围






英文介绍





The IC200MDL240 is a discrete input module for the VersaMax I/O platform, formerly manufactured by GE Intelligent Platforms and now manufactured by Emerson Automation. The module is a sixteen (16) discrete input module that supports either positive logic or source wiring configurations. It can be used to connect field and electrical devices that provide binary or on/off signal states, such as auxiliary contacts, proximity sensors, push button devices, limit switches and similar devices.


The 16-point module accepts input signal voltages ranging from 0-132 VAC to 47-63 Hz, with a nominal signal voltage of 120 VAC and a minimum on-state current of 7 mA. The input channels are divided into two (2), each group has a dedicated public channel, and each channel consists of eight (8) channels. It has an inter-group isolation rating of 250 VAC, continuous and 1500 VAC, with a duration of 1 minute. Similarly, the optical isolation of the module (user input to logical isolation) as well as the ground isolation of the frame are 1500 VAC for 1 minute and 250 VAC (continuous).


The on-off response time for each channel is a minimum of 1 cycle and the off response time is a minimum of 2 milliseconds. The on-state voltage is 70-132 VAC, and the off state voltage range is 0-40 VAC. In addition, the minimum conduction current is 7 mA and the maximum turn-off current is 1.5 mA.


The IC200MDL240 is mounted on a DIN rail and supports horizontal and vertical orientation. Performance derating will not be experienced when the module is mounted vertically, but will occur at 132 VAC.
