IC693PWR331-D
IC693PWR331-D

IC693PWR331- D 可编程逻辑控制器 RS485通讯端子

型号:IC693PWR331-D可编程逻辑控制器RS485通讯端子【产品详情】IC693PWR331是GEFanuc系列90-30可编程逻辑控制器(PLC)模块

联系人:Sunny

手机:18059884797

QQ:3095989363

邮箱:xiongbagk@gmail.com

产品详情

型号:IC693PWR331- D 可编程逻辑控制器 RS485通讯端子







【产品详情】

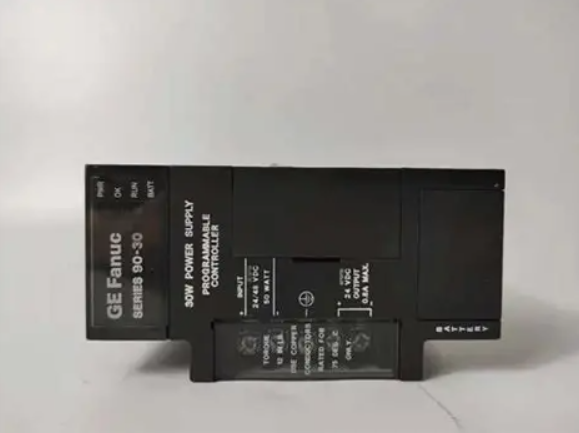

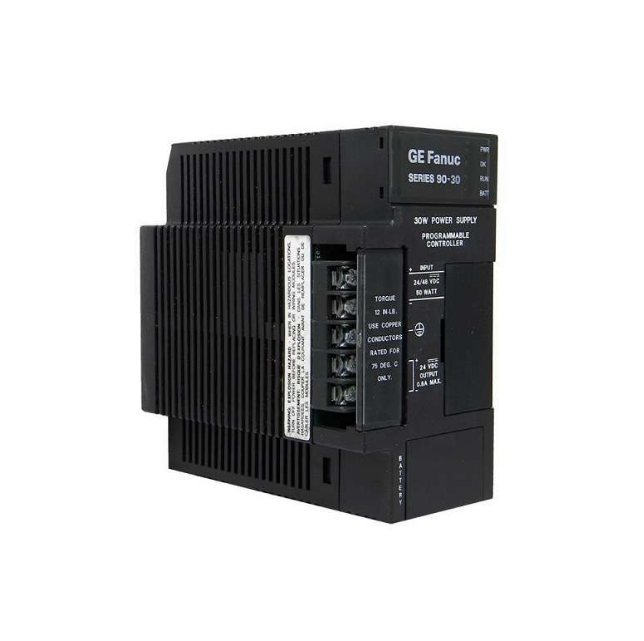

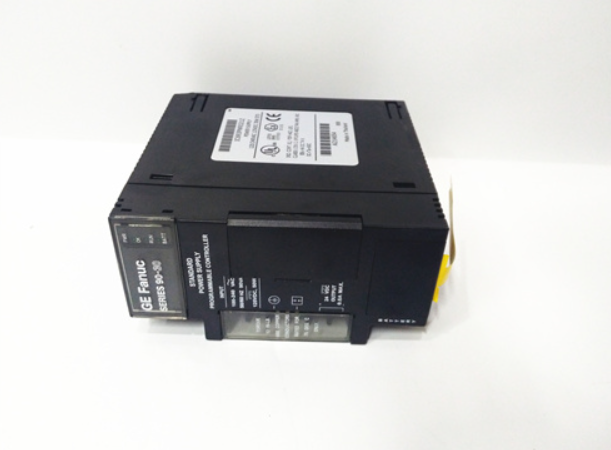

IC693PWR331是GE Fanuc系列90-30可编程逻辑控制器(PLC)模块。本机是大容量电源,可提供三 (3) 个输出电压tages 用于各种功能。该电源提供 +5VDC 输出,最大功率为 30 瓦,+24VDC 继电器输出,最大输出功率为 15 瓦,+24VDC 隔离输出,最大输出功率为 20 瓦。作为大容量电源,30 瓦负载容量可以分配给 +5VDC 输出端子,但总输出功率不得超过 30 瓦。+24VDC继电器电源输出用于为输出继电器模块上的电子电路供电,而+24VDC隔离输出模块由部分模块内部使用,外部电源用于24VDC输入模块。


IC693PWR331配有RS485通讯端子。此端口允许连接到安装了GE Proficy软件的工作站进行配置。此外,同一端口允许连接手持编程器 (HHP) 和其他启用 RS485 通信标准的设备。


IC693PWR331配有 LED 指示灯,用于报告模块的状态以及连接到设备的组件。它具有 PWR、OK、RUN 和 BATT LED 指示灯。该电源还承载备用电池,用于维护 PLC 易失性存储器的内容。BATT 指示灯用于指示电池的电量,以提供有关何时必须更换电池的参考。电池连接端子以及输入线的端接条安装在前面板上,在平开门后面。


对于隔离式电源,IC693PWR331电源模块的底部端子连接到用于为外部电路供电的隔离式 +24 V 直流输出。IC693PWR331模块的输入电压范围为 2 V DC 至 30 V DC。通过使用位于前面板上的 RS 485 端口,可以将电源设备连接到外围设备或计算机的串行端口。IC693PWR331模块可以很容易地安装在 90-30 系列设备底板的最左侧插槽中。本机应远离灰尘、污垢和所有发热设备。




型号:IC693PWR331- D 可编程逻辑控制器 RS485通讯端子




英文介绍





The IC693PWR331 is a GE Fanuc series 90-30 Programmable Logic controller (PLC) module. This unit is a large capacity power supply that can provide three (3) output voltages for various functions. The power supply offers a +5VDC output with a maximum power of 30 watts, a +24VDC relay output with a maximum power of 15 watts, and a +24VDC isolated output with a maximum power of 20 watts. As a large capacity power supply, the 30 watt load capacity can be assigned to the +5VDC output terminal, but the total output power must not exceed 30 watts. The +24VDC relay power output is used to power the electronic circuits on the output relay module, while the +24VDC isolated output module is used internally by some modules and the external power supply is used for the 24VDC input module.


The IC693PWR331 is equipped with RS485 communication terminals. This port allows you to connect to a workstation with GE Proficy software installed for configuration. In addition, the same port allows the connection of handheld programmers (HHP) and other devices that enable the RS485 communication standard.


The IC693PWR331 is equipped with LED indicators to report the status of the module as well as the components connected to the device. It has PWR, OK, RUN and BATT LED indicators. The power supply also carries a backup battery for maintaining the contents of the PLC volatile memory. The BATT indicator is used to indicate the battery level to provide a reference as to when the battery must be replaced. Battery connection terminals and end strips for input cables are mounted on the front panel behind the flat door.


For isolated power supplies, the bottom terminal of the IC693PWR331 power module is connected to the isolated +24 V DC output used to power the external circuit. The input voltage range of the IC693PWR331 module is 2 V DC to 30 V DC. By using the RS 485 port located on the front panel, the power device can be connected to the serial port of the peripheral device or the computer. The IC693PWR331 module can be easily installed in the leftmost slot of the baseplate of the 90-30 series device. The machine should be kept away from dust, dirt and all heating equipment.




型号:IC693PWR331- D 可编程逻辑控制器 RS485通讯端子
