IC754VSL06CTD-ML 便携式计算机 应用控制器或人机界面

☆型号：IC754VSL06CTD-ML 便携式计算机 应用控制器或人机界面

【产品详情】

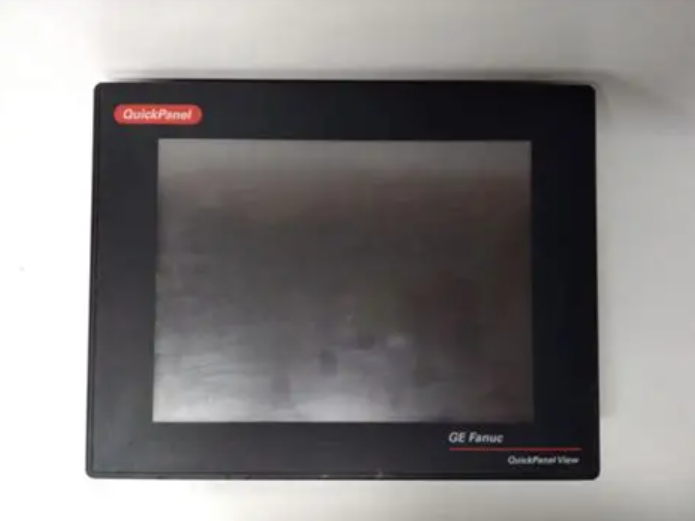

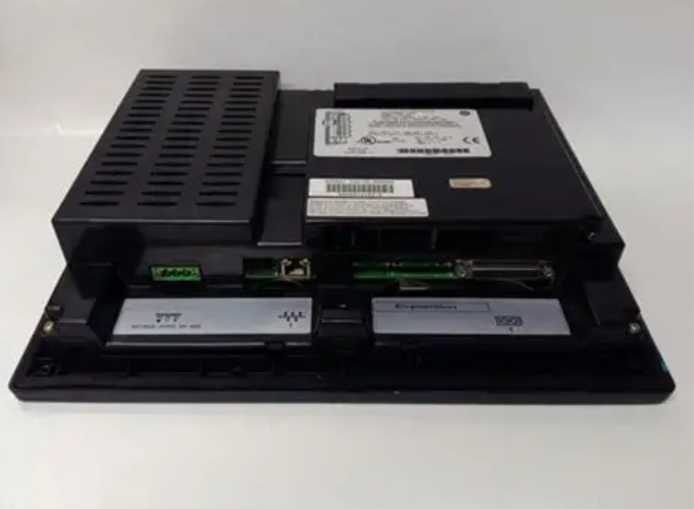

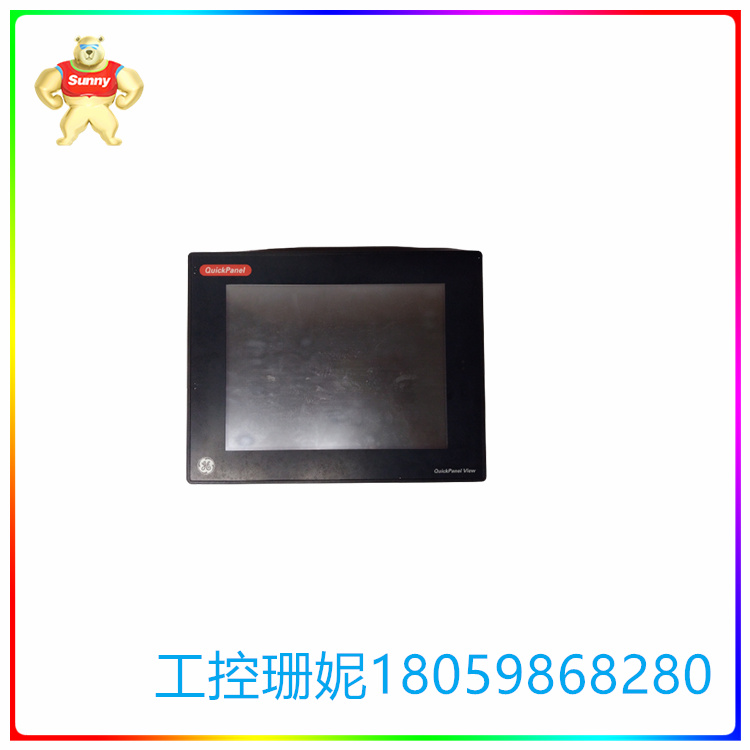

IC754VSL06CTD是由GE Fanuc制造的TFT彩色显示和控制QuickPanel计算机。 该设备是一款便携式计算机，专为灵活性和适应性而设计，是工厂车间操作的理想选择。该显示面板既可以作为独立单元，也可以作为联网设备使用，也可以用作应用控制器或人机界面。

该IC754VSL06CTD建立在Microsoft Windows CE.NET 操作系统（也称为 Windows Embedded Compact）之上。Windows Embedded Compact 是具有图形用户界面的 32 位操作系统，其功能类似于其他 Microsoft 操作系统，如 Windows 2000 和 Windows XP。该显示面板由运行频率为 300MHz 的 Intel XScale PXA255 处理器供电。

Windows CE.NET 操作系统支持多种功能和功能。Pocket Internet Explorer 应用程序用于加载网页。注意：要使此显示面板加载网站，必须首先通过以太网或拨号建立与Internet的连接。也可以通过代理服务器进行 Internet 连接。其他软件功能包括注册表和设置备份、存储管理器实用程序和文件传输实用程序。此外，该设备可以查看常见的文件格式，例如 PDF、文档和电子表格;但是，查看这些格式有几个限制。

该设备主要由 5.75 英寸（14.6cm）触摸屏显示器操作。触摸屏的分辨率为 320 X 240 像素，能够产生 65,536 种颜色。还支持其他输入设备，例如通过 USB 连接的外部键盘。

IC754VSL06CTD具有多种类型的内存，包括 NVRAM、SRAM、DRAM 和 ROM，并且某些内存系统可以升级。该设备还支持一个CF卡插槽和两个用于外部存储的USB端口。

☆型号：IC754VSL06CTD-ML 便携式计算机 应用控制器或人机界面

【英文介绍】

The IC754VSL06CTD is a TFT color display and control QuickPanel computer manufactured by GE Fanuc. The device is a portable computer designed for flexibility and adaptability, making it ideal for factory floor operations. The display panel can be used either as a standalone unit, as a networked device, as an application controller or as a human-machine interface.

The IC754VSL06CTD is built on top of the Microsoft Windows CE.NET operating system, also known as Windows Embedded Compact. Windows Embedded Compact is a 32-bit operating system with a graphical user interface that is similar in functionality to other Microsoft operating systems such as Windows 2000 and Windows XP. The display panel is powered by an Intel XScale PXA255 processor running at 300MHz.

The Windows CE.NET operating system supports a variety of features and functions. The Pocket Internet Explorer application is used to load web pages. Note: For this display panel to load a website, you must first establish a connection to the Internet via Ethernet or dial-up. You can also connect to the Internet through a proxy server. Additional software features include registry and setup backup, storage manager utility, and file transfer utility. In addition, the device can view common file formats such as PDFS, documents, and spreadsheets; However, there are several limitations to viewing these formats.

The device is primarily operated by a 5.75-inch (14.6cm) touchscreen display. The touchscreen has a resolution of 320 X 240 pixels and is capable of producing 65,536 colors. Other input devices are also supported, such as external keyboards connected via USB.

The IC754VSL06CTD has several types of memory, including NVRAM, SRAM, DRAM, and ROM, and certain memory systems can be upgraded. The device also supports a CF card slot and two USB ports for external storage.

☆型号：IC754VSL06CTD-ML 便携式计算机 应用控制器或人机界面
