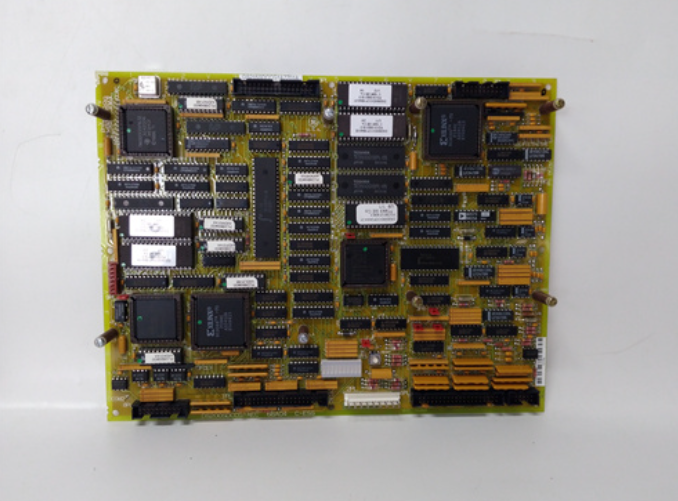

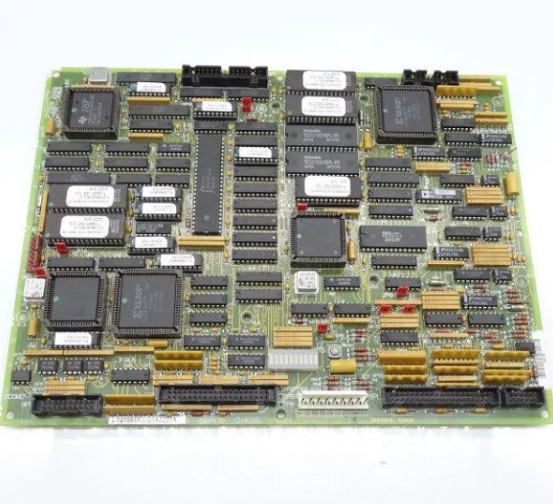

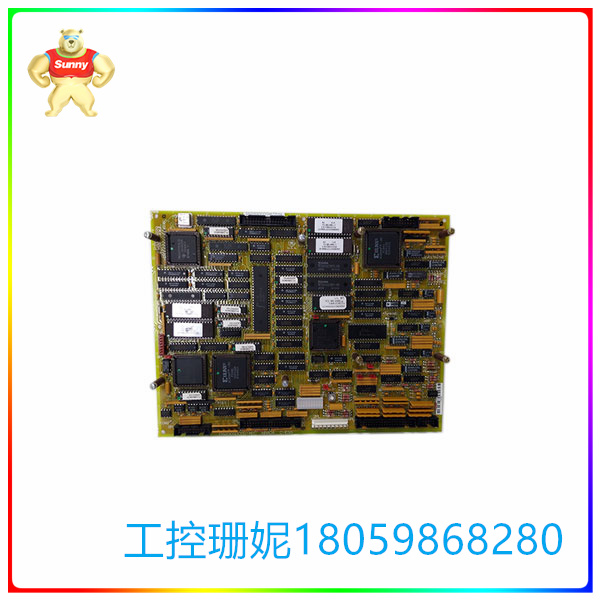

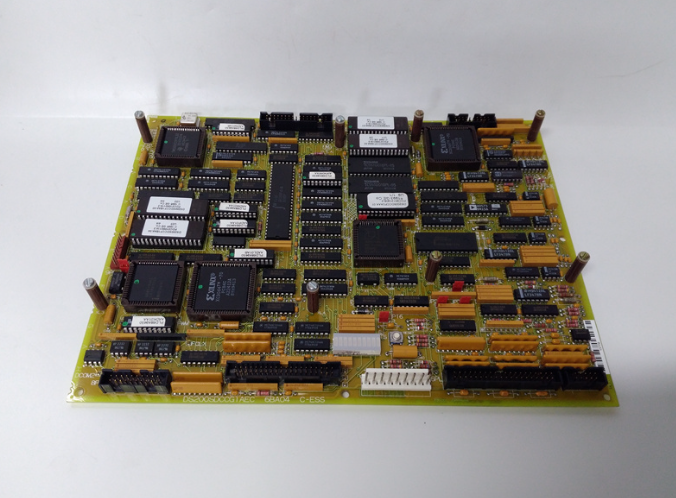

☆型号：DS215SDCCG1AZZ01A 驱动控制卡 驱动控制处理器
【产品详情】
通用电气 DS215SDCCG1AZZ01A 是为 Mark V 系列电路板开发的驱动控制卡。该卡上包含主控制电路和系统软件。此卡的用途包括 AC2000、DC2000 和 EX2000 系列驱动器的驱动器应用程序。该板由三个微处理器和一个双端口RAM组成。
DS215SDCCG1AZZ01A上的微处理器包括驱动控制处理器 （DCP）、电机控制处理器 （MCP） 和协电机处理器 （CMP）。外设功能以及模拟和数字I/O均使用DCP进行处理。地址解码器、等待状态生成器和中断控制器等程序都由该处理器执行。MCP 执行电机控制功能以及系统 I/O 功能。如果 MCP 的处理能力不足以执行控制算法，则 CMP 将接管。 该处理器具有计算高级数学计算所需的额外处理能力。存储空间集成在驱动器上的五个内存芯片中。故障代码显示使用 10 个板载 LED 组。代码将以二进制编码十进制 （BCD） 或二进制形式显示给用户。
GE 提供了应满足的存储和安装参数，以确保卡及其安装的驱动器正常运行。该卡的完整安装指南可在部件手册和数据表中找到。DS215SDCCG1AZZ01A的技术支持最初由通用电气提供。
☆型号：DS215SDCCG1AZZ01A 驱动控制卡 驱动控制处理器
【英文介绍】
The General Electric DS215SDCCG1AZZ01A is a drive control card developed for the Mark V series circuit board. The card contains the main control circuit and system software. Uses for this card include drive applications for AC2000, DC2000, and EX2000 series drives. The board consists of three microprocessors and a dual-port RAM.
The microprocessor on the DS215SDCCG1AZZ01A includes a Drive control processor (DCP), a motor control processor (MCP), and a comotor processor (CMP). Peripheral functions as well as analog and digital I/O are handled using DCP. Programs such as address decoders, wait state generators, and interrupt controllers are executed by this processor. MCP performs motor control functions as well as system I/O functions. If the processing power of the MCP is insufficient to execute the control algorithm, the CMP takes over. The processor has the additional processing power needed to perform advanced mathematical calculations. The storage space is integrated into five memory chips on the drive. Fault codes are displayed using 10 on-board LED groups. The code will be displayed to the user in binary coded decimal (BCD) or binary form.
GE provides storage and installation parameters that should be met to ensure the proper operation of the card and its mounted drives. The complete installation guide for the card can be found in the part manual and data sheet. Technical support for the DS215SDCCG1AZZ01A was initially provided by General Electric.
