DS200RTBAG3A 继电器端子板 控制板远程驱动

☆型号：DS200RTBAG3A 继电器端子板 控制板远程驱动

【产品详情】

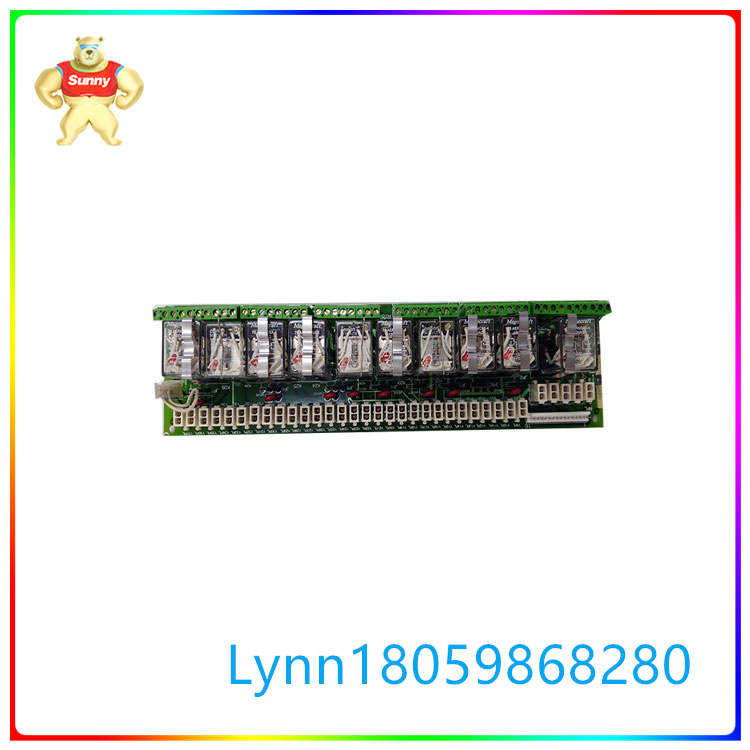

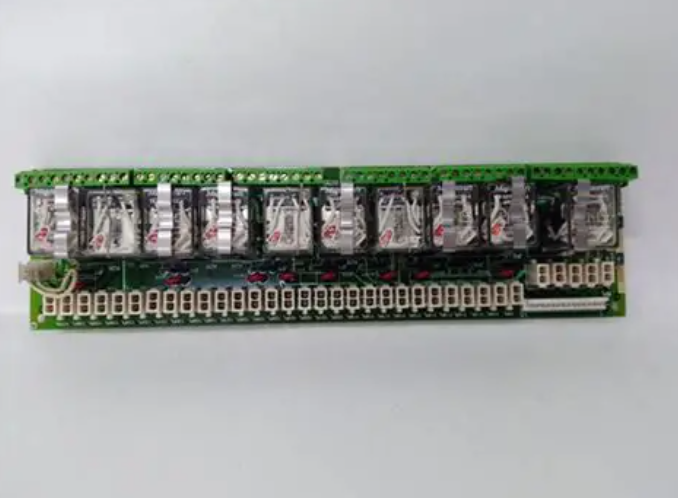

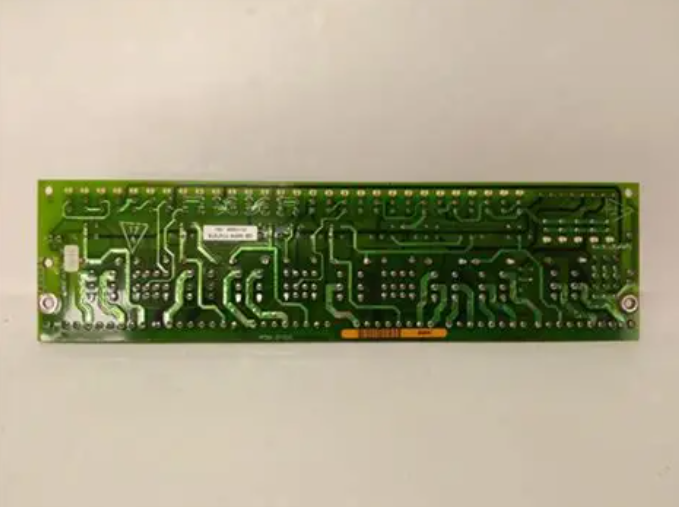

DS200RTBAG3A是通用电气开发的Mark V系列继电器端子板。使用此板时，已安装的主机将额外提供 10 个中继点。许多GE品牌的励磁机和驱动器都可以将此卡安装到其操作柜中。继电器可以由用户或板载LAN I/O终端控制板远程驱动。

在这个板上，十个继电器由两种不同的类型组成。其中 7 个继电器是 DPDT 类型，位于位置 K20 到 K26。每个 DPDT 继电器都包括两个 C 型触点。这些类型的继电器上的每个触点的额定电流为 10A。位置 K27 至 K29 的其他三个继电器是 4PDT 型。这些继电器类型包括四个 C 型触点。这些触点的速率为每个 1A。所有继电器的 I/O 均由 130 VAC MOV（金属氧化物压敏电阻）保护。每个继电器还包含一个 110 VDC 线圈，以确保电路板功能正常。如果任何继电器发生故障，用户可以快速轻松地拆卸和更换DS200RTBAG3A上的任何继电器。

主板和驱动器都提供了一组由制造商确定的安装参数。遵循这些操作将确保主板及其安装的驱动器按预期运行。要重新view DS200RTBAG3A的完整接线指南，请参阅系列手册或设备数据表。Mark V 系列可选和替换板最初由制造商通用电气提供技术服务。

☆型号：DS200RTBAG3A 继电器端子板 控制板远程驱动

【英文介绍】

DS200RTBAG3A is a Mark V series relay terminal board developed by General Electric. When using this board, the installed host will provide an additional 10 relay points. Many GE brand exciters and drivers can install the card into their operating cabinets. Relays can be driven remotely by the user or the onboard LAN I/O terminal control board.

On this board, ten relays are made up of two different types. Seven of the relays are of DPDT type and are located at positions K20 to K26. Each DPDT relay includes two C-type contacts. Each contact on these types of relays is rated at 10A. The other three relays at positions K27 to K29 are of type 4PDT. These relay types include four type C contacts. The speed of these contacts is 1A each. The I/O of all relays is protected by 130 VAC MOV (metal oxide varistor). Each relay also contains a 110 VDC coil to ensure that the board is functioning properly. If any relay fails, the user can quickly and easily remove and replace any relay on the DS200RTBAG3A.

Both the motherboard and the drive provide a set of installation parameters determined by the manufacturer. Following these actions will ensure that the motherboard and its mounted drives function as expected. To review the complete wiring guide for the DS200RTBAG3A, refer to the series manual or device data sheet. The Mark V Series optional and replacement boards were initially serviced by manufacturer General Electric.
