☆型号:DS200SSBAG1BAA 驱动器缓冲板 用于连接电缆的接线柱
【产品详情】

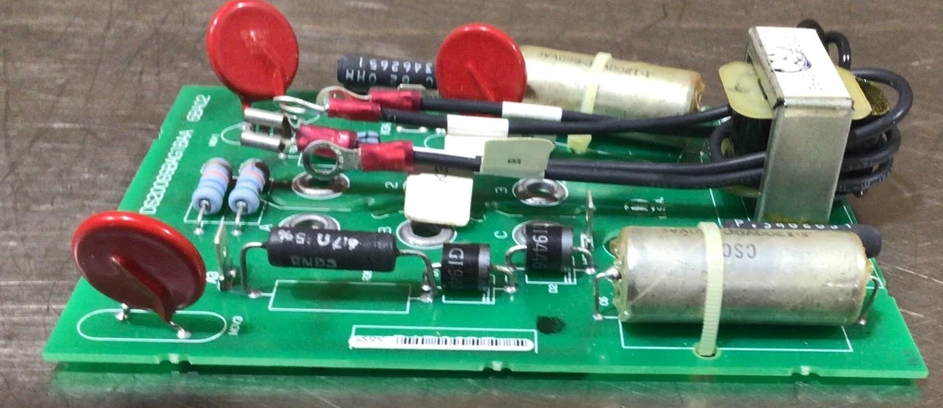

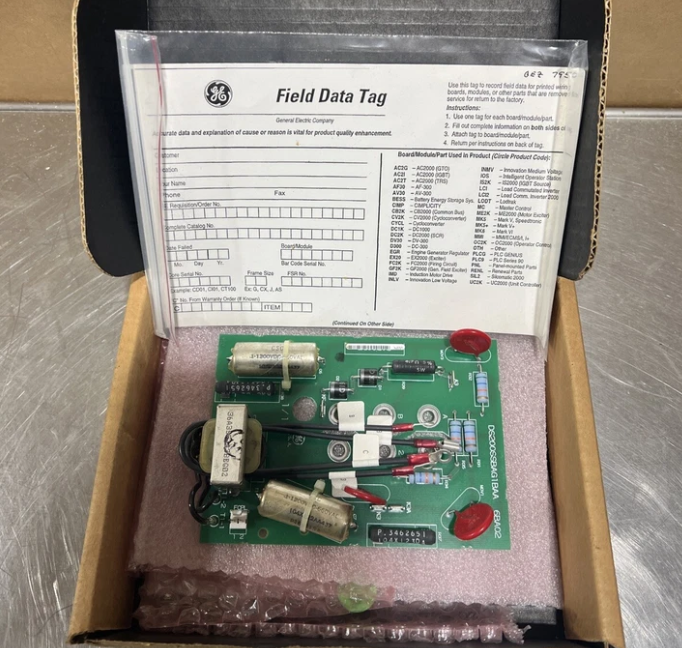

GE DC300 驱动器缓冲板DS200SSBAG1BAA具有一个 2 针连接器、3 个电容器和四个用于连接电缆的接线柱。 电容器标识为 MOV1、MOV2 和 MOV3。标识符印在电容器旁边的电路板上。由于有多根电缆连接到电路板,必须断开这些电缆,然后重新连接到更换板,因此需要遵循一些准则,以避免在更换过程中出现错误,这些错误可能导致服务人员将电缆连接到错误的端子。
在从驱动器上卸下有缺陷的主板之前,请检查连接到端子的电缆,并记下分配给端子的 ID。在标签或贴纸上写下每根电缆所连接的连接器的 ID,并将其连接到电缆上。电路板上还有一个 2 针连接器。但是,由于只有一个 2 针连接器,因此您可以断开它,而无需在其上贴上标签或贴纸。
确保找到一个角度,以便您能够很好地看到主板机柜,以便您可以在不损坏驱动器中的其他主板或组件的情况下卸下主板。小心地将螺丝刀插入其中一个螺钉并松开螺丝。用一只手将螺丝刀引导到螺丝上可能会有所帮助。卸下螺钉时用一只手握住螺钉,并将所有螺钉和垫圈放在一起,以便在安装更换件时使用。
☆型号:DS200SSBAG1BAA 驱动器缓冲板 用于连接电缆的接线柱
【英文介绍】
The GE DC300 driver buffer board DS200SSBAG1BAA has a 2-pin connector, 3 capacitors, and four terminals for connecting cables. The capacitors are identified as MOV1, MOV2 and MOV3. The logo is printed on the circuit board next to the capacitor. Since there are multiple cables connected to the board, these cables must be disconnected and then reconnected to the replacement board, there are guidelines to follow to avoid errors during the replacement process that could lead service personnel to connect the cable to the wrong terminal.
Before removing the defective motherboard from the drive, check the cable connected to the terminal and note the ID assigned to the terminal. Write the ID of the connector to which each cable is connected on the label or sticker and attach it to the cable. There is also a 2-pin connector on the board. However, since there is only one 2-pin connector, you can disconnect it without putting a label or sticker on it.
Make sure to find an Angle so that you have a good view of the motherboard cabinet so that you can remove the motherboard without damaging other motherboards or components in the drive. Carefully insert the screwdriver into one of the screws and loosen the screw. It may help to guide the screwdriver onto the screws with one hand. Hold the screw with one hand while removing it and place all screws and washers together for use when installing the replacement.
