IC200MLD650
IC200MLD650

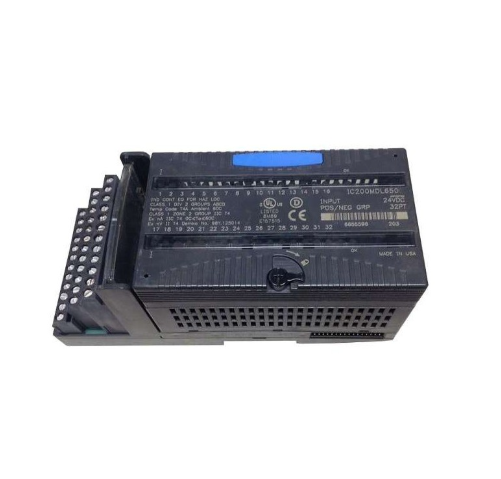

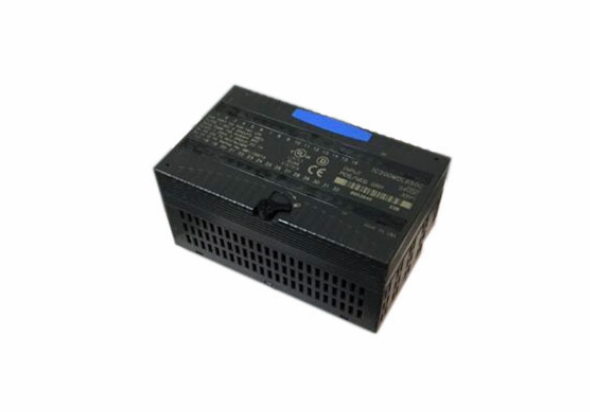

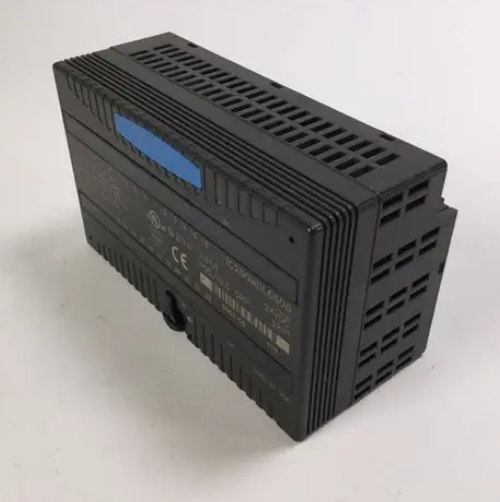

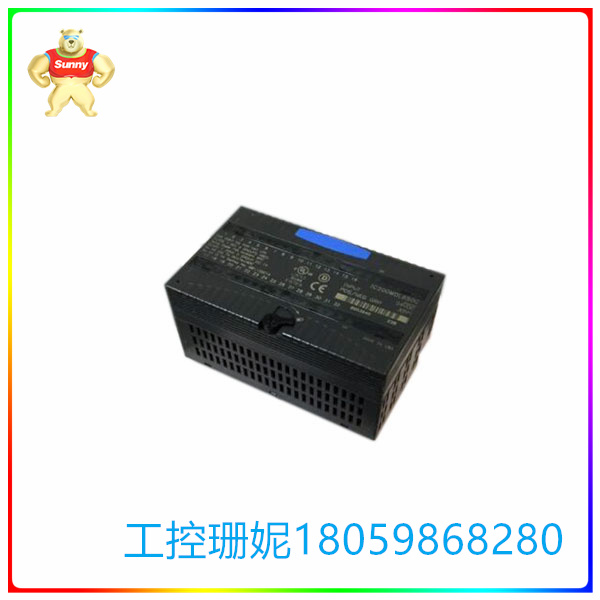

IC200MLD650 高密度分立式输入模块 支持正负逻辑接线配置

型号:IC200MLD650高密度分立式输入模块支持正负逻辑接线配置【产品详情】该IC200MDL650是GEVersaMaxI/O平台的高密度分立式输入模块。

联系人:Sunny

手机:18059884797

QQ:3095989363

邮箱:xiongbagk@gmail.com

产品详情

型号:IC200MLD650 高密度分立式输入模块 支持正负逻辑接线配置







【产品详情】





该IC200MDL650是GE VersaMax I/O平台的高密度分立式输入模块。该模块具有三十二 (32) 个输入通道,支持正负逻辑接线配置,分为四 (4) 组,每组八 (8) 个输入通道。该模块具有额定值为 250 VAC(连续)和 1500 VAC 持续 1 分钟的组间隔离。这种类型的模块通常用于各种工业应用,主要用于集成输入设备,如按钮、辅助触点、限位开关、液位开关、接近传感器和类似的二进制或开/关设备。


IC200MDL650的输入通道设计用于接受 0-30 VDC 的输入电压信号范围,其中 24 VDC 作为标称输入。该模块的导通状态电压为 +15 至 +30 VDC,关闭状态电压为 0 至 +5 VDC,而导通状态和关闭状态电流额定值分别为 w.0 至 5.5 mA 和 0 至 0.5 mA。对于“开”到“关”和“关”到“开”通道状态转换,响应时间典型值为0.5 ms(最大值)。此外,输入通道还具有可配置的输入滤波时间,可用于消除去抖动、假阳性和假阴性信号。具体来说,可用的滤波器设置为 0 ms、1.0 ms 和 7.0 ms,默认设置为 1.0 ms。


该模块安装在标准DIN导轨上,支持水平和垂直方向。它配有单独的通道状态 LED 指示灯,用于描述每个输入通道的驱动状态。


GE Fanuc Versamax IC200MDL650 分立式输入模块设计用于直流输入设备。该模块的输入特性与各种输入器件兼容,可配置为正逻辑或负逻辑输入。IC200MDL650 分立式输入模块从 PLC 背板汲取最大 50 毫安的电流来上电。此 24 伏直流输入模块在 24 伏直流时没有任何降额,其确切功能取决于外部电压、所连接的 DIN 导轨的方向以及周围的环境温度。每个输入点都有一个 LED 指示灯,用于提供输入通道的开/关状态。输入与用户提供的输入设备兼容,例如传感器、限位开关和按钮。




型号:IC200MLD650 高密度分立式输入模块 支持正负逻辑接线配置






英文介绍





The IC200MDL650 is a high-density discrete input module for the GE VersaMax I/O platform. The module has thirty-two (32) input channels, supports positive and negative logic wiring configuration, is divided into four (4) groups, each group of eight (8) input channels. The module has inter-group isolation rated at 250 VAC (continuous) and 1500 VAC for 1 minute. This type of module is commonly used in a variety of industrial applications, primarily for integrating input devices such as buttons, auxiliary contacts, limit switches, level switches, proximity sensors, and similar binary or on/off devices.


The input channel of the IC200MDL650 is designed to accept an input voltage signal range of 0-30 VDC, with 24 VDC as the nominal input. The module has on-state voltages of +15 to +30 VDC and off state voltages of 0 to +5 VDC, while on-state and off state current ratings are w.0 to 5.5 mA and 0 to 0.5 mA, respectively. For "On" to "off" and "off" to "on" channel state transitions, the response time is typically 0.5 ms (maximum). In addition, the input channel has a configurable input filtering time that can be used to eliminate de-jitter, false positive and false negative signals. Specifically, the available filter Settings are 0 ms, 1.0 ms, and 7.0 ms, with the default setting being 1.0 ms.


The module is mounted on a standard DIN rail and supports horizontal and vertical orientations. It is equipped with a separate channel status LED indicator that describes the drive status of each input channel.


The GE Fanuc Versamax IC200MDL650 discrete input module is designed for use in DC input devices. The input characteristics of the module are compatible with various input devices and can be configured as positive or negative logic inputs. The IC200MDL650 split input module draws up to 50 mA of current from the PLC backplane to power on. This 24V DC input module does not have any derating at 24V DC, and its exact function depends on the external voltage, the direction of the DIN rail to which it is attached, and the surrounding ambient temperature. Each input point has an LED indicator that provides the on/off status of the input channel. Inputs are compatible with user-supplied input devices, such as sensors, limit switches and buttons.
