1326AS-B460F-21
1326AS-B460F-21

1326AS-B460F-21 交流额定伺服电机 转矩曲线显示

型号:1326AS-B460F-21交流额定伺服电机转矩曲线显示【产品详情】Allen-Bradley1326AS-B460F-21伺服电机是1326AS系列伺

联系人:Sunny

手机:18059884797

QQ:3095989363

邮箱:xiongbagk@gmail.com

产品详情

型号:1326AS-B460F-21 交流额定伺服电机 转矩曲线显示







【产品详情】

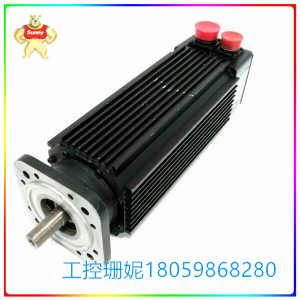

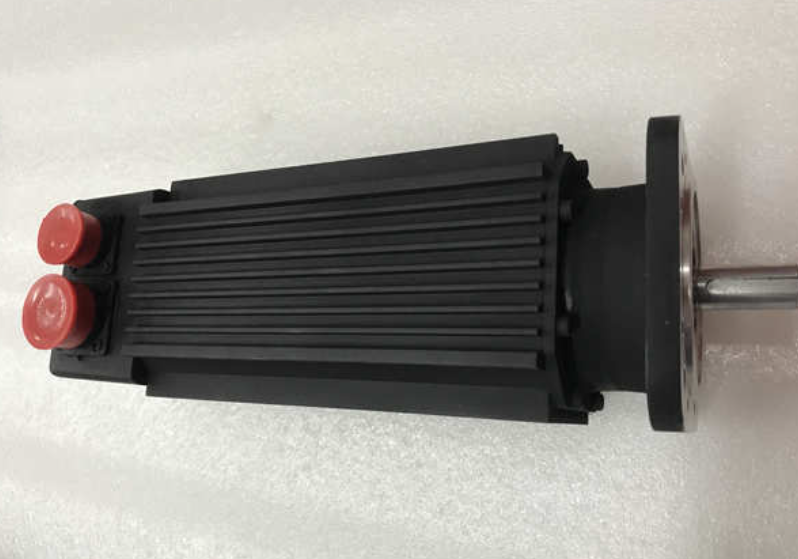

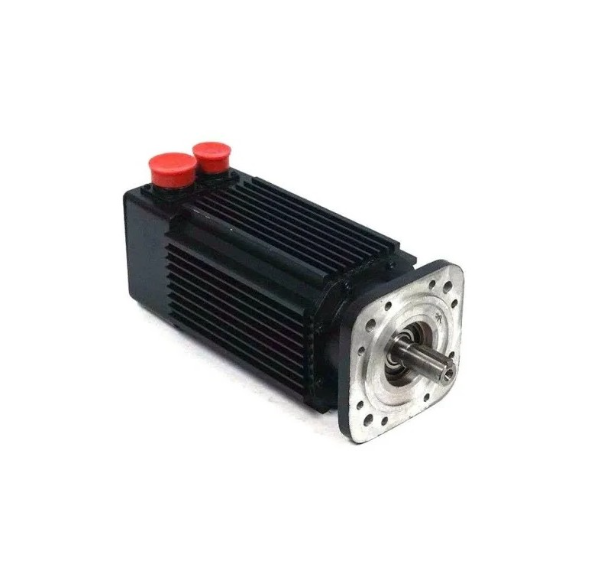

Allen-Bradley 1326AS-B460F-21 伺服电机是 1326AS 系列伺服电机中的一款 460 伏交流额定伺服电机。这种交流伺服电机使用稀土磁铁的功率,在比平时小得多的空间内将可用扭矩水平提高一倍。当与 Allen-Bradley 的 AM04、AM07 或 AM50 伺服驱动器结合使用时,它形成了一个完整的伺服电机系统,能够达到极其精确的定位和高达 4300 RPM(460 伏交流电)的速度。这种系统经过成本优化,设计为即插即用原则。它不仅可以精确地运行电机,还可以保护电机免受过流、高电压、过高温度和危险扭矩水平的影响。1326AS-B460F-21伺服电机通过使用旋转变压器形成速度和位置闭环控制,将其位置信息发送给用户。其最常见的应用之一是以受控加速度加速。




Allen-Bradley 1326AS-B460F-21伺服电机的速度-转矩曲线显示,该装置可以保持其标称转速,直到达到6 N-m的连续转矩,之后,转速线性下降到3500 RPM,最高可达27.1 N-m,这是峰值失速转矩值。Allen-Bradley 建议工作和储存温度范围分别保持在 0 至 40 摄氏度和 -30 至 70 摄氏度之间。1326AS-B460F-21伺服电机具有B段隔热功能,其热时间常数为41分钟。电机总重量为 13.8 千克(30.4 磅)。该电机安装在IEC公制法兰上,负载通过键轴连接到其上。该电机有许多配件可用于不同的应用,例如 24 伏直流制动器或轴密封套件。




型号:1326AS-B460F-21 交流额定伺服电机 转矩曲线显示




英文介绍





Allen-Bradley 1326AS-B460F-21 servo motor is a 460-volt AC rated servo motor in the 1326AS series. This AC servo motor uses the power of rare earth magnets to double the available torque level in a much smaller space than usual. When combined with Allen-Bradley's AM04, AM07 or AM50 servo drives, it forms a complete servo motor system capable of extremely accurate positioning and speeds of up to 4,300 RPM (460 volts AC). The system is cost-optimized and designed on a plug-and-play basis. Not only does it run the motor accurately, it also protects the motor from overcurrent, high voltage, excessive temperature and dangerous torque levels. The 1326AS-B460F-21 servo motor sends its position information to the user by using a rotating transformer to form closed-loop control of speed and position. One of its most common applications is controlled acceleration.




The speed-torque curve of the Allen-Bradley 1326AS-B460F-21 servo motor shows that the unit can maintain its nominal speed until it reaches a continuous torque of 6 N-m, after which the speed drops linearly to 3,500 RPM for a maximum of 27.1 N-m, which is the peak stall torque value. Allen-Bradley recommends operating and storage temperature ranges of 0 to 40 degrees Celsius and -30 to 70 degrees Celsius, respectively. The 1326AS-B460F-21 servo motor has B-stage insulation and a thermal time constant of 41 minutes. The total weight of the motor is 13.8 kg (30.4 lb). The motor is mounted on an IEC metric flange to which the load is connected via a key shaft. The motor has a number of accessories available for different applications, such as 24-volt DC brakes or shaft seal kits.




型号:1326AS-B460F-21 交流额定伺服电机 转矩曲线显示
