IC220PBI002 网络接口模块 连接器

☆型号：IC220PBI002 网络接口模块 连接器

【产品详情】

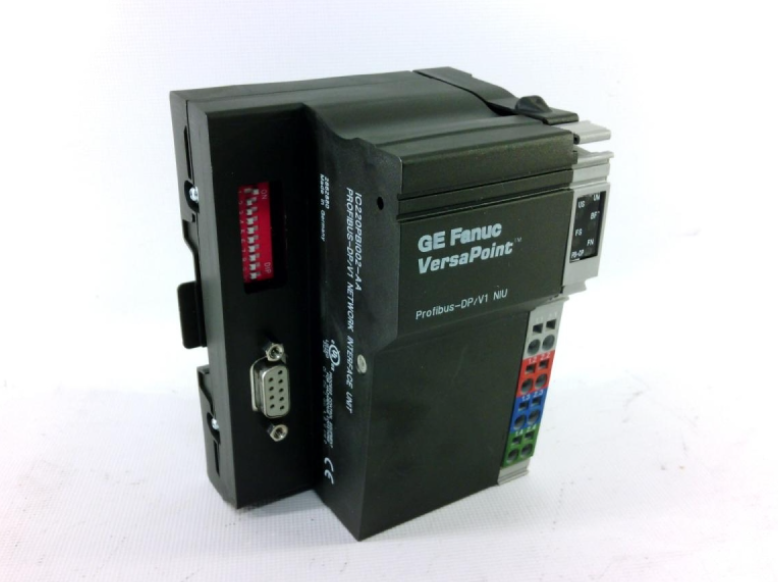

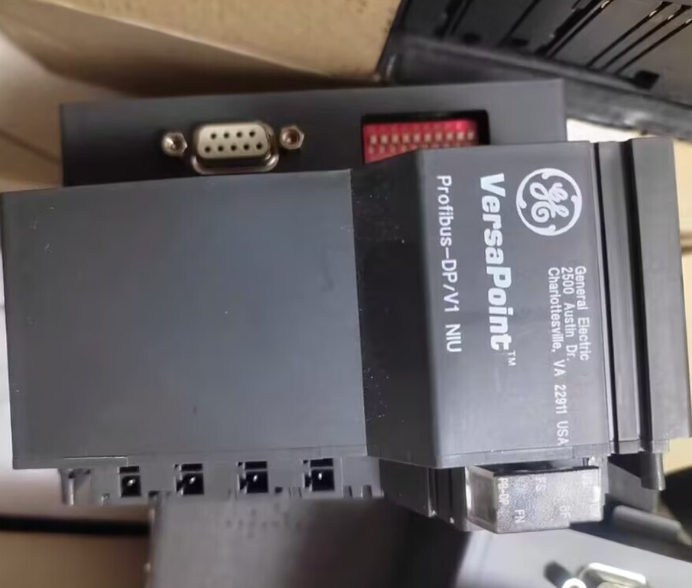

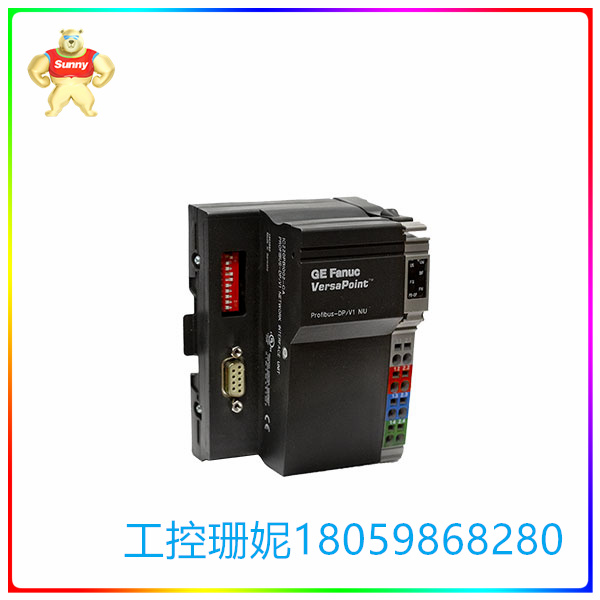

IC220PBI002由 GE Fanuc Automation 制造，是 VersaPoint 系列的一部分。该部件是PROFIBUS-DP网络接口模块。数据速率高达每秒 12 Mbits。本机支持串行通信。本机不支持固件升级。24 VDC 是标称功率输入电压。19.2-30 VDC 是电源电压范围。该装置上可能有 63 个受支持的模块。此模块上不支持数字 LCD 显示。没有数字输入或输出。

最大功率为 8 安培。本地总线 UA 的电流为 500 mA。所需的端子排 IC220TBK087 包含 10 个端子排。PROFIBUS 系统包括 Profibus-DP 网络接口单元、c、DIP 开关和 LED。一组互连的 VersaPoint I/O 模块可以作为从站连接在 Profibus-DP 网络上。VersaPoint Profibus-DP 网络接口单元是网络和模块之间的接口。对于模块IC220PBI002，每个工作站最多可以有 176 字节的输入和输出数据。

☆型号：IC220PBI002 网络接口模块 连接器

【英文介绍】

The IC220PBI002 is manufactured by GE Fanuc Automation and is part of the VersaPoint family. This component is a PROFIBUS-DP network interface module. Data rate up to 12 Mbits per second. This unit supports serial communication. This machine does not support firmware upgrade. 24 VDC is the nominal power input voltage. 19.2-30 VDC is the supply voltage range. There may be 63 supported modules on the device. Digital LCD display is not supported on this module. There is no digital input or output.

The maximum power is 8 amps. The current of the local bus UA is 500 mA. The required terminal block IC220TBK087 consists of 10 terminal blocks. The Profibus system includes the PROFIBUS-DP network interface unit, connectors, DIP switches and leds. A set of interconnected VersaPoint I/O modules can be connected as slave stations on the Profibus-DP network. The VersaPoint Profibus-DP network interface unit is the interface between a network and a module. For module IC220PBI002, each workstation can have up to 176 bytes of input and output data.
