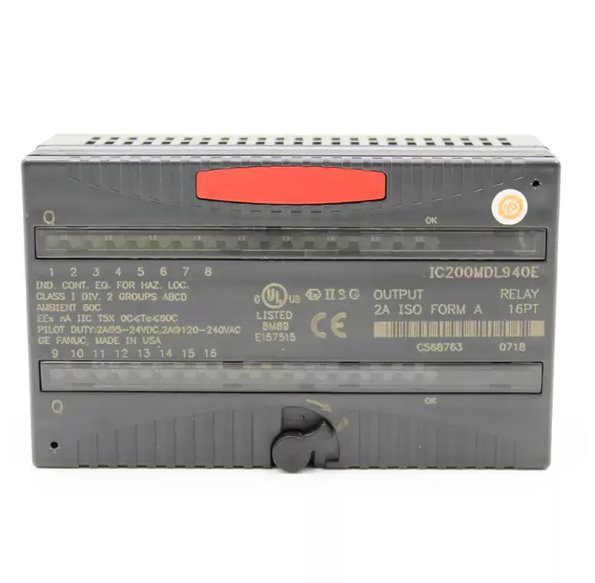

IC200MDL940E 输出模块 有 16 个输出点

☆型号：IC200MDL940E 输出模块 有 16 个输出点

【产品详情】

IC200MDL940是通用电气的 A 型继电器 VersaMax 输出模块，共有 16 个输出点。 该器件的输出点分为两组，每组 8 个，每个点也单独隔离。组到组和通道到通道的隔离也是可能的。IC200MDL940具有带移动电枢的固定线圈继电器类型，触点类型为银。该模块与 IC200CHS101 和 IC200CHS102 系列 VersaMax 插入断开底座兼容。

该IC200MDL940将消耗高达 490 毫安的电流，该输出背板来自该器件接收其主电源的 5 伏输出背板。但是，对于所有负载切换，将需要另一个电源。IC200MDL940的输出电压有两种设置：交流电和直流电。使用交流电时，输出电压范围为 0 至 265 伏，频率为 47 至 63 赫兹，但标称电压为 120 伏和 240 伏。使用直流电时，输出电压为 0 至 125 伏，但标称电压为 5 伏、24 伏或 125 伏。

每个点的负载电流最小为 10 毫安;但是，这将根据电压条件而变化。使用 5 至 265 伏的交流电，每点的负载最大为 2 安培。当使用 5 到 30 伏直流电时，每点的负载也最多为 2 安培。使用 31 至 125 伏直流电时，每点负载为 0.2 安培。注意：这些负载电流都是阻性的。热降额、保险丝和缓冲器不适用于IC200MDL940。

☆型号：IC200MDL940E 输出模块 有 16 个输出点

【英文介绍】

The IC200MDL940 is A General Electric Type A relay VersaMax output module with 16 output points. The output points of the device are divided into two groups of eight each, and each point is also isolated separately. Group-to-group and channel-to-channel isolation are also possible. The IC200MDL940 has a fixed coil relay type with moving armature and the contact type is silver. The module is compatible with the IC200CHS101 and IC200CHS102 series VersaMax plug-in disconnect sockets.

The IC200MDL940 will consume up to 490 mah of current from the 5-volt output backplane from which the device receives its main power supply. However, for all load switching, another power supply will be required. The output voltage of the IC200MDL940 is available in two Settings: AC and DC. When using AC, the output voltage ranges from 0 to 265 volts and the frequency is 47 to 63 Hz, but the nominal voltages are 120 volts and 240 volts. When using direct current, the output voltage is 0 to 125 volts, but the nominal voltage is 5 volts, 24 volts or 125 volts.

The minimum load current at each point is 10 mA; However, this will vary depending on voltage conditions. Ac from 5 to 265 volts is used, with a maximum load of 2 amps per point. When using 5 to 30 volts of direct current, the load per point is also up to 2 amps. When using 31 to 125 volts of direct current, the load is 0.2 amps per point. Note: These load currents are resistive. Heat derating, fuses and buffers are not applicable to the IC200MDL940.

☆型号：IC200MDL940E 输出模块 有 16 个输出点
