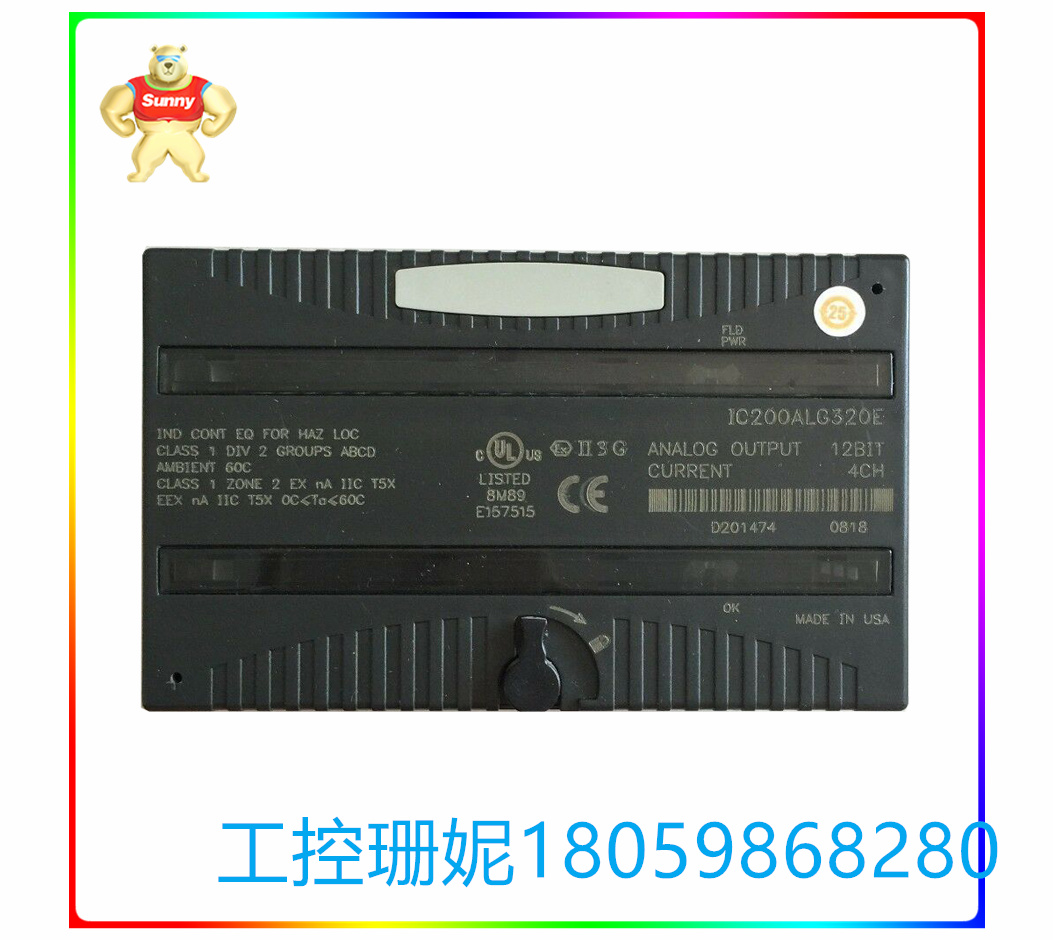

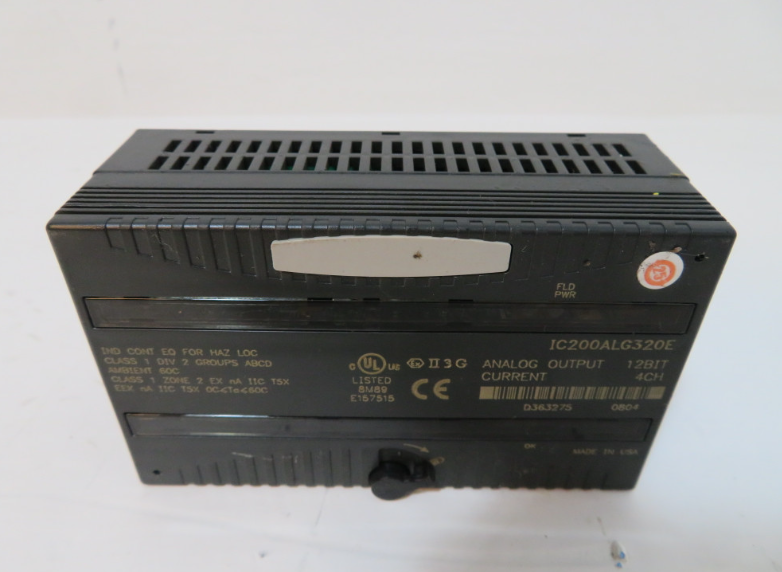

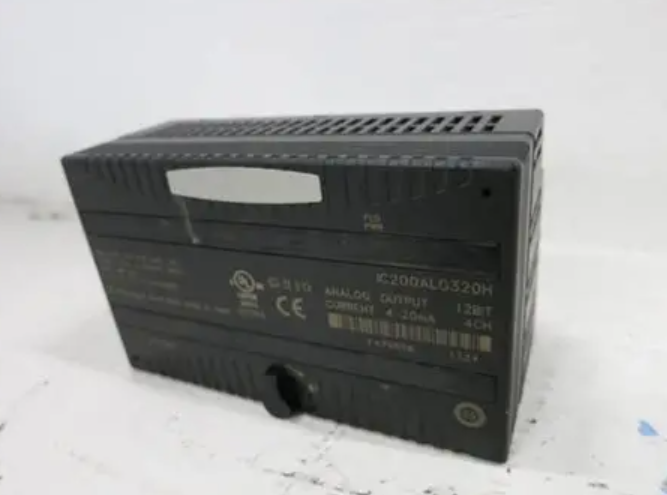

☆型号:IC200ALG320E 模拟输出模块 分布式 I/O 模块
【产品详情】
该IC200ALG320是一个模拟输出模块,属于 VersaMax 系列分布式 I/O 模块,以前由 GE 智能平台生产,现在隶属于艾默生自动化。该模块通常用作分布式或远程 I/O 网络的一部分,通常用于大中型控制系统,消除长时间的信号运行,并有助于构建强大且可扩展的控制系统。
该IC200ALG320带有四 (4) 个单端模拟输出通道,可产生 4-20 mA 的输出电流信号,分辨率为 4 μA。它特别可用于自动闭环控制系统以及手动控制或开环控制系统,用于模拟信号跟随设备,如调节阀、风门、百叶窗、定位器、变频驱动器 (VFD) 和类似的操作设备。它还可用于信号重传目的,例如提供代表可编程逻辑控制器 (PLC) 内内部计算变量的输出信号,用于端接到信号分配器或信号隔离器、用于本地读出的面板仪表、用于历史化的数据记录器、单环路控制器或其他 PLC,以实现级联控制器的高级复杂架构。
该IC200ALG320安装了两 (2) 个状态 LED 指示灯,例如 FLD PWR LED,用于指示现场电源的存在,以及用于描述背板电源持续供应的 OK LED。该模块还具有用户侧电源检测功能,并可配置输出默认值,以响应 CPU 停止或模块故障,例如保持最后状态或输出降频至 4 mA。
IC200ALG320模块是由GE Fanuc Automation设计的模拟输出模块,包含在Versamax系列I/O模块中。该特定模块配备 4 个模拟电流源输出,额定电流范围为 4 至 20 毫安。这些输出提供 20.38 毫安的平均额定电流。该模块仅在连接到背板电源时才能运行,并且输出需要 18-30VDC 或 9.6 至 15 VDC 的外部电源。模块的处理最终由连接到模块的 CPU 或主网络接口单元执行。GE Fanuc Automation IC200ALG320 模拟输出模块带有 2 个不同的 LED 指示灯,用于显示模拟电路的用户侧电源的存在,以及一个 OK 指示灯,当模块中存在背板电源时亮起。
☆型号:IC200ALG320E 模拟输出模块 分布式 I/O 模块
【英文介绍】
The IC200ALG320 is an analog output module that belongs to the VersaMax family of distributed I/O modules, formerly produced by GE Intelligence Platforms and now owned by Emerson Automation. Typically used as part of a distributed or remote I/O network, the module is often used in medium to large control systems, eliminating long signal runs and helping to build robust and scalable control systems.
The IC200ALG320 comes with four (4) single-ended analog output channels that produce a 4-20 mA output current signal with a resolution of 4 μA. It is particularly useful in automatic closed loop control systems as well as manual or open loop control systems for analog signal following devices such as regulator valves, damper, shutters, positioners, variable frequency drivers (VFDS) and similar operating devices. It can also be used for signal retransmission purposes, such as providing an output signal that represents an internal calculation variable within a programmable logic controller (PLC), for terminating to a signal splitter or signal isolator, a panel meter for local readout, a data logger for historization, a single-loop controller, or other PLCS for the advanced complex architecture of a cascade controller.
The IC200ALG320 is equipped with two (2) status LED indicators, such as the FLD PWR LED, to indicate the presence of field power, and an OK LED to describe the continuous supply of backplane power. The module also has user-side power detection and can be configured with output defaults in response to CPU stop or module failure, such as holding the last state or output downfrequency to 4 mA.
The IC200ALG320 module is an analog output module designed by GE Fanuc Automation and included in the Versamax family of I/O modules. This particular module is equipped with four analog current source outputs with a rated current range of 4 to 20 mA. These outputs provide an average rated current of 20.38 mA. The module only operates when connected to the backplane power supply, and the output requires an external power supply of 18-30VDC or 9.6 to 15 VDC. The processing of the module is ultimately performed by the CPU or main network interface unit connected to the module. The GE Fanuc Automation IC200ALG320 analog output module comes with 2 different LED indicators that indicate the presence of user-side power for the analog circuit, and an OK indicator that lights up when backplane power is present in the module.
