IC693CHS393J 远程 I/O 基板 分布式 I/O 架构

☆型号：IC693CHS393J 远程 I/O 基板 分布式 I/O 架构

【产品详情】

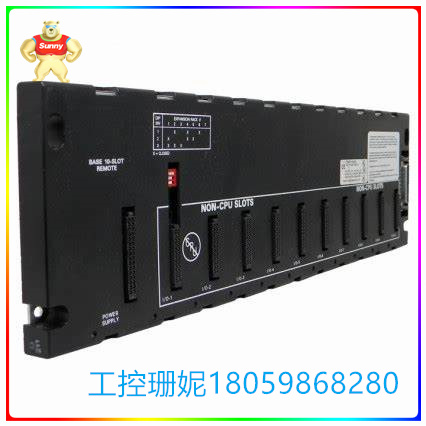

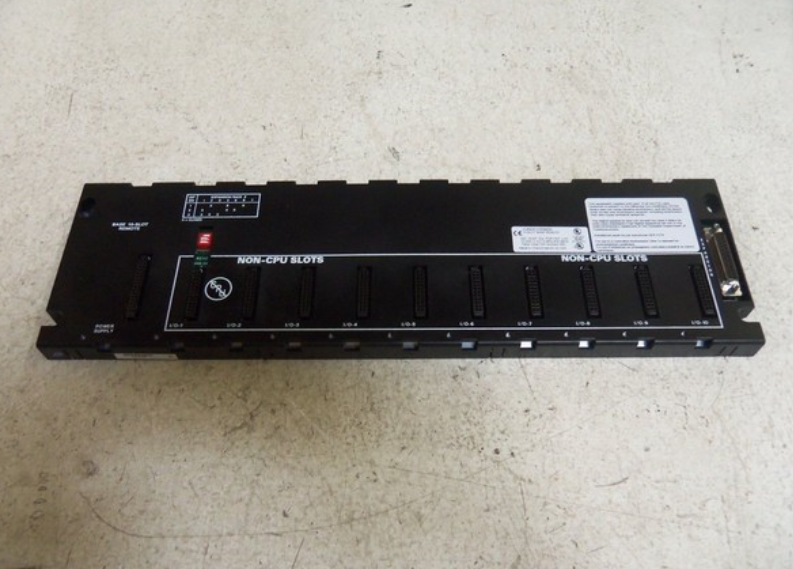

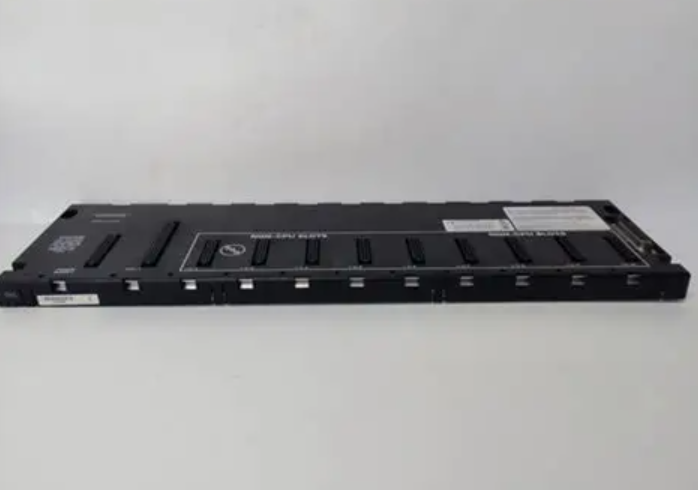

IC693CHS393是兼容 90-30 系列的底板。这特别是一个非 CPU 基板，特别是以前由 GE Fanuc 称为远程 I/O 基板，现在隶属于艾默生自动化。该底板用于实现分布式 I/O 架构，与使用扩展底板相比，Series90-30 能够覆盖更长的扩展距离。使用IC693CHS393时，连接所有远程 I/O 底板的电缆长度不得超过 700 英尺。该IC693CHS393主要具有十 （10） 个 I/O 插槽，支持安装 90-30 系列 I/O 和选件模块。这些 I/O 插槽具有特定且独特的尺寸，不会与其他模块混淆，从而防止错误的模块安装。该底板还配有专用电源插槽，用于安装兼容的电源模块，为远程 I/O 站供电。对于扩展机架寻址，IC693CHS393配有 DIP 开关。此外，该底板在硬件的最右侧设有扩展件，可用于连接其他扩展底板。当与 CPU 331、340 和 341 等 90-30 系列 CPU 一起使用时，允许的最大底板数量为四 （4） 个。如果与 CU 350 或更高版本一起使用，则支持的底板数量为七 （7） 个。此硬件不支持安装 PCM、ADC、BEM330 和 CMM，因为这些模块旨在安装在 CPU 底板上。该底板干草物理测量值为 10.43 x 5.12 x 5.59 英寸，5 VDC 时背板电流消耗为 460 mA。

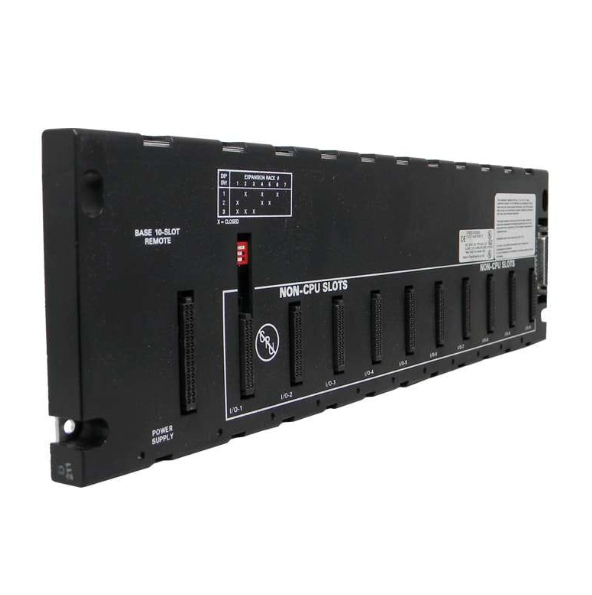

GE Fanuc IC693CHS393底板是GE系列90-30 PLC系统的10槽底板。它使用 460 毫安的电流以及 5 伏直流的逻辑额定电压。它可以轻松连接 700 英尺距离内的所有底板。它的尺寸为宽 17.44 英寸、高 5.12 英寸和深 5.59 英寸。它不是一个独立的单元。相反，它可以与整个PLC系统或计算机一起使用。该扩展IC693CHS393底板配有个人计算机接口卡。该卡可帮助它连接到个人计算机并使用计算机高效运行。它一次最多可支持 4 个 90-30 系列 CPU。对于部件号高于 350 的 90-30 系列 CPU，底板最多可支持 7 个 CPU。底板具有内置隔离功能。隔离有助于解决由于不平衡的地面条件而可能发生的问题。

☆型号：IC693CHS393J 远程 I/O 基板 分布式 I/O 架构

【英文介绍】

The IC693CHS393 is compatible with the 90-30 series. This is particularly a non-CPU substrate, specifically a Remote I/O substrate formerly known by GE Fanuc and now affiliated with Emerson Automation. This backboard is used to implement a distributed I/O architecture, and the Series90-30 is able to cover longer extended distances than using an extended backboard. With IC693CHS393, the length of the cable connecting all remote I/O baseboards must not exceed 700 feet. The IC693CHS393 mainly has ten (10) I/O slots and supports the installation of the 90-30 Series I/O and optional modules. These I/O slots have a specific and unique size and are not confused with other modules, thus preventing incorrect module installation. The backboard also has a dedicated power socket for installing compatible power modules to power remote I/O stations. For extended rack addressing, IC693CHS393 is equipped with a DIP switch. In addition, the backboard has an extension on the far right side of the hardware that can be used to connect to other expansion backboards. When used with 90-30 series cpus such as CPU 331, 340, and 341, the maximum number of baseboards allowed is four (4). If used with CU 350 or later, the number of supported baseboards is seven (7). This hardware does not support the installation of PCM, ADC, BEM330, and CMM, as these modules are intended to be installed on the CPU backboard. The baseboard hay physical measurement is 10.43 x 5.12 x 5.59 inches and the backplane current consumption is 460 mA at 5 VDC.

The GE Fanuc IC693CHS393 baseboard is the 10-slot baseboard of the GE series 90-30 PLC system. It uses a current of 460 MA and a logical voltage rating of 5 volts DC. It can easily connect all baseboards within a distance of 700 feet. Its dimensions are 17.44 inches wide, 5.12 inches high and 5.59 inches deep. It's not a separate unit. Instead, it can be used with an entire PLC system or computer. The extension IC693CHS393 baseboard is equipped with a personal computer interface card. The card helps it connect to a personal computer and run efficiently using the computer. It supports up to four 90-30 series cpus at a time. For 90-30 series cpus with part numbers higher than 350, the baseboard can support up to seven cpus. Baseplate has built-in isolation function. Isolation helps solve problems that can occur due to unbalanced ground conditions.
