IC693CMM321-GH
IC693CMM321-GH

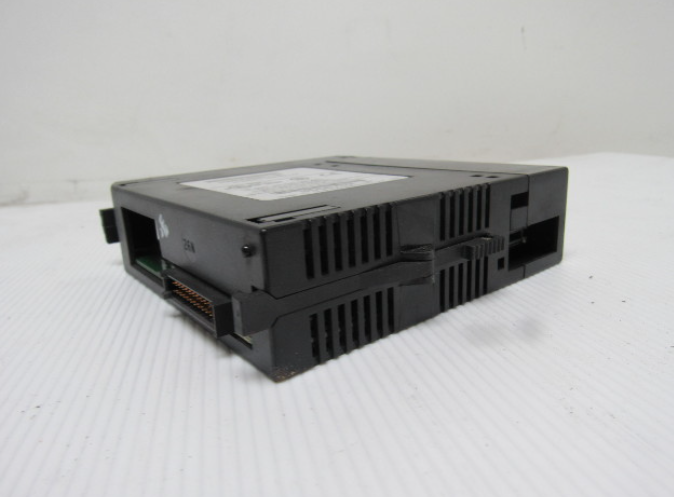

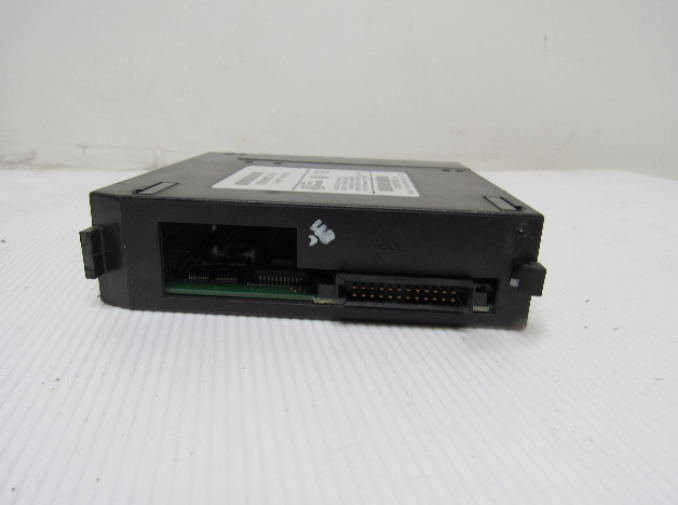

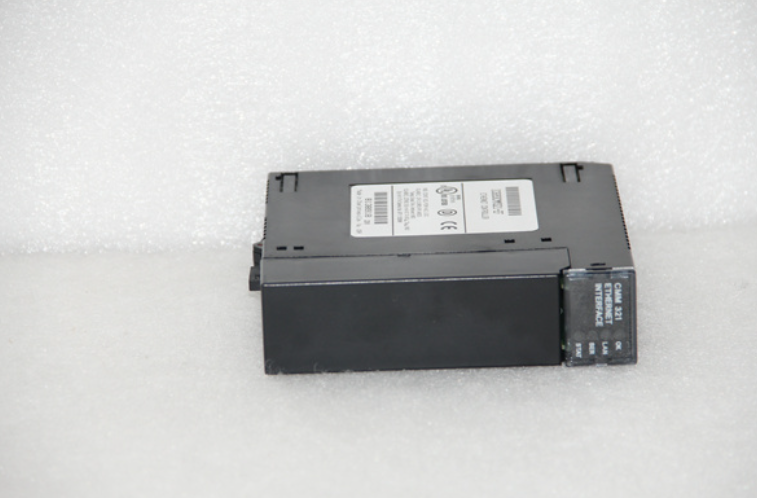

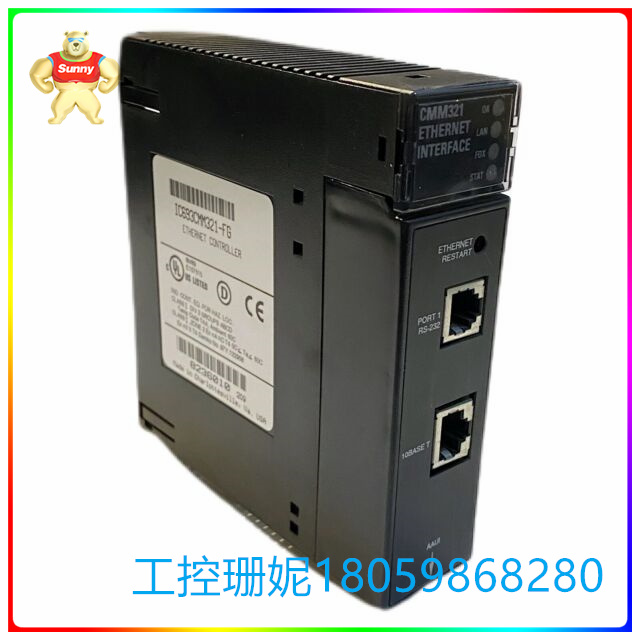

IC693CMM321-GH 以太网接口模块 可编程逻辑控制器

型号:IC693CMM321-GH以太网接口模块可编程逻辑控制器【产品详情】IC693CMM321是一个以太网接口模块,是90-30系列可编程逻辑控制器(PLC

联系人:Sunny

手机:18059884797

QQ:3095989363

邮箱:xiongbagk@gmail.com

产品详情

型号:IC693CMM321-GH 以太网接口模块 可编程逻辑控制器







【产品详情】





IC693CMM321 是一个以太网接口模块,是 90-30 系列可编程逻辑控制器 (PLC) 平台的一部分。该模块由 GE Fanuc automation 制造,主要用于将 90-30 系列底板直接连接到现有以太网网络,以实现分布式 I/O 或允许 CPU 和通信适配器与远程站、人机界面 (HMI)、监控和数据采集 (SCADA) 以及分布式控制系统 (DCS) 进行通信。


IC693CMM321具有各种通信功能,可以执行不同的任务。该模块具有一 (1) 个 RS-232、RJ-11 串行端口作为工作站管理器端口、一 (1) 个 RS-485、15 针、D 型串行端口用作软件加载器端口和一 (1) 个 AAUI 端口,用作网络端口,用于将模块连接到以太网。该模块还配有 LED 指示灯,允许用户监控每个端口的运行情况和模块状态概览。这些指示灯分别表示 OK、LAN、SER 和 STAT。 LED 指示灯分别表示接口处于 in 状态、收发器端口和下载器端口上的现有流量以及是否存在异常事件。


该IC693CMM321理想地与 CPU 版本 6.50 或更高版本一起使用,以实现全部功能。它仍可用于 CPU 版本 5.03 至 6.04,但是,以太网操作仅限于一 (1) 个 SRTP 服务器连接。对于配置,可以使用各种编程软件,例如 Logicmaster 90-30 版本 6.01 或更高版本、Control 版本 2.01 或更高版本或 VersaPro 版本 1.0 或更高版本。所有这些软件应用程序都安装在计算机上。


GE Fanuc 90-30系列IC693CMM321以太网接口TCP/IP模块可以诊断和维护PLC系统,启动从PLC到其他设备的数据传输,并同时与多个设备通信,并支持多达16个服务器连接。这些以太网接口TCP/IP模块中的1个或2个可以一次安装在任何类型的GE系列90-30基板上,但这些模块与GE系列90-30/20/Micro产品线的手持式编程器不兼容。IC693CMM321 以太网接口模块有 2 个端口和 4 个 LED 指示灯。端口是 Station Manager 端口和固件升级端口,LED 是 OK LED、LAN LED、SER LED 和 STAT LED。




型号:IC693CMM321-GH 以太网接口模块 可编程逻辑控制器






英文介绍





The IC693CMM321 is an Ethernet interface module that is part of the 90-30 series Programmable Logic Controller (PLC) platform. Manufactured by GE Fanuc automation, the module is primarily used to connect the 90-30 series baseboards directly to existing Ethernet networks. To enable distributed I/O or to allow cpus and communication adapters to communicate with remote stations, human machine interfaces (HMI), supervisory control and data acquisition (SCADA), and distributed control systems (DCS).


The IC693CMM321 has a variety of communication capabilities and can perform different tasks. The module has one (1) RS-232, RJ-11 serial port as a workstation manager port, one (1) RS-485, 15-pin, Type D serial port as a software loader port, and one (1) AAUI port as a network port for connecting the module to Ethernet. The module is also equipped with LED indicators that allow users to monitor the operation of each port and an overview of module status. These indicators indicate OK, LAN, SER, and STAT. The LED indicator indicates that the interface is in, the existing traffic on the transceiver port and the downloader port, respectively, and whether there are abnormal events.


The IC693CMM321 is ideal for use with CPU version 6.50 or later for full functionality. It is still available for CPU versions 5.03 through 6.04, however, Ethernet operation is limited to one (1) SRTP server connection. For configuration, various programming software can be used, such as Logicmaster 90-30 version 6.01 or later, Control version 2.01 or later, or VersaPro version 1.0 or later. All of these software applications are installed on the computer.


GE Fanuc 90-30 Series IC693CMM321 Ethernet interface TCP/IP modules can diagnose and maintain PLC systems, initiate data transfer from PLC to other devices, communicate with multiple devices simultaneously, and support up to 16 server connections. One or two of these Ethernet interface TCP/IP modules can be installed on any type of GE Series 90-30 substrate at a time, but these modules are not compatible with handheld programmers for the GE Series 90-30/20/Micro product line. The IC693CMM321 Ethernet interface module has two ports and four LED indicators. The ports are Station Manager ports and firmware upgrade ports, and the leds are OK LED, LAN LED, SER LED, and STAT LED.




型号:IC693CMM321-GH 以太网接口模块 可编程逻辑控制器
