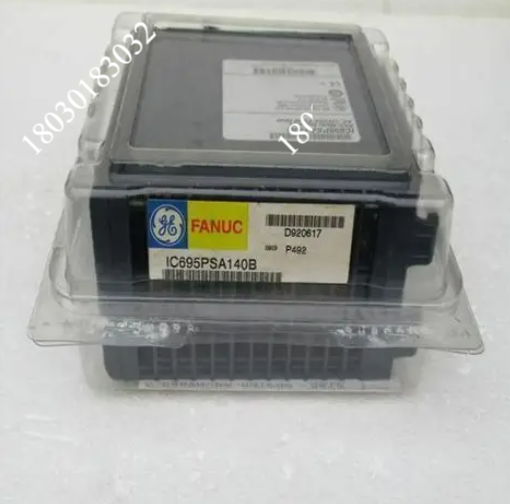

IC695PSA140B
IC695PSA140B

IC695PSA140B 125伏直流40瓦电源

型号:IC695PSA140B125伏直流40瓦电源【产品详情】该IC695PSA140是GEFanucRX3i系列的多用途120/240伏交流或125伏直流4

联系人:Sunny

手机:18059884797

QQ:3095989363

邮箱:xiongbagk@gmail.com

产品详情

型号:IC695PSA140B 125伏直流40瓦电源







【产品详情】





该IC695PSA140是GE Fanuc RX3i系列的多用途120/240伏交流或125伏直流40瓦电源。在 IC695PSA140 的网站上查看本机的规格 web网站页面。


技术规格

额定电压: 120/240 VAC 或 125 VDC

输入电压范围: 85 至 264 VAC 或 100 至 300 VDC

输入功率: 70 W(带 VDC)

负载能力: 40 瓦

模块类型: 通用底座电源

背板支持: 仅限通用背板







IC695PSA140电源模块是属于GE Fanuc RX3i PACSystems系列产品的直流电源模块。它是一种多用途电源,输出功率为 40 瓦。推荐的电压范围为 85 至 264 伏交流电或 100 至 300 伏直流电。IC695PSA140 电源模块占用 2 个背板插槽。它有 4 个 LED,用于指示电源、P/S 故障、过热和过载情况。电源前面的门后面有一个开/关开关,用于控制输出的操作。该模块具有用于电源、接地和 MOV 连接的接线端子。每个模块的端子都可以接受一根 14 至 22 AWG 规格的电线。




IC695PSA140电源可提供 3 种输出电压,分别为 5.1 伏直流输出、24 伏直流继电器输出和 3.3 伏直流输出。模块的标称额定电压为 120/240 伏交流电或 125 伏直流电。所有输出的额定纹波和噪声均为 150 毫伏。如果电源中断,此电源将输出保持 20 毫秒。它一次最多接受 4 个菊花链电源。如果IC695PSA140电源发生内部故障,CPU可以通过故障代码检测到错误。通用背板最多可容纳 4 个电源。其 5.1 伏直流输出具有 7 安培的电子电流限制,其 3.3 伏直流输出具有 10 安培的电流限制,可提供过流保护。该模块可用于冗余和负载共享应用。




型号:IC695PSA140B 125伏直流40瓦电源




英文介绍





The IC695PSA140 is a versatile 120/240 volt AC or 125 volt DC 40 watt power supply for the GE Fanuc RX3i series. Check the specifications web page for this unit on the IC695PSA140's website.


Technical specification

Rated voltage: 120/240 VAC or 125 VDC

Input voltage range: 85 to 264 VAC or 100 to 300 VDC

Input power: 70 W (with VDC)

Load capacity: 40 watts

Module type: Universal base power supply

Backplane support: Only the universal backplane is available





The IC695PSA140 power module is a DC power module belonging to GE Fanuc RX3i PACSystems series. It is a versatile power supply with an output of 40 watts. The recommended voltage range is 85 to 264 volts AC or 100 to 300 volts DC. The IC695PSA140 power module occupies two backplane slots. It has 4 leds to indicate power supply, P/S failure, overheating and overload conditions. There is an on/off switch behind the front door of the power supply to control the operation of the output. The module has terminals for power, ground and MOV connections. The terminals of each module can accept a wire of 14 to 22 AWG specification.



The IC695PSA140 power supply offers three output voltages, 5.1 volts DC output, 24 volts DC relay output, and 3.3 volts DC output. The nominal rated voltage of the module is 120/240 volts AC or 125 volts DC. All outputs are rated for ripple and noise of 150 millivolts. If the power supply is interrupted, this power supply will hold the output for 20 milliseconds. It accepts up to 4 Daisy chain power supplies at a time. If the IC695PSA140 power supply has an internal failure, the CPU can detect the error through the fault code. The universal backplane can accommodate up to 4 power supplies. Its 5.1 volt DC output has an electronic current limit of 7 amps, and its 3.3 volt DC output has a current limit of 10 amps, providing overcurrent protection. The module can be used for redundancy and load sharing applications.




型号:IC695PSA140B 125伏直流40瓦电源
