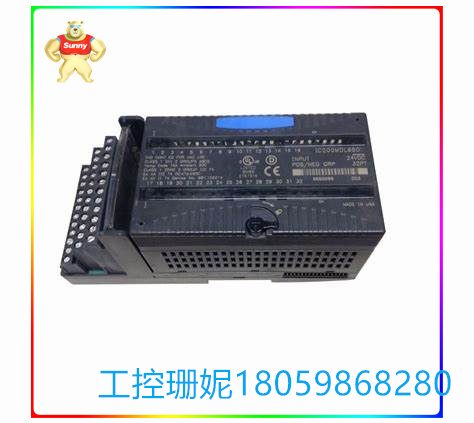

IC200MDL740B
IC200MDL740B

IC200MDL740B 输出模块 支持离散数字信号

型号:IC200MDL740B输出模块支持离散数字信号【产品详情】该IC200MDL740是通用电气智能平台控制系统解决方案公司制造的VersaMax系列的输出

联系人:Sunny

手机:18059884797

QQ:3095989363

邮箱:xiongbagk@gmail.com

产品详情

型号:IC200MDL740B 输出模块 支持离散数字信号







【产品详情】





该IC200MDL740是通用电气智能平台控制系统解决方案公司制造的 VersaMax 系列的输出模块。 该模块总共有一组 16 个输出点,每个输出点都支持离散数字信号。该器件的输出点可以是正逻辑类型,也可以是源极类型。每个输出点执行负载切换并为负载供电。本产品与IC200CHS系列插入继电器底座兼容。





该器件需要辅助电源来支持输出负载切换。五伏输出电源消耗的电流量不能超过 45 毫安。该模块的工作电压为 10.2 至 30 伏直流电 (DC)。虽然该设备的标称电压为 24 伏直流电,但它也可以在 12 伏直流电下工作;但是,在 12 伏直流电下运行将需要升级到 IC200MDL740B 或更高版本。





每个输出点的电流为 0.5 安培,“开启”状态的响应时间为 0.2 毫秒,“关闭”状态的响应时间为 1.0 毫秒。不支持通道间隔离,也不支持任何保护机制,如内部保险丝。输出电压降峰值为 0.3 V,当工作在 30 V DC 时,输出泄漏高达 0.5 毫安。LED 灯指示设备状态。这些 LED 灯需要现场电源才能运行,但不受输出负载条件的影响。该IC200MDL740还支持在 24 或 30 伏直流电下运行时的热降额。




型号:IC200MDL740B 输出模块 支持离散数字信号






英文介绍





The IC200MDL740 is the output module of the VersaMax family manufactured by GE Intelligent Platform Control System Solutions. The module has a total set of 16 output points, each of which supports discrete digital signals. The output point of the device can be a positive logic type or a source type. Each output point performs load switching and powers the load. This product is compatible with the IC200CHS series plug-in relay base.




The device requires an auxiliary power supply to support output load switching. The current consumption of the five-volt output power supply cannot exceed 45 MA. The module operates at 10.2 to 30 volts direct current (DC). Although the device has a nominal voltage of 24 volts DC, it can also operate on 12 volts DC; However, operating on 12 volts DC will require an upgrade to IC200MDL740B or later.




The current at each output point is 0.5 amps, and the response time is 0.2 ms for the "on" state and 1.0 ms for the "off" state. Isolation between channels is not supported, nor is any protection mechanism such as internal fuses supported. The output voltage drop peaks at 0.3V, with output leakage up to 0.5mA when operating at 30V DC. LED lights indicate device status. These LED lights require field power to operate, but are not affected by output load conditions. The IC200MDL740 also supports heat derating when operating at 24 or 30 volts DC.




型号:IC200MDL740B 输出模块 支持离散数字信号
