IC200PWR102J 电源模块 扩展电源模块

☆型号：IC200PWR102J 电源模块  扩展电源模块

【产品详情】

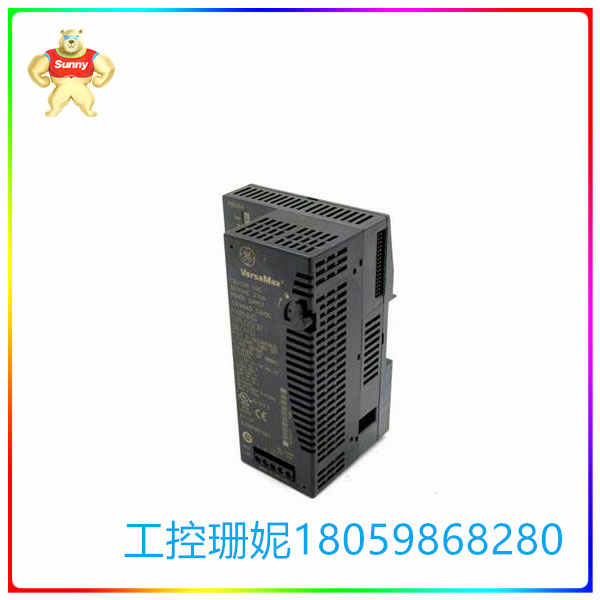

IC200PWR102 是扩展电源模块，是 VersaMax 产品系列的一部分。该模块目前由艾默生自动化制造，前身为 GE 智能平台 （GE IP）。它主要用于向 VersaMax 背板供电，安装的模块利用背板为各个内部电路供电以进行操作。

当连接到提供 85-132 VAC（120 VAC，标称）和 176 - 264 VAC（240 VAC，标称）、47-63 Hz 输入频率范围和 27 VA 输入功率的外部电源时，该IC200PWR102可运行。该电源提供 5 VDC 和 3.3 VDC 的输出电压和 1.0 Amp3.3 VDC 时的输出电流和 1.5 VDC 时的 1.5 Amperes 但是，模块的输出电流不得超过 1.5 Amperes 的总最大输出电流。

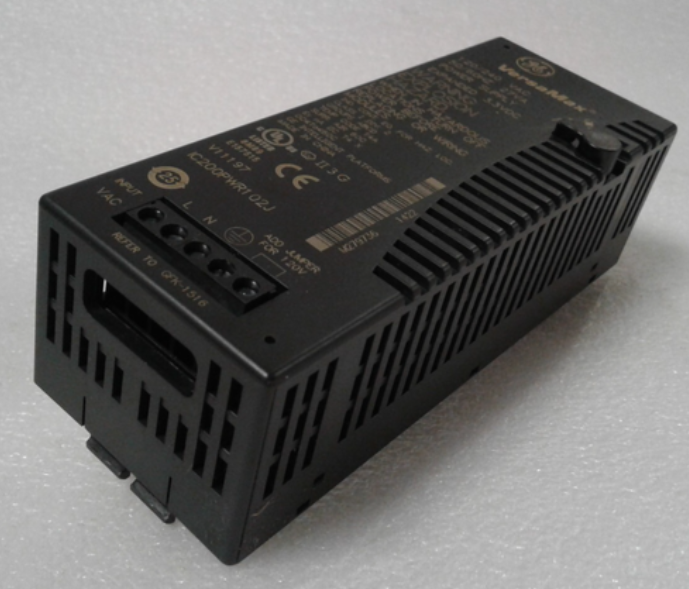

IC200PWR102输入电压选择通过在位于接地端子右侧的两 （2） 个端子上安装跳线来配置。安装跳线后，模块接受 120 VAC 标称电压，否则，在不安装跳线的情况下，模块的额定电压为 240 VAC，标称值。

IC200PWR102 是与 VersaMax 输入和输出模块、网络接口单元 （NIU） 和智能模块和中央处理器 （CPU） 一起使用的电源模块。当安装在电源升压器托架上时，该模块也可以用作补充电源模块。对于模块保护，该硬件带有内部安装的短路和过载保护。

☆型号：IC200PWR102J 电源模块  扩展电源模块

【英文介绍】

The IC200PWR102 is an expansion power module that is part of the VersaMax product family. The module is currently manufactured by Emerson Automation, formerly known as GE Intelligence Platform (GE IP). It is primarily used to power the VersaMax backplane, which the installed module uses to power various internal circuits for operation.

The IC200PWR102 operates when connected to an external power supply providing 85-132 VAC (120 VAC, nominal) and 176-264 VAC (240 VAC, nominal), 47-63 Hz input frequency range, and 27 VA input power. The power supply provides output voltages of 5 VDC and 3.3 VDC and output currents of 1.0 Amp3.3 VDC and 1.5 Amperes at 1.5 VDC. However, the output current of the module must not exceed the total maximum output current of 1.5 Amperes.

The IC200PWR102 input voltage selection is configured by installing jumpers on the two (2) terminals located to the right of the ground terminal. After the jumper is installed, the module accepts a nominal voltage of 120 VAC, otherwise, without the jumper installed, the module is rated at 240 VAC, the nominal value.

The IC200PWR102 is a power module used with VersaMax input and output modules, network interface units (NIU) and intelligent modules and central processing unit (CPU). When mounted on a power booster bracket, the module can also be used as a supplementary power module. For module protection, the hardware comes with built-in short circuit and overload protection.
