IC754VS112CTD-HH 操作面板 提供的监视器

☆型号：IC754VS112CTD-HH 操作面板 提供的监视器

【产品详情】

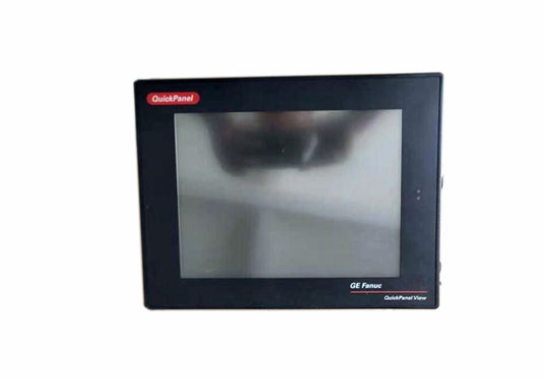

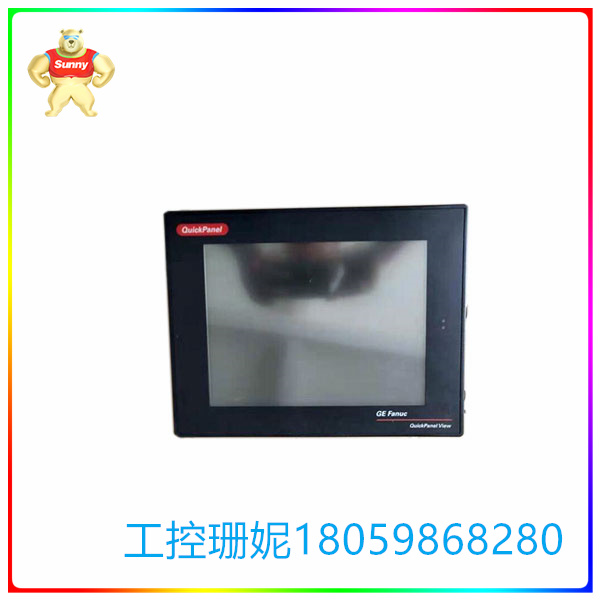

IC754VSI12CTD是通用电气 （GE） Fanuc Automation 制造的操作面板。此操作面板是 QuickPanel 人机界面 （HMI） 设备的一部分。该HMI设备预装了Microsoft Windows Compact Embedded（CE）操作系统，该操作系统提供了任何操作员或用户都熟悉的配置和维护界面。它不仅提供了用户友好的环境，还提供标准的 Microsoft Windows 命令和功能，例如文件传输协议、Pocket Internet Explorer、远程访问和远程浏览、PDF 查看器等命令。

该IC754VSI12CTD允许任何操作员或用户通过提供的监视器、触摸输入接口和通信接口监视或控制连接的机器或过程。为了监控系统，提供的 12 英寸彩色薄膜晶体管 （TFT） 显示屏能够通过定制设计的模拟提供过程的可视化。此外，彩色显示屏支持实现彩色编码动画和状态显示，以提高信息水平。控制命令通过触摸感应屏幕输入，允许操作员通过触摸相应的运行时图标或对象直接输入命令。与控制器的通信是使用单个 RS232 / RS485 组合端口在点对点或多点串行拓扑中完成的，而联网和多节点通信是通过以太网通信接口完成的，该接口支持 10/100 Mbps 的传输速率。 该IC754VSI12CTD由24VDC的外部电压电源供电，功耗小于48W。

此操作面板支持历史数据记录、视图和 Visual Basic（当与 Proficy Machine Edition 5.0 或更高版本一起使用时）。

通用电气IC754VSI12CTD终端重量轻，旨在成为现代接口机器QuickPanel组的一部分。IC754VSI12CTD终端使客户能够通过RS-232/RS-485通信端口和关联的HMI-CAB-C110通信链路使用Proficy View（机器版）编程软件与他们的机器进行连接。用户可以通过触摸屏输入数据和信息。

☆型号：IC754VS112CTD-HH 操作面板 提供的监视器

【英文介绍】

The IC754VSI12CTD is an operating panel manufactured by Fanuc Automation of General Electric (GE). This operation panel is part of the QuickPanel Human Machine Interface (HMI) device. The HMI device comes preloaded with the Microsoft Windows Compact Embedded (CE) operating system, which provides a configuration and maintenance interface familiar to any operator or user. It not only provides a user-friendly environment, but also standard Microsoft Windows commands and features such as File Transfer Protocol, Pocket Internet Explorer, Remote Access and Remote Browsing, PDF viewer and more commands.

The IC754VSI12CTD allows any operator or user to monitor or control the connected machine or process through the provided monitor, touch input interface and communication interface. To monitor the system, the supplied 12-inch color thin-film transistor (TFT) display provides visualization of the process through custom-designed simulations. In addition, the color display supports color-coded animation and status display to improve the level of information. Control commands are entered via a touch-sensitive screen, allowing the operator to enter commands directly by touching the corresponding runtime icon or object. Communication with the controller is done in a point-to-point or multipoint serial topology using a single RS232 / RS485 combination port, while networking and multi-node communication is done via an Ethernet communication interface that supports a transfer rate of 10/100 Mbps. The IC754VSI12CTD is powered by an external voltage supply of 24VDC and consumes less than 48W.

This action panel supports historical data logging, views, and Visual Basic (when used with Proficy Machine Edition 5.0 or later).

The GE IC754VSI12CTD terminal is lightweight and designed to be part of the QuickPanel group of modern interface machines. The IC754VSI12CTD terminal enables customers to connect with their machines using Proficy View (Machine Edition) programming software via the RS-232/RS-485 communication port and the associated HMI-CAB-C110 communication link. Users can enter data and information through the touch screen.

☆型号：IC754VS112CTD-HH 操作面板 提供的监视器
