201TI 在线预警发射器 圆柱体机壳

☆型号：201TI 在线预警发射器 圆柱体机壳

【产品详情】

Hydran 201Ti 是一款小型在线预警发射器。它永久安装在变压器上，将为人员提供各种故障气体复合值的单一读数（以 ppm 为单位），以提醒他们注意潜在问题。

可以下载该值，并将警报设置在预定级别，以提醒人员并监控正在发生的故障情况。

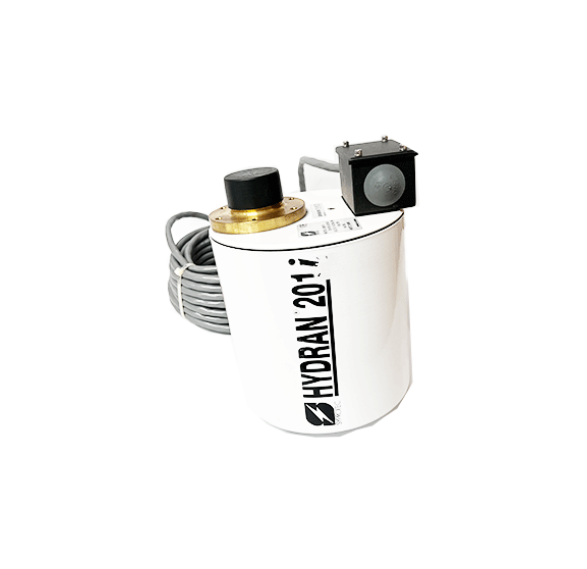

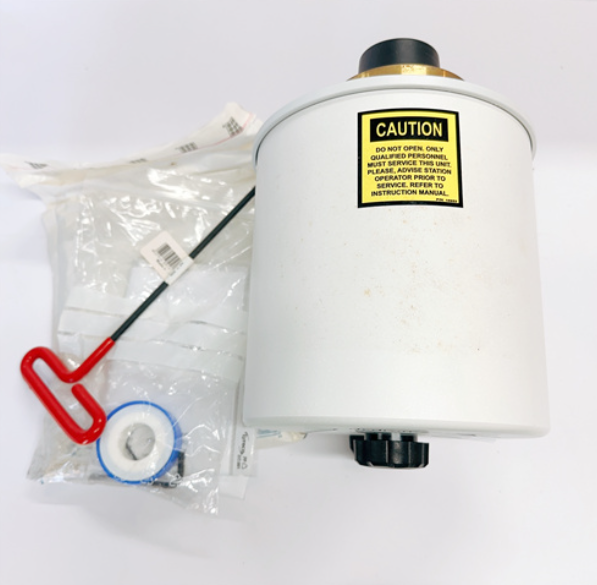

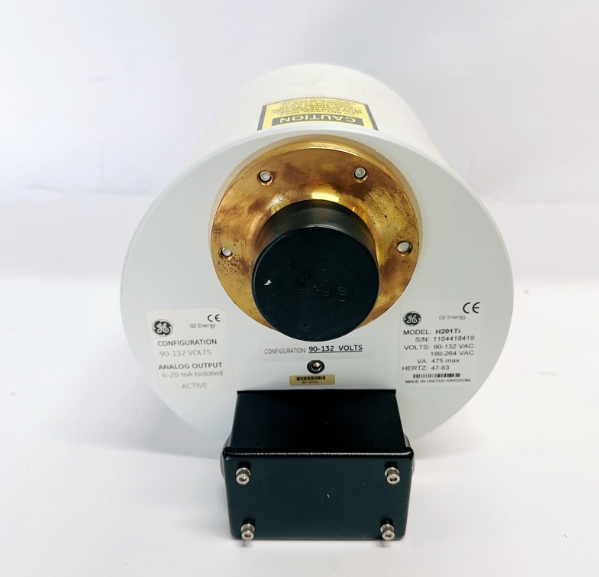

H201Ti智能式传输器有小圆柱体机壳，通过 黄铜配接器直接与变压器的溶解气体监测阀配接。

H201Ti包括一个标准的HYDRAN®传感器，热调节系统和以微处理器为基础的电传输器。 接线端便于连接交流电源，报警触点（气体高，气体高-高和系统故障）及监管联接，还有一个模拟0-1mA的非隔离输出。也可选购4-20mA的隔离输出。还提供了电脑界面的RS-232连接器。

配有薄膜键盘和液晶显示，无须外部电脑也能使用。

☆型号：201TI 在线预警发射器 圆柱体机壳

【英文介绍】

Hydran 201Ti is a small online warning transmitter. It is permanently installed on the transformer and will provide personnel with a single reading (in ppm) of the various faulty gas complex values to alert them to potential problems.

This value can be downloaded and alerts set at a predetermined level to alert people and monitor ongoing failure situations.

The H201Ti intelligent transmitter has a small cylindrical housing and is connected directly to the dissolved gas monitoring valve of the transformer via a brass adapter.

The H201Ti includes a standard HYDRAN® sensor, thermal conditioning system and microprocessor-based electrical transmitter. Terminals facilitate AC power connections, alarm contacts (high gas, high gas and system failure) and supervisory connections, and an analog 0-1mA non-isolated output. Isolated output 4-20mA is also available. An RS-232 connector for a computer interface is also provided.

Equipped with a thin film keyboard and LCD display, it can be used without an external computer.

☆型号：201TI 在线预警发射器 圆柱体机壳
