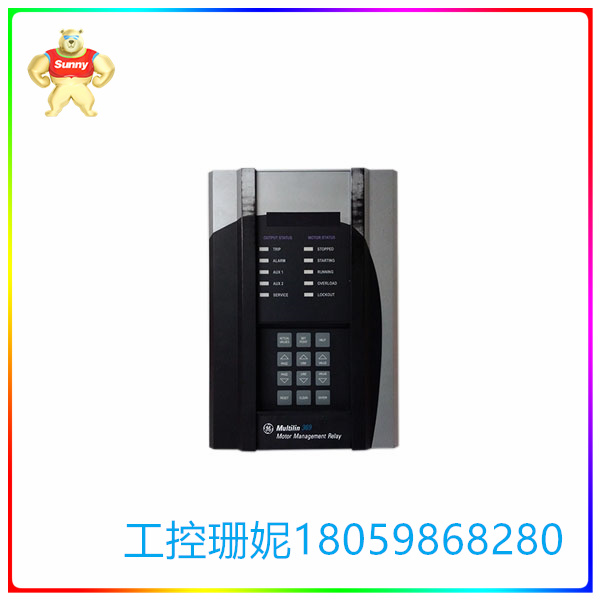

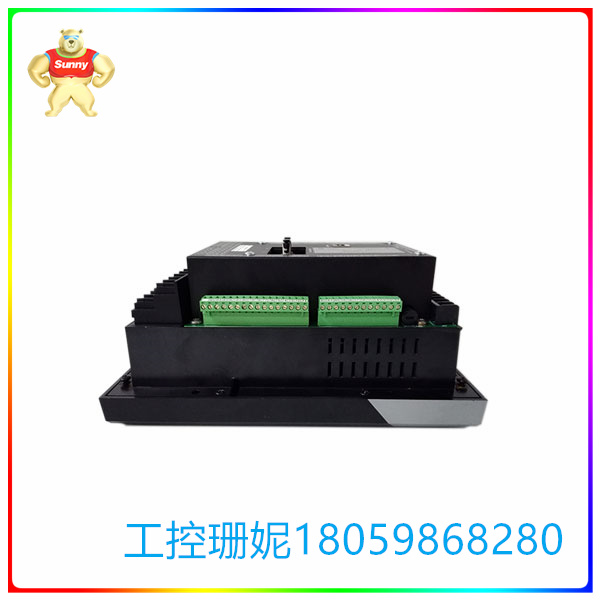

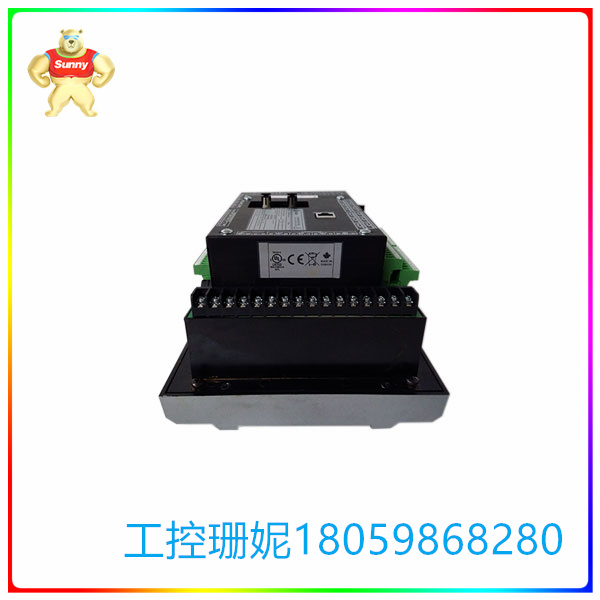

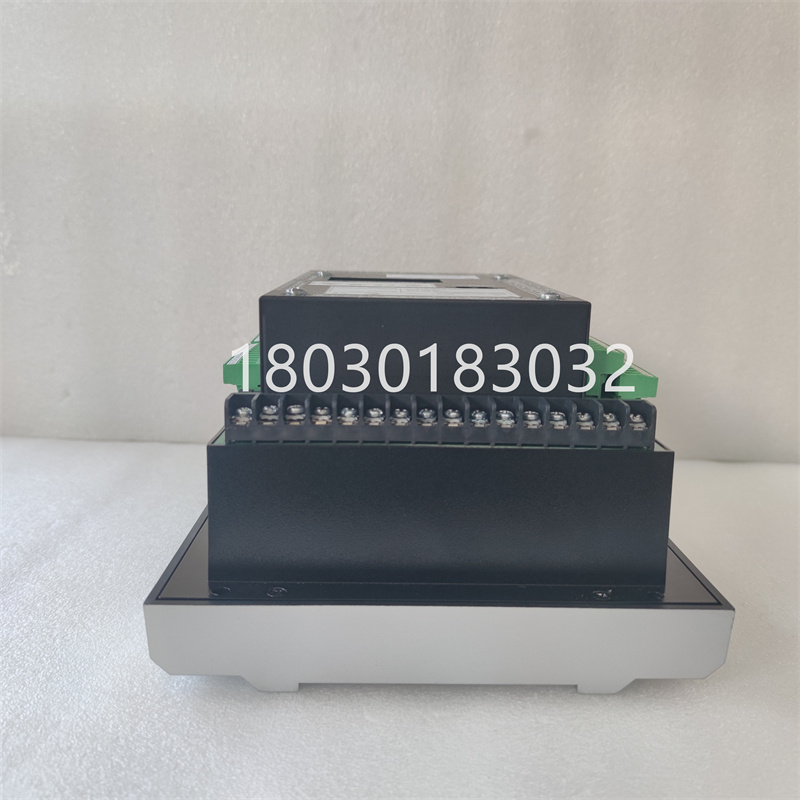

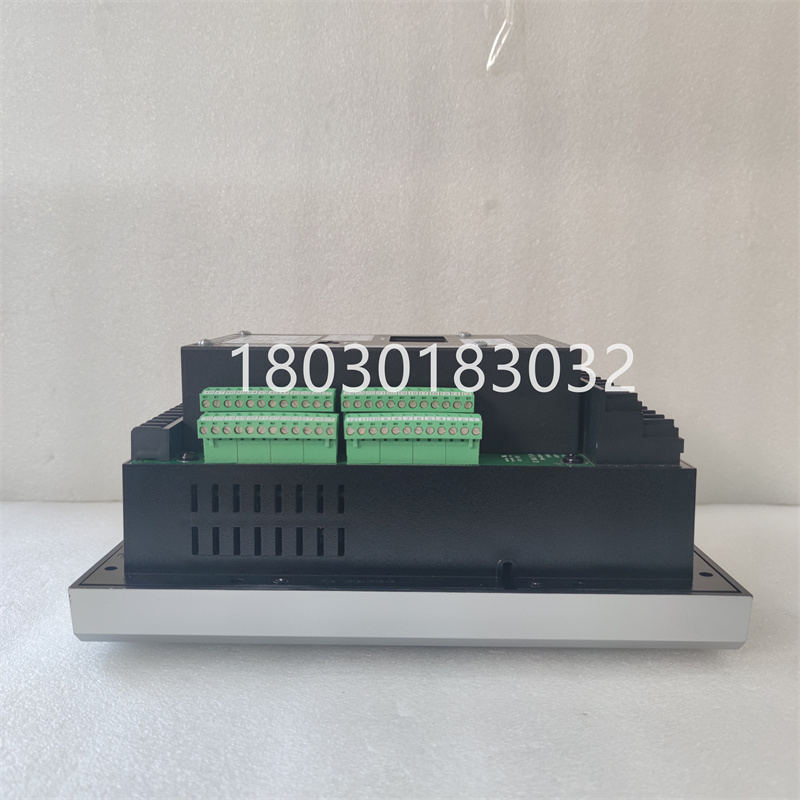

☆型号:369-HI-R-M-0-D-0-E 电机管理继电器 通过跳闸前警报和过扭矩校正
【产品详情】
Multilin 的 369-HI-R-M-0-0-0-E 旨在通过跳闸前警报和过扭矩校正等功能来保护和控制电机及其随附组件。
369-HI-R-M-0-0-0-E技术参数
# 数字/开关输入 6 光隔离
最大环境湿度 高达 95% 的无冷凝
尺寸 大约:11.5 英寸(高)x 5.5 英寸(宽)x 8.5 英寸(长)
显示版本 增强
保险丝 3.15 安培 H 250 V
产品描述
369-HI-R-M-0-0-0-E 是通用电气 Multilin 369 系列电机管理继电器的一部分。这款 369 型号及其升级和配件即将停产,并处于最后购买状态。一些升级,例如作为防腐蚀、高温、灰尘和潮湿保护层的保形涂层,在产品线停产后仍然可以添加。
Multilin 的 369-HI-R-M-0-0-0-E 旨在保护和控制电机及其随附组件。369 通过各种内置功能实现这一点,其中一些功能包括:
计量:369 可以监控电压、瓦特、频率和能量等数量,根据生成的值数据生成保护功能。
活动记录:在跳闸后,369 能够立即报告跳闸原因,以及跳闸时的温度和数据值,使用户能够分析系统中出现的问题。
出行前警报:当由接地故障、机械堵塞、RTD 过热等原因引起时,369 可以在跳闸前通知用户。
电机健康报告:继电器可以使用学习到的信息和系统跳闸的历史记录来确定何时何地可能需要维护。
振荡图:跳闸时触发三个波形记录,并捕获 16 个数据周期。在此过程中,都会捕获相电流和接地电流以及触点输入状态。
369-HI-R-M-0-0-0-E 继电器生成的大量数据和采用的保护功能有助于减少故障排除时间并延长系统寿命,使其成为中型电机的绝佳选择。
☆型号:369-HI-R-M-0-D-0-E 电机管理继电器 通过跳闸前警报和过扭矩校正
【英文介绍】
Multilin's 369-HI-R-M-0-0-0-E is designed to protect and control the motor and its accompanying components with features such as pre-trip alarm and over-torque correction.
369-HI-R-M-0-0-0-E Technical specifications
# Digital/switch input 6 optical isolation
Non-condensing with maximum ambient humidity up to 95%
Approximate dimensions: 11.5 inches (H) x 5.5 inches (W) x 8.5 inches (L)
Display version enhancement
Fuse 3.15 amp H 250 V
Product description
The 369-HI-R-M-0-0-0-E is part of the General Electric Multilin 369 series of motor management relays. The 369 model and its upgrades and accessories are about to be discontinued and are in final purchase condition. Some upgrades, such as conformal coatings that act as protection against corrosion, heat, dust and moisture, can still be added after the product line is discontinued.
Multilin's 369-HI-R-M-0-0-0-E is designed to protect and control the motor and its accompanying components. 369 does this through a variety of built-in features, some of which include:
Metering: The 369 can monitor quantities such as voltage, watt, frequency and energy, and generate protection functions based on the generated value data.
Activity logging: Immediately after tripping, the 369 can report the cause of tripping, as well as the temperature and data values at the time of tripping, enabling users to analyze problems occurring in the system.
Pre-trip alert: When caused by ground failure, mechanical blockage, RTD overheating, etc., the 369 can notify the user before tripping.
Motor health reports: Relays can use learned information and a history of system trips to determine when and where maintenance may be needed.
Oscillogram: Three waveform records are triggered when tripping and 16 data cycles are captured. During this process, both the phase and ground currents and the contact input state are captured.
The large amount of data generated by the 369-HI-R-M-0-0-0-E relay and the protection features employed help reduce troubleshooting time and extend system life, making it an excellent choice for medium-sized motors.
