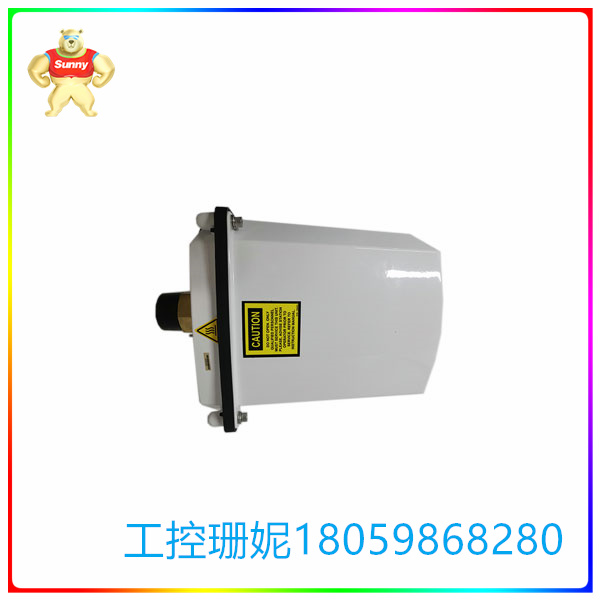

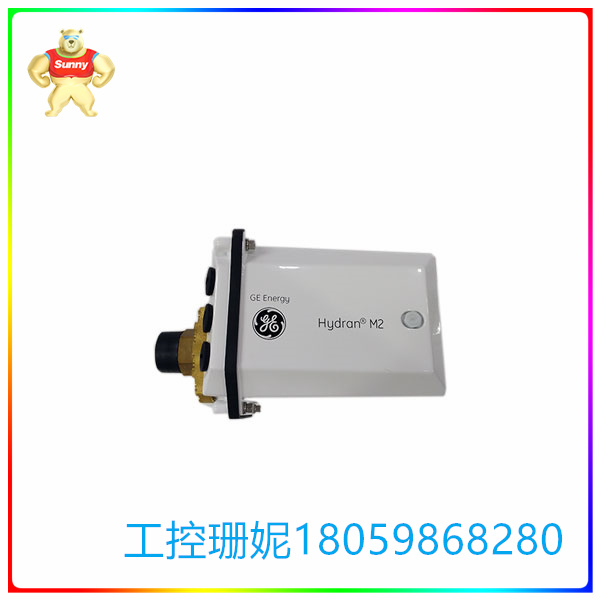

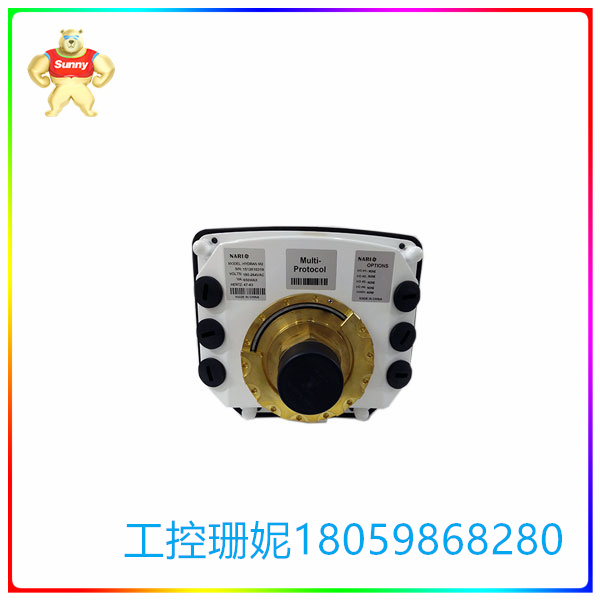

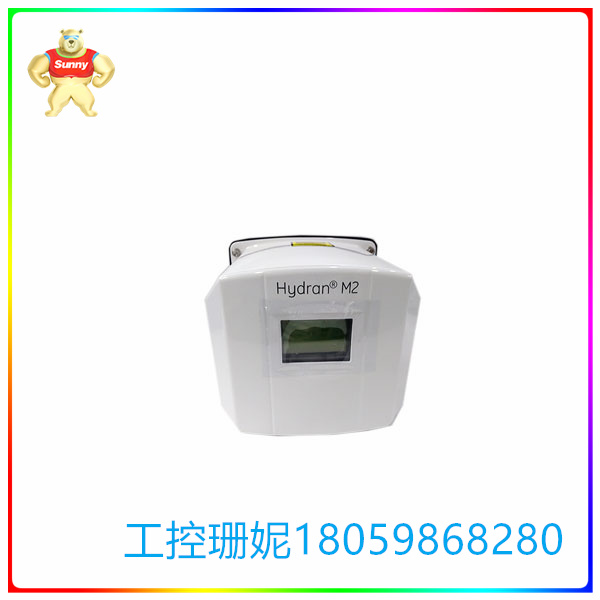

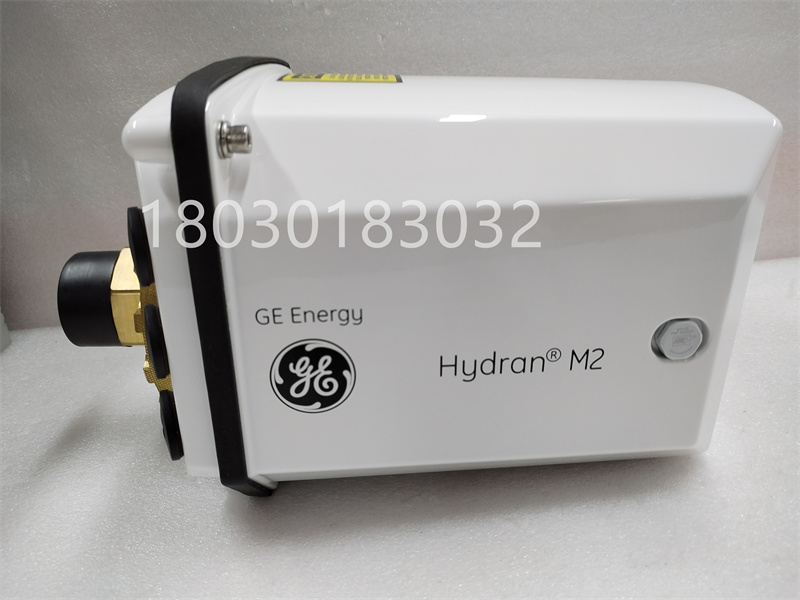

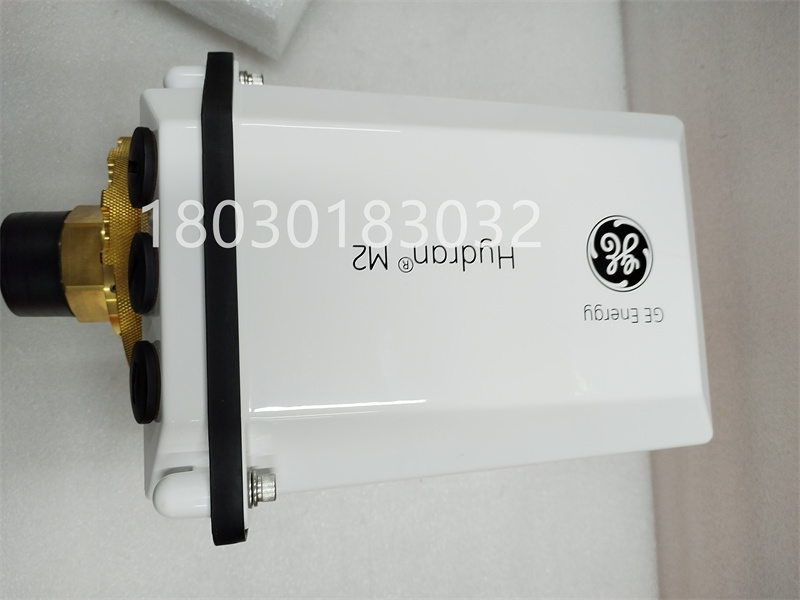

☆型号:HYDRAN M2 变压器油中气体及微水在线监测系统
【产品详情】
Hydran M2 是一款紧凑型永久安装的在线变压器监控设备,可提醒人员注意故障情况的发展。它持续监测各种故障气体的复合值(以ppm为单位)或仅氢气值(取决于购买的传感器)。此外,它还可以跟踪油中的水分(以 %RH 和 ppm 为单位)。
通过添加额外的传感器,Hydran M2 还可以计算基于 IEEE® 和 IEC® 标准的变压器数学模型,以提供有关变压器性能的更多信息。
好处
一般规格 |
基于已经现场验证的技术,新的Hydran M2增加 了基于IEEE®和IEC®标准的变压器数学模型,从 而可以提供实时的变压器概况信息。这样就不仅 仅是只监控溶解气体和湿度,而是拓展到对变压 器更多故障形式的监控。 当一台重要变压器发生不可预知的故障的时候, 就会对电网的运行和经济性产生严重的影响。当 今,许多电网和工业用户的油浸式变压器都接近 了设计寿命的底线,并且表现出明显的故障率升 高。对电力供应的严格规定,投资和操作费用的 预算的减少,和专业技术人员的短缺都需要延长 这些变压器的使用寿命。 |
描述 |
Hydran M2是经济的,它是功能强大的一体化变 压器监控装置,它允许电网和其他用户部署对众 多变压器的监控,并且会从它先进的特性中得到 收益。 Hydran M2早期故障报警模型通过在线故障气体 和湿度传感器对变压器和其他油浸式设备早期故 障进行监控。附加的数字和模拟量输入允许对变 压器其他变量的监控。新的变压器模型拓展了Hydran M2的监控能力和资产管理能力,这可以 对设备操作和维护人员提供更多的决策帮助。 |
系统特性 |
• 实时油中故障气体和湿度测量系统 • 不允许真空的气体萃取膜 • 单独阀门安装,不需要附加泵和移动部件 • 基于微处理器的智能电子装置 • 全系统自测和自我诊断 • NEMA 4X(IP66) 外壳 • 数字化显示,可翻屏控制 • 4个用于报警的可编程继电器 • 1个自检继电器触点 • 4个扩展I/O 插头接头,需要结合如下板卡 -隔离4-20mA 模拟输入卡 -隔离双通道数字输入卡 -隔离4-20mA 模拟输出卡 • 1个通讯扩展插头接头 -以太网10-100Base T 卡 -模拟调制解调器 • 就地隔离RS-232串行接口 • 远方连接隔离RS-485串行接口 • 支持DNP3规约(串行接口或者TCP/IP) • 扩展的可调整频率数据和事件日志 • 可调整的关于气体,湿度,模拟输入和变压器 模型计算的基于水平和趋势的报警设置 • 友好的客户机/服务器图形化使用者界面 (GUI),允许多客户机通过TCP/IP 接入 |
实时氢气或复合故障气体监测系统
油中水分测量
能够集成其他传感器(负载、油温等)
可选择处理基于IEC/IEEE标准的变压器数学模型
易于安装在单个阀门上。
没有活动部件,没有泵,也不需要额外的管道。
无需现场校准。
本地和远程警报设置在预定义的级别。
特征
氢气传感器对氢气(一般故障气体)100%响应
复合气体传感器对氢气有100%的响应,对二氧化碳(过热的纸张绝缘材料)也很敏感。
可选择多达 4 个输入或输出卡
广泛的通信方法和协议。
RS485输出是标准配置。TCP/IP 铜缆或光纤是可选的
耐真空气体抽取膜。
内置温度调节系统。
全系统自检和自诊断。
记录长达一年的数据和重大事件。
用户友好的客户端/服务器图形用户界面软件。
应用
大中型变压器。
降低故障的风险和/或后果。
输电变压器。
与手动油样相比,有了显著的进步。
☆型号:HYDRAN M2 变压器油中气体及微水在线监测系统
【英文介绍】
The Hydran M2 is a compact, permanently installed online transformer monitoring device that alerts personnel to developing fault situations. It continuously monitors the composite value (in ppm) or only the hydrogen value (depending on the sensor purchased) of various faulty gases. In addition, it can track the moisture in the oil (in %RH and ppm).
By adding additional sensors, the Hydran M2 can also calculate a mathematical model of the transformer based on IEEE® and IEC® standards to provide more information about the transformer's performance.
advantage
Real-time hydrogen or compound fault gas monitoring system
Measurement of moisture in oil
Ability to integrate other sensors (load, oil temperature, etc.)
Optional processing of transformer mathematical models based on IEC/IEEE standards
Easy to install on a single valve.
There are no moving parts, no pumps, and no additional piping required.
No field calibration required.
Local and remote alerts are set at predefined levels.
trait
Hydrogen sensors are 100% responsive to hydrogen (a common fault gas)
The composite gas sensor has a 100% response to hydrogen and is also sensitive to carbon dioxide (overheated paper insulation).
Choose from up to 4 input or output cards
Extensive communication methods and protocols.
RS485 output is standard. TCP/IP copper or optical fiber is optional
Vacuum gas extraction membrane.
Built-in temperature control system.
System-wide self-test and self-diagnosis.
Record data and major events for up to a year.
User-friendly client/server graphical user interface software.
Apply
Large and medium-sized transformers.
Reduce the risk and/or consequences of failure.
Transmission transformer.
This is a significant improvement over manual oil samples.
