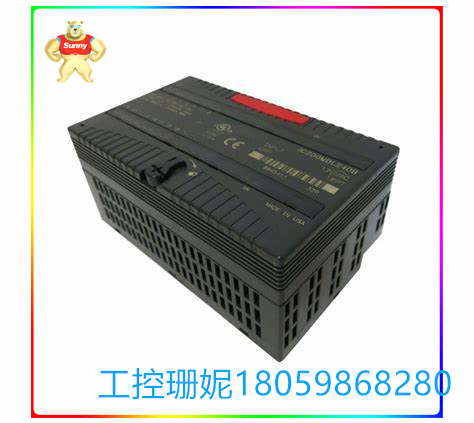

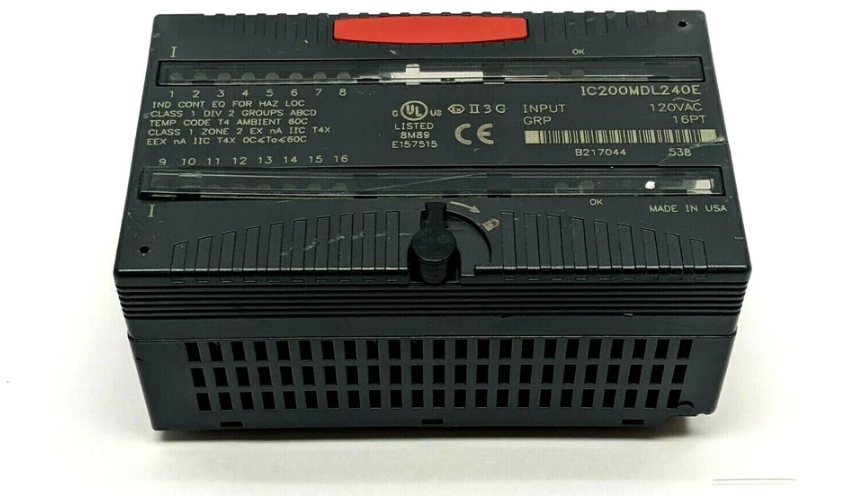

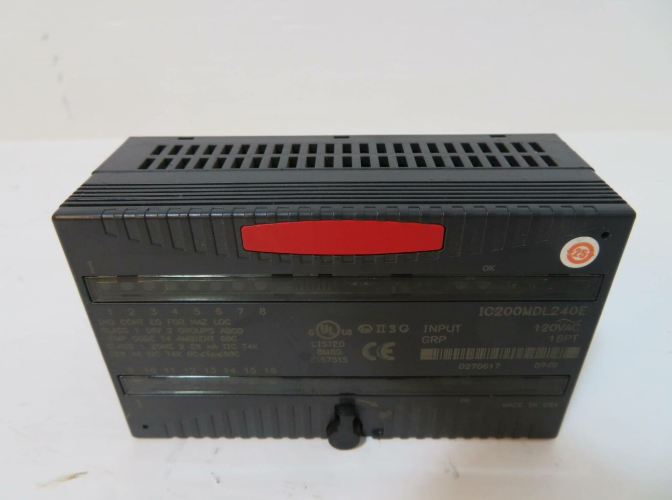

☆型号:IC200MDL240E 16 点离散输入模块 支持正逻辑或源极接线配置
【产品详情】
该IC200MDL240是 VersaMax I/O 系列的 16 点离散输入模块,以前由 GE 智能平台(现隶属于艾默生自动化)使用。该模块具有十六 (16) 个正极或源极输入通道,可接受输入信号电压tage 在 0-132 VAC、47-63 Hz 的信号范围内为 120 VAC,用户输入电流为 7 mA,每点最小值。该模块从背板的 5VDC 输出消耗 110 mA 的电流。
该IC200MDL240是 VersaMax I/O 平台的分立式输入模块,以前由 GE 智能平台生产,现在由艾默生自动化制造。该模块是十六 (16) 点分立输入模块,支持正逻辑或源极接线配置。它可用于连接提供二进制或开/关信号状态的现场和电气设备,例如辅助触点、接近传感器、按钮设备、限位开关和类似设备。
该 16 点模块接受 0-132 VAC、47-63 Hz 的输入信号电压范围,标称信号电压为 120 VAC,最小导通电流为 7 mA。输入通道分为两 (2) 个,每组都有一个专用的公共通道,每个通道由八 (8) 个通道组成。它的组间隔离额定值为 250 VAC(连续)和 1500 VAC(持续 1 分钟)。同样,该模块的光隔离(即用户输入到逻辑隔离)和框架接地隔离均为 1500 VAC(持续 1 分钟)和 250 VAC(连续)。
每个通道的导通响应时间为 1 个周期(最小值),而关断响应时间为 2 毫秒(最小值)。导通状态电压为 70-132 VAC,关闭状态电压范围为 0-40 VAC。此外,导通状态电流最小值为7 mA,而关断状态电流最大值为1.5 mA。
IC200MDL240采用DIN导轨安装,支持水平和垂直方向。当模块垂直安装时,不会出现性能降额,但在 132 VAC 时会出现降额。
☆型号:IC200MDL240E 16 点离散输入模块 支持正逻辑或源极接线配置
【英文介绍】
The IC200MDL240 is a 16-point discrete input module in the VersaMax I/O family, formerly used by GE Intelligence Platforms (now part of Emerson Automation). The module has sixteen (16) positive or source input channels that accept input signal voltages of 120 VAC in a signal range of 0-132 VAC, 47-63 Hz, and user input currents of 7 mA, minimum per point. The module consumes 110 mA of current from the 5VDC output of the backplane.
The IC200MDL240, a discrete input module for the VersaMax I/O platform, was previously manufactured by GE Intelligent Platforms and is now manufactured by Emerson Automation. The module is a sixteen (16) discrete input module that supports either positive logic or source wiring configurations. It can be used to connect field and electrical devices that provide binary or on/off signal states, such as auxiliary contacts, proximity sensors, push button devices, limit switches and similar devices.
The 16-point module accepts input signal voltages ranging from 0-132 VAC to 47-63 Hz, with a nominal signal voltage of 120 VAC and a minimum conduction current of 7 mA. The input channels are divided into two (2), each group has a dedicated public channel, and each channel consists of eight (8) channels. It has inter-group isolation ratings of 250 VAC (continuous) and 1500 VAC (lasting 1 minute). Similarly, the module's optical isolation (i.e. user input to logical isolation) and frame ground isolation are both 1500 VAC (for 1 minute) and 250 VAC (continuous).
Each channel has a turn-on response time of 1 cycle (minimum) and a turn-off response time of 2 milliseconds (minimum). The on-state voltage is 70-132 VAC and the off state voltage range is 0-40 VAC. In addition, the minimum on-state current is 7 mA, while the maximum on-state current is 1.5 mA.
The IC200MDL240 is mounted with DIN rail and supports horizontal and vertical orientation. Performance derating does not occur when the module is installed vertically, but it does occur at 132 VAC.
